Toyota COROLLA/MATRIX (NAP) — ACCELERATOR LINK

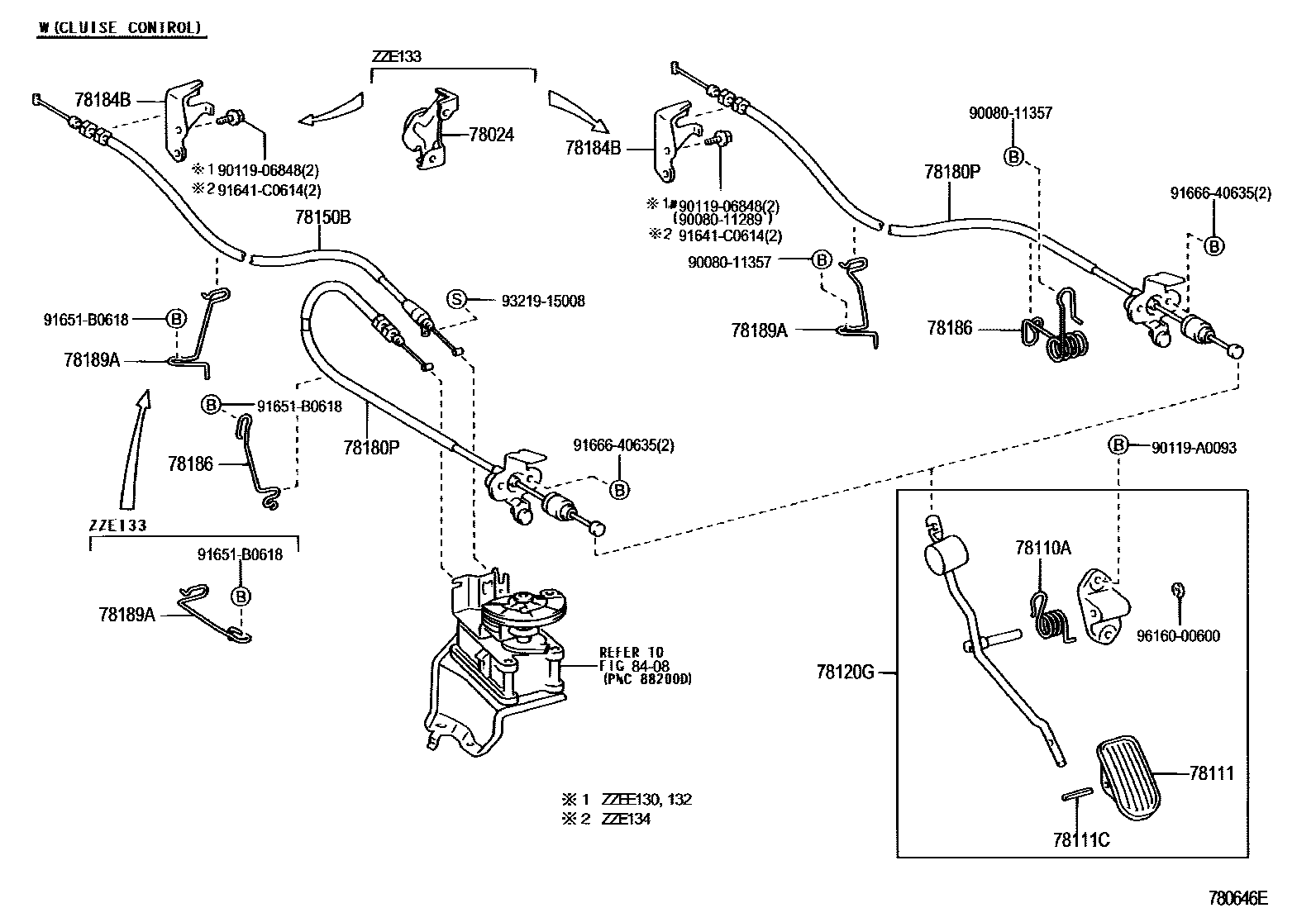

Parts diagram

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-88601i200201-200305

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26036i200201-200405

main90959-03350i200201-200405

W(CRUISE CONTROL)

78111PEDAL, ACCELERATOR

main78111-20060i200405-200607

main78111-35030i200405

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019i200201-200405

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12310i200201-200405

main78120-12330i200405-200607

W(CLUISE CONTROL)

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-01020i200201-200405

main78150-02040i200201-200405

main78150-02060i200405-200607

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-01040i200201-200305

main78180-02280i200201-200405

main78180-02290i200201-200405

W(CRUISE CONTROL)

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12360i200201-200405

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12390i200201-200405

W(CRUISE CONTROL)

main78186-13040i200201-200405

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-12100i200201-200305

main78189-12110i200201-200405

W(CRUISE CONTROL)

main78189-12121i200201-200405

W(CRUISE CONTROL)

main78189-12130i200405-200607

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9008011289

main90080-11289

9008011357

main90080-11357

9011906848

main90119-06848

90119A0093

main90119-A0093

91641C0614

main91641-C0614

91651B0618

main91651-B0618

9166640635

main91666-40635

9321915008

main93219-15008

9616000600

main96160-00600

20 parts on this diagram · 4 diagrams in section

ACCELERATOR LINK for Toyota COROLLA/MATRIX (NAP)

This section contains 21 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA/MATRIX (NAP). Key components include: PEDAL ASSY, ACCELERATOR, BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, PIN (FOR ACCELERATOR PEDAL).
