Toyota COROLLA LEVIN — SPEAKER

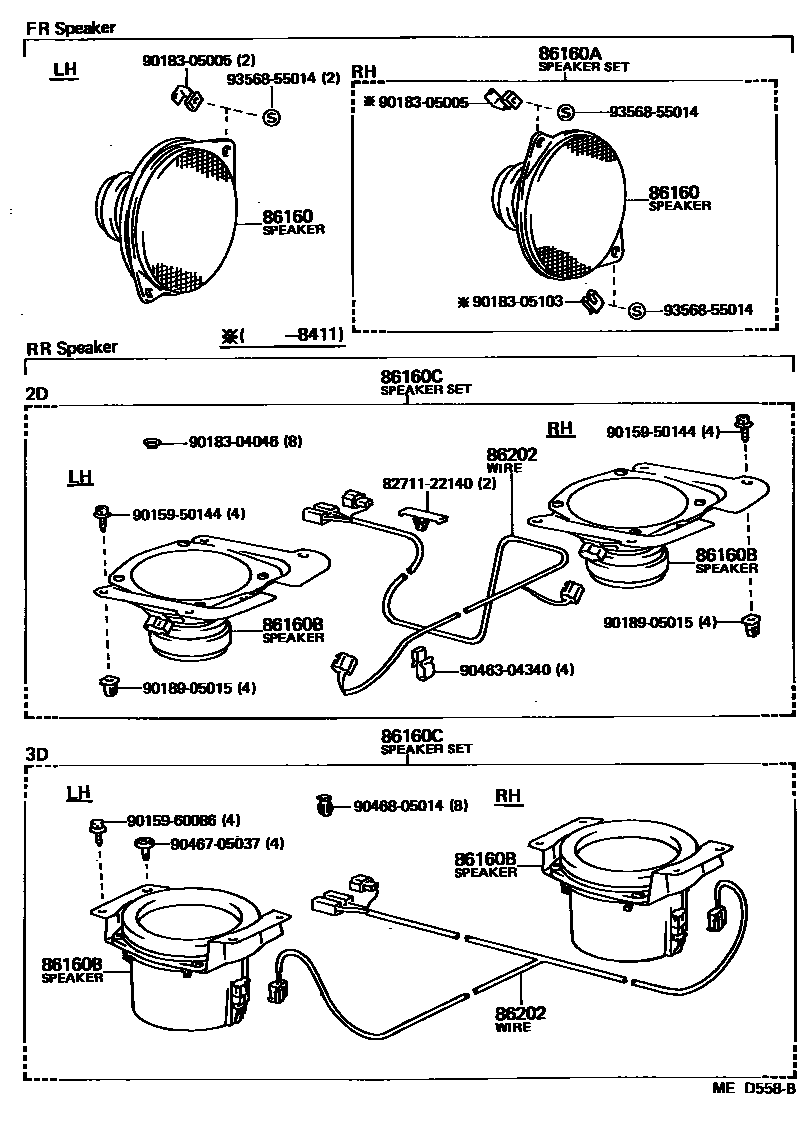

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-12170×2i198305-198602

main86160-12210×2i198602-198704

86160ASPEAKER SET, FRONT

main86160-19665i198305-198704

86160BSPEAKER ASSY, REAR

main86150-12040i198305-198505

RH

main86160-12140×2i198505-198704

main86160-12150i198305-198505

LH

main86160-12160×2i198305-198704

86160CSPEAKER SET, REAR

main86160-19705i198305-198704

main86160-19715i198305-198704

86202WIRE, SPEAKER, NO.1

main86203-12140i198305-198704

main86203-12150i198305-198704

8271122140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22140

9015950144

main90159-50144

9015960086

main90159-60086

9018304046

main90183-04046

9018305005

main90183-05005

9018305103

main90183-05103

9018905015

main90189-05015

9046304340

main90463-04340

9046705037

main90467-05037

9046805014

main90468-05014

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section

SPEAKER for Toyota COROLLA LEVIN

This section contains 16 genuine Toyota parts for the SPEAKER system of the Toyota COROLLA LEVIN. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER SET, FRONT, SPEAKER ASSY, REAR, SPEAKER SET, REAR, WIRE, SPEAKER, NO.1.
