Toyota COROLLA LEVIN — PARTIAL ENGINE ASSEMBLY

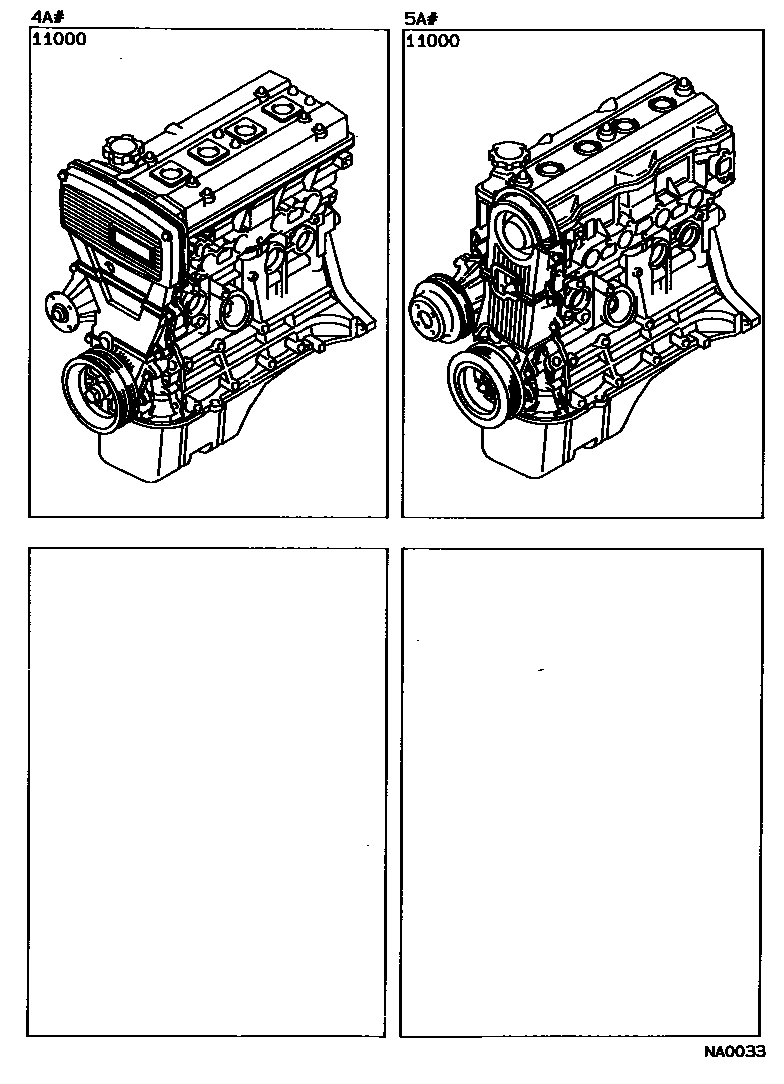

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-15310i198705-198803
sub99364-50830
main19000-15311i198803-198905
sub19000-15312
main19000-15320i198705-198803
sub99364-50830
main19000-15321i198803-198805
main19000-15322i198805-198905
main19000-15340i198905-199106
main19000-15350i198905-199106
main19000-16360i198705-198905
sub19000-16361
main19000-16400i198705-198905
sub19000-16401
main19000-16830i198905-199101
main19000-16831i199101-199106
main19000-16870i198905-199101
main19000-16871i199101-199106

1 parts on this diagram · 1 diagram in section
