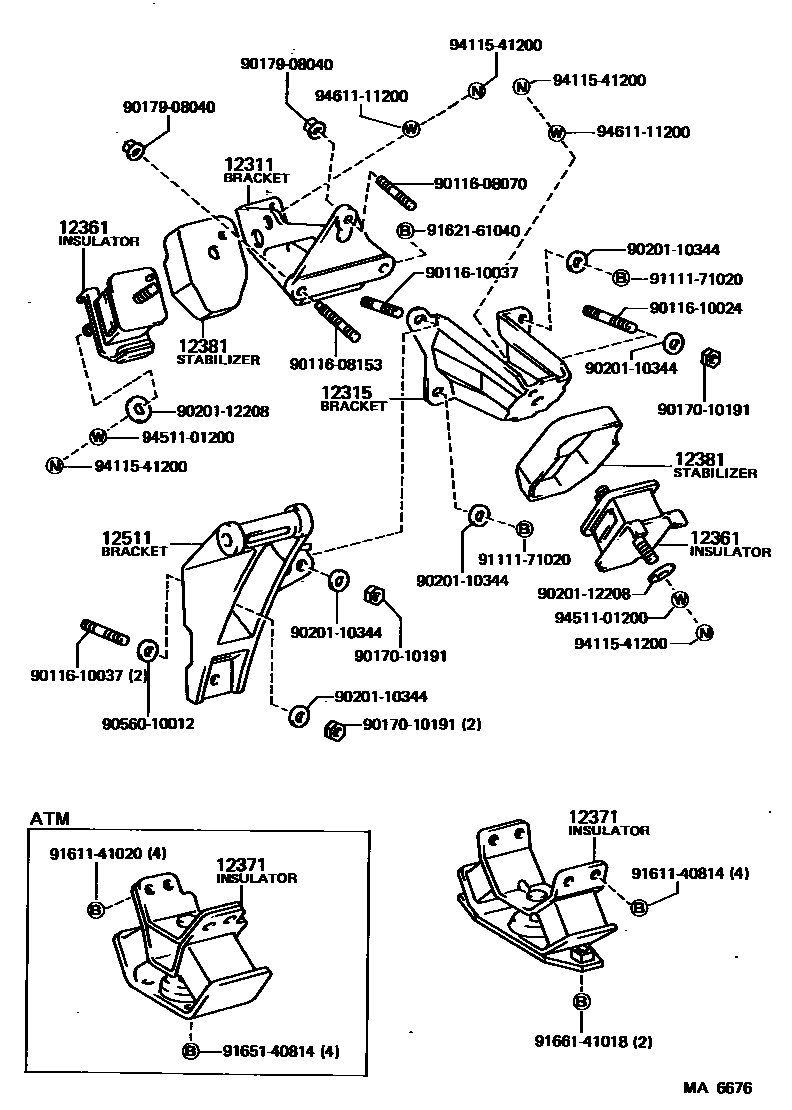

Toyota COROLLA LEVIN — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12361INSULATOR, ENGINE MOUNTING, FRONT
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12381STABILIZER, ENGINE MOUNTING
LH
12511BRACKET, ALTERNATOR, NO.1
9011608070
main90116-08070
9011608153
main90116-08153
9011610024
main90116-10024
9011610037
main90116-10037
9017010191
main90170-10191
9017908040
main90179-08040
9020110344
main90201-10344
9020112208
main90201-12208
9056010012
main90560-10012
9111171020
main91111-71020
9161140814
main91611-40814
9161141020
main91611-41020
9162161040
main91621-61040
9165140814
main91651-40814
9166141018
main91661-41018
9411541200
main94115-41200
9451101200
main94511-01200
9461111200
main94611-11200
24 parts on this diagram · 2 diagrams in section
MOUNTING for Toyota COROLLA LEVIN
This section contains 29 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA LEVIN. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
