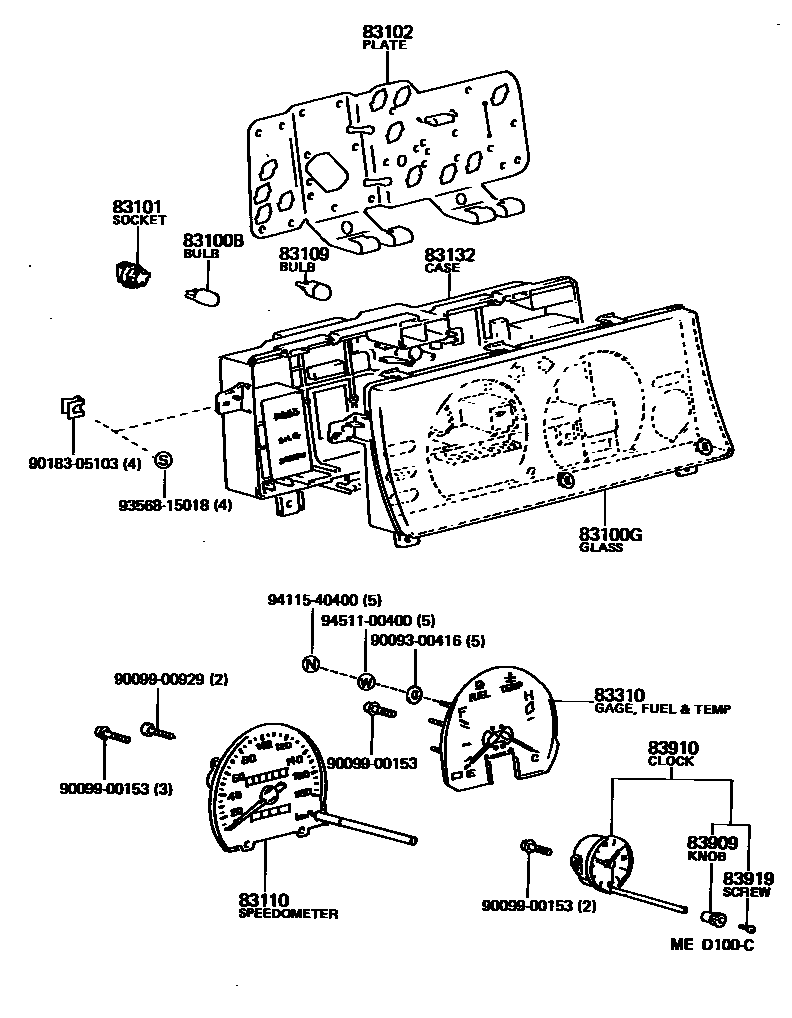

Toyota COROLLA LEVIN — METER
83100BBULB, COMBINATION METER, NO.1
83100GGLASS, COMBINATION METER
*DS
83101SOCKET SUB-ASSY, COMBINATION METER BULB
BULB=12V 3.4W
BULB=12V 1.4W
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
*DS
83109BULB, COMBINATION METER, NO.2
83110SPEEDOMETER ASSY
83132CASE, COMBINATION METER
*DS
W/INDICATOR LENS
W/INDICATOR LENS
W/INDICATOR LENS
83310GAGE ASSY, FUEL RECEIVER
83909KNOB, CLOCK
83910CLOCK ASSY
83919SCREW, CLOCK
9009300416
main90093-00416
9009900153
main90099-00153
9009900929
main90099-00929
9018305103
main90183-05103
9356815018
main93568-15018
9411540400
main94115-40400
9451100400
main94511-00400
18 parts on this diagram · 4 diagrams in section
METER for Toyota COROLLA LEVIN
This section contains 40 genuine Toyota parts for the METER system of the Toyota COROLLA LEVIN. Key components include: BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, BULB, COMBINATION METER, NO.2.
