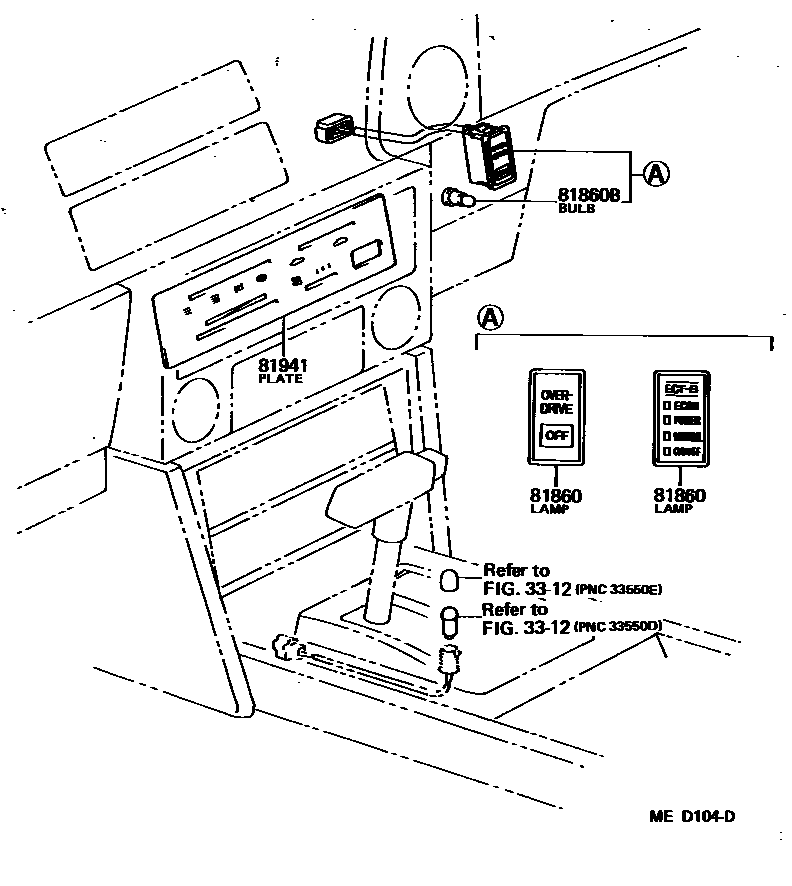

Toyota COROLLA LEVIN — INDICATOR

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-12040i198505-198704

W/OVER DRIVE

main81860-12060i198505-198704

W/*ECT

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110i198505-198704

81941PLATE, HEATER CONTROL NAME

main55519-12020i198305-198505

main55519-12021i198505-198704

main55519-12050i198305-198505

W/*AAC

main55519-12051i198505-198704

W/*AAC

4 parts on this diagram · 1 diagram in section

INDICATOR for Toyota COROLLA LEVIN

This section contains 4 genuine Toyota parts for the INDICATOR system of the Toyota COROLLA LEVIN. Key components include: SHIFT LEVER & RETAINER, LAMP ASSY, TRANSMISSION INDICATOR, BULB, TRANSMISSION INDICATOR LAMP, PLATE, HEATER CONTROL NAME.
