Toyota COROLLA LEVIN — FRONT CLEARANCE LAMP

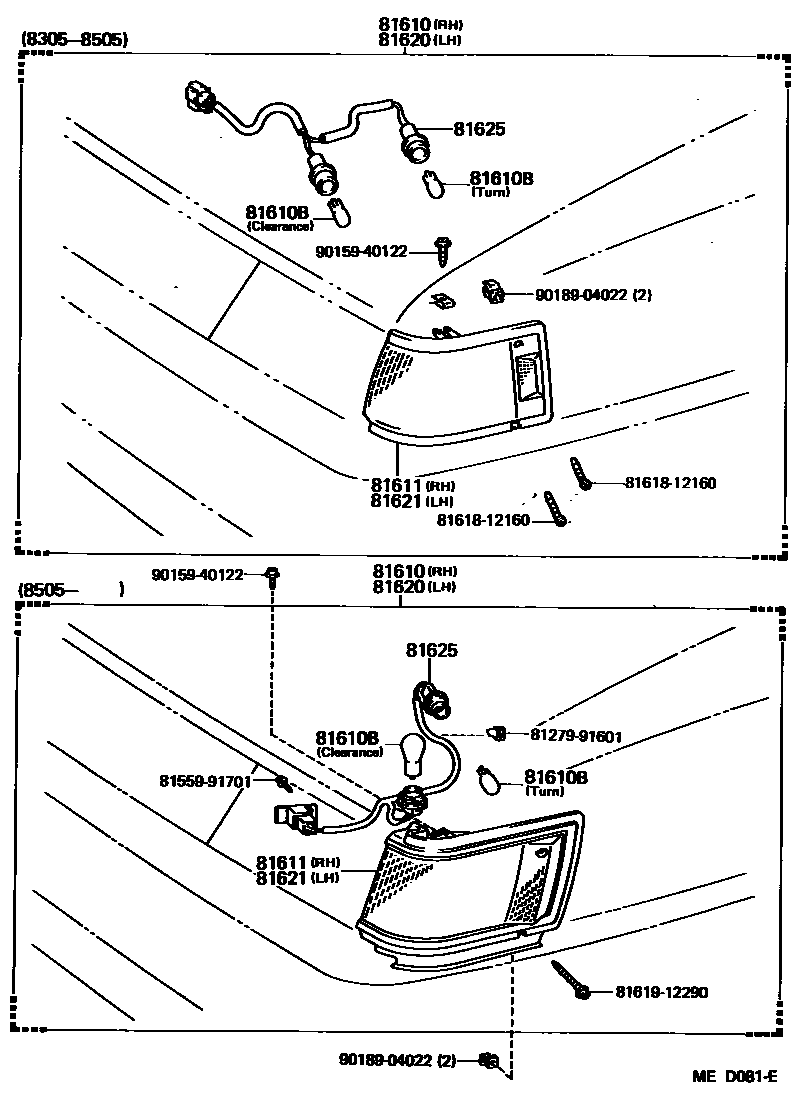

Parts diagram

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-12280i198505-198704

main81610-12290i198505-198704

main81610-19485i198305-198505

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-13036×2i198505-198704

main99132-11050×2i198505-198704

main99132-12050×2i198305-198704

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-12160i198305-198505

main81611-12280i198505-198704

main81611-12290i198505-198704

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-12280i198505-198704

main81620-12290i198505-198704

main81620-19485i198305-198505

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-12160i198305-198505

main81621-12280i198505-198704

main81621-12290i198505-198704

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-12160×2i198305-198505

main81615-12280×2i198505-198704

main81615-12290×2i198505-198704

8127991601WASHER, SIDE TURN SIGNAL LAMP

main81279-91601

8155991701MOULDING, REAR COMBINATION LAMP, RH

main81559-91701

8161812160BRACKET, PARKING AND CLEARANCE LAMP, RH

main81618-12160

8161912290

main81619-12290

9015940122

main90159-40122

9018904022

main90189-04022

12 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota COROLLA LEVIN

This section contains 12 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA LEVIN. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, LAMP ASSY, PARKING & CLEARANCE, LH, LENS, PARKING & CLEARANCE LAMP, LH.
