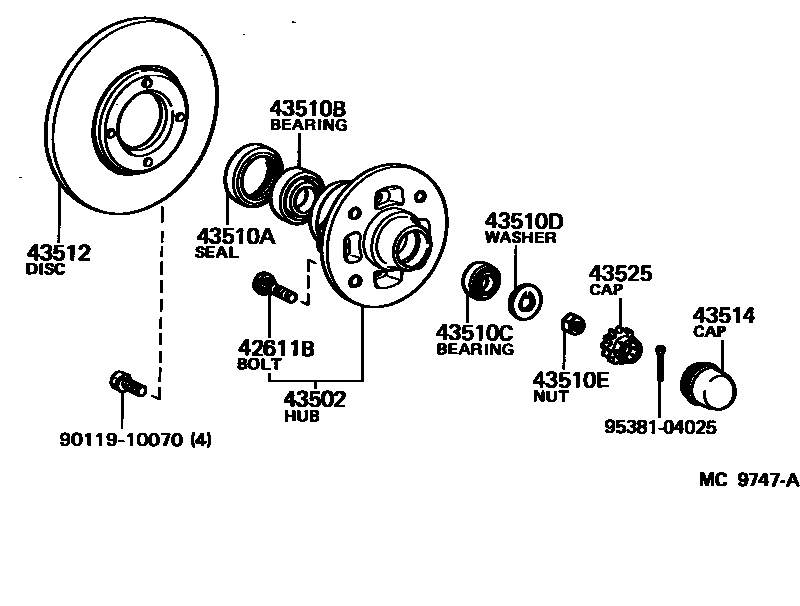

Toyota COROLLA LEVIN — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02048×8i198305-198704

43502HUB SUB-ASSY, FRONT AXLE

main43502-12070×2i198305-198704

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41123×2i198305-198704

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-29068×2i198305-198704

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017×2i198305-198704

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010×2i198305-198704

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137×2i198305-198704

43512DISC, FRONT

main43512-12130×2i198305-198704

main43512-12190×2i198305-198704

43514CAP, FRONT HUB GREASE

main43514-20010×2i198305-198704

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011×2i198305-198704

9011910070

main90119-10070

9538104025

main95381-04025

12 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA LEVIN

This section contains 12 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA LEVIN. Key components include: BOLT, HUB (FOR FRONT AXLE), HUB SUB-ASSY, FRONT AXLE, SEAL, OIL (FOR FRONT AXLE HUB), BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING), BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING).
