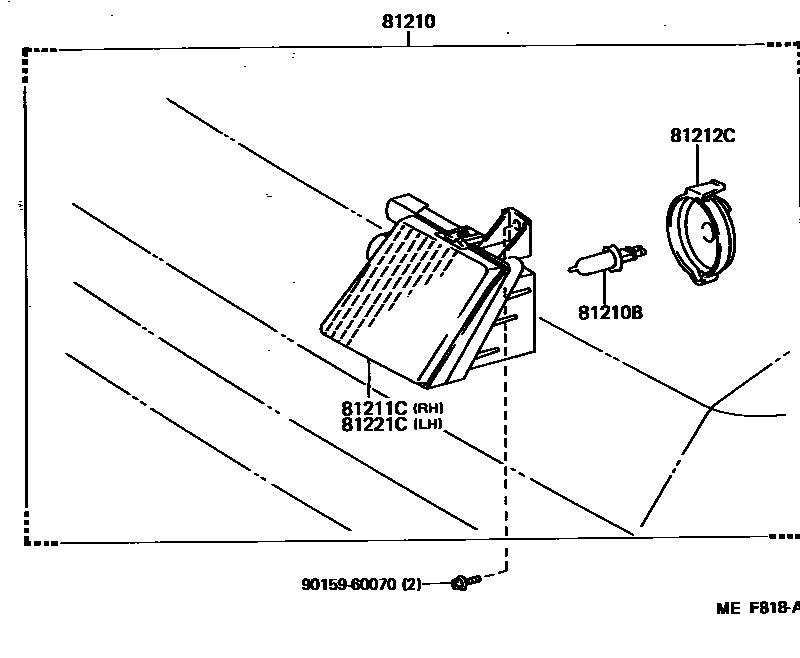

Toyota COROLLA LEVIN — FOG LAMP

81210LAMP ASSY, FOG

main81210-12030i198505-198704

main81220-12020i198505-198704

81210BBULB, FOG LAMP

main90981-13038×2i198505-198704

81211CLAMP UNIT, FOG LAMP, RH

main81211-12030i198505-198704

81212CCOVER, FOG LAMP

main81212-30030×2i198505-198704

81221CLAMP UNIT, FOG LAMP, LH

main81221-12020i198505-198704

9015960070

main90159-60070

6 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota COROLLA LEVIN

This section contains 6 genuine Toyota parts for the FOG LAMP system of the Toyota COROLLA LEVIN. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, COVER, FOG LAMP, LAMP UNIT, FOG LAMP, LH.
