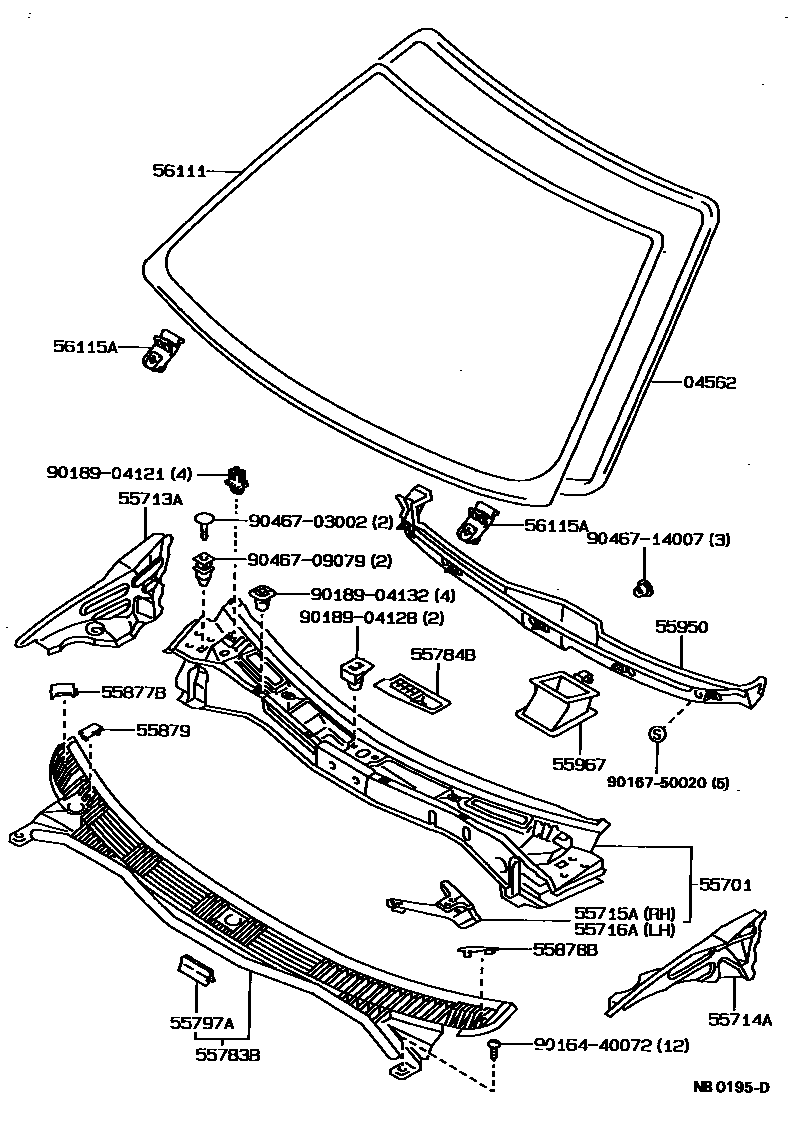

Toyota COROLLA LEVIN — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010i198705-199106

55701PANEL SUB-ASSY, COWL

main55700-12580i198705-198905

main55700-12590i198705-199106

main55700-12720i198905-199106

55713APANEL, COWL TOP SIDE, RH

main55713-12070i198705-199106

55714APANEL, COWL TOP SIDE, LH

main55714-12070i198705-199106

55715ABRACE, COWL TOP TO APRON, RH

main55715-12090i198705-199106

55716ABRACE, COWL TOP TO APRON, LH

main55716-12090i198705-199106

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12040i198705-199106

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-12070i198705-199106

55797ASEAL, COWL WATER EXTRACT

main55797-12010i198705-199106

55877BCOVER, COWL VENT, RH

main55877-12060i198705-199106

55878BCOVER, COWL VENT, LH

main55878-12020i198705-199106

55879PACKING, FRONT VENTILATOR

main55879-12050i198705-199106

55950NOZZLE ASSY, DEFROSTER

main55950-12120i198705-199106

55967NOZZLE, DEFROSTER, LOWER

main55967-12030i198705-199106

56111GLASS, WINDSHIELD

main56111-12850i198705-198905

main56111-12870i198705-198905

main56111-1A170i198705-198905

main56111-1A390i198905-199106

main56111-1A410i199001-199005

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12030×2i198705-199106

9016440072

main90164-40072

9016750020

main90167-50020

9018904121

main90189-04121

9018904128

main90189-04128

9018904132

main90189-04132

9046703002

main90467-03002

9046709079

main90467-09079

9046714007

main90467-14007

24 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota COROLLA LEVIN

This section contains 24 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota COROLLA LEVIN. Key components include: DAM KIT, WINDSHIELD GLASS, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH, BRACE, COWL TOP TO APRON, RH.
