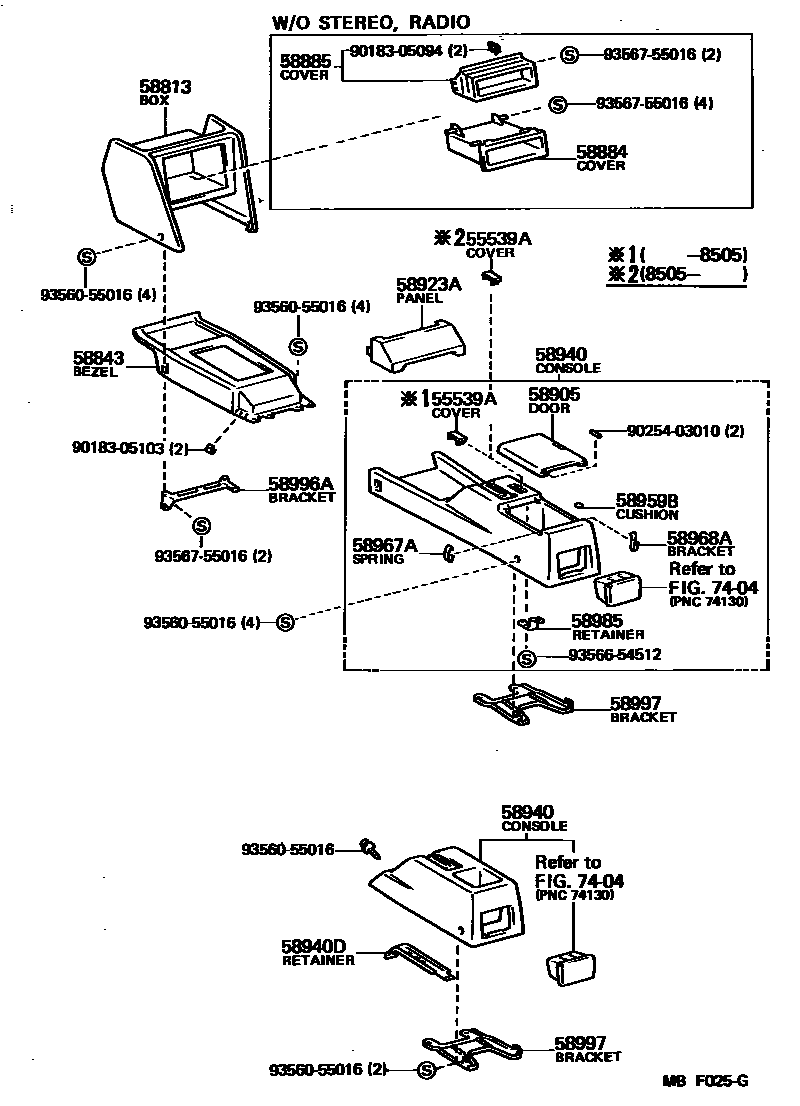

Toyota COROLLA LEVIN — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-24010-01iAE86..5F..(APX,GT)198505-198704

BLACK,BLACK,TRIM2#

sub55539-32010

sub55539-14030

sub55539-20030

main55539-24010-04iAE8#..APX,SE,SR198412-198505

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-14030

sub55539-20030

main55539-24010-12iAE8#..APX,SE,SR198412-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub55539-32010

sub55539-14030

sub55539-20030

58813BOX, CONSOLE, UPPER

main58813-12080-02iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main58813-12080-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

main58813-12081-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

58843BEZEL, SHIFTING HOLE

main58811-12360-02iAE8#198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main58811-12360-04iAE8#198305-198505

BLUE,BLUE,TRIM8#

main58811-12361-01iAE8#198505-198704

BLACK,BLACK,TRIM2#

58884COVER, STEREO OPENING

main55521-16010iAE8#198305-198704

sub55521-16030

58885COVER, CONSOLE BOX OPENING

main55522-14080iAE8#198305-198408

sub55522-20070

main55522-32010iAE8#198408-198704

sub55522-20070

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58951-12090iAE8#..APX,SE,SR198305-198309

main58951-12091iAE8#..APX,SE,SR198309-198505

sub58951-12101

58923APANEL, CONSOLE REAR END

main58903-12060-01iAE8#..GL,GTV198505-198704

BLACK,BLACK,TRIM2#

main58903-12060-02iAE8#..GL,GT,GTV198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main58903-12060-04iAE8#..GL,GT,GTV198305-198505

BLUE,BLUE,TRIM8#

58940CONSOLE ASSY, REAR

main58901-12050-02iAE8#..APX,SE,SR198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main58901-12050-04iAE8#..APX,SE,SR198305-198505

BLUE,BLUE,TRIM8#

main58901-12051-01iAE8#..APX,GT,SE,SR198505-198704

BLACK,BLACK,TRIM2#

main58901-12060-01iAE8#..GL,GTV198505-198704

BLACK,BLACK,TRIM2#

main58901-12060-02iAE8#..GL,GT,GTV198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main58901-12060-04iAE8#..GL,GT,GTV198305-198505

BLUE,BLUE,TRIM8#

58940DRETAINER, PARKING BRAKE HOLE COVER

main58943-12030iAE8#..GL,GT,GTV198305-198505

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010×2iAE8#..APX,GT,SE,SR198505-198704

58967ASPRING, CONSOLE DOOR STOPPER

main58967-12010×2iAE8#..APX,SE,SR198305-198309

58968ABRACKET, CONSOLE DOOR STOPPER

main58968-12010×2iAE8#..APX,SE,SR198309-198505

58985RETAINER, CONSOLE BOX

main58985-12020iAE8#..APX,SE,SR198305-198505

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12040iAE8#198305-198704

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-12050iAE8#198305-198704

7404

9018305094

main90183-05094

9018305103

main90183-05103

9025403010

main90254-03010

9356055016

main93560-55016

9356654512

main93566-54512

9356755016

main93567-55016

22 parts on this diagram · 1 diagram in section
