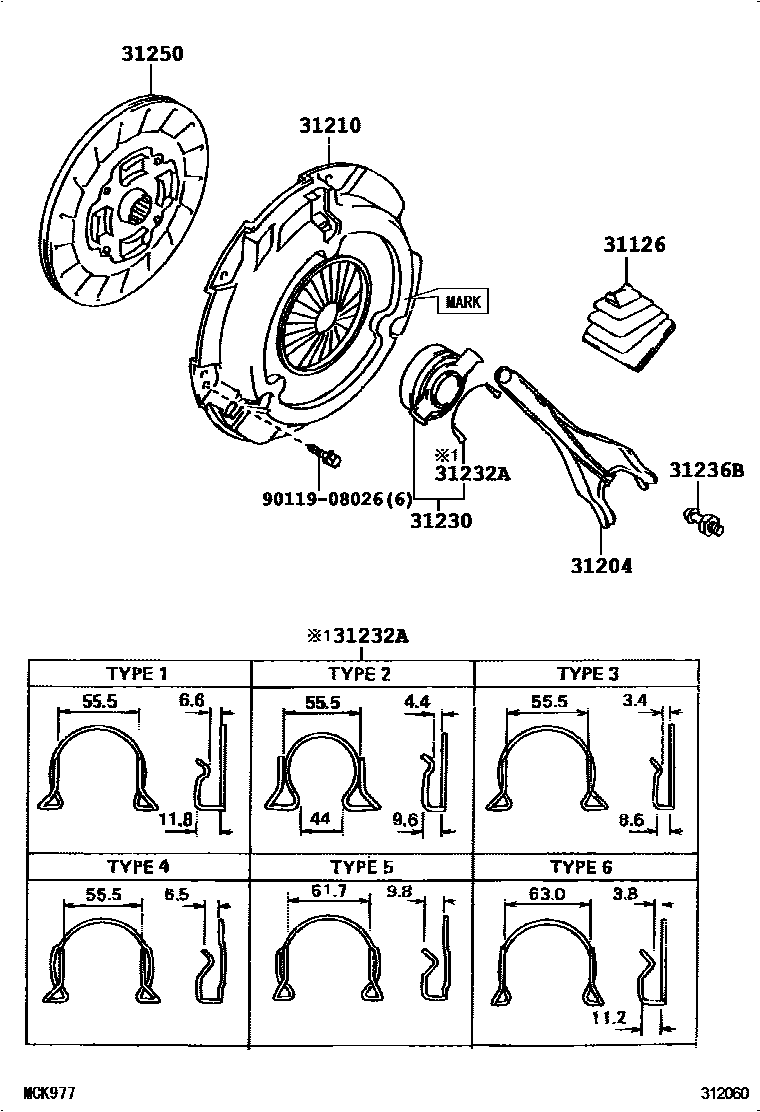

Toyota COROLLA LEVIN — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAE9#..5F198705-199106

main31126-12060iAE92..SPC198905-199106

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iAE9#..5F..(CBR,EFI)198705-199105

main31204-17010iAE92..SPC198705-199106

31210COVER ASSY, CLUTCH

main31210-12120iAE92..5F..EFI198705-198905

sub31210-12121

main31210-12140iAE91..5F198905-198911

sub31210-12141

main31210-12141iAE91..5F198911-199104

sub31210-12190

main31210-12150iAE92..5F..EFI198905-198911

sub31210-12151

main31210-12151iAE92..5F..EFI198911-199106

sub31210-12152

main31210-12170iAE92..SPC199010-199106

sub31210-12171

main31210-12190iAE91..5F199104-199106

sub31210-12191

main31210-16090iAE91..5F..ZI198705-198911

sub31210-16091

main31210-16100iAE91..5F..CBR198705-198812

sub31210-16101

main31210-16101iAE91..5F..CBR198812-198905

sub31210-16102

main31210-17020iAE92..SPC198705-198805

sub31210-17021

main31210-17021iAE92..SPC198805-199010

31230BEARING ASSY, CLUTCH RELEASE

main31230-12100iAE9#..5F..(CBR,EFI)198705-198708

sub31230-12140

main31230-12140iAE9#..5F..EFI198708-199105

sub31230-16061

main31230-12170iAE9#..5F..(EFI,EFIS)199105-199106

sub31230-12171

main31230-20160iAE92..SPC198705-198809

sub31230-20170

main31230-20170iAE92..SPC198809-199106

31232ACLIP, RELEASE BEARING HUB

main31232-12020iAE9#..5F..(CBR,EFI)198705-198708

TYPE 1

main31232-12030iAE9#..5F..(CBR,EFI)198705-198708

TYPE 2

main31232-12040iAE9#..5F..(G,GT,GTAPX,L,ZS)..(EFI,EFIS)198705-199105

TYPE 3

main31232-12050iAE9#..5F..(EFI,EFIS)199105-199106

main31232-12060iAE9#..5F..(EFI,EFIS)198905-199105

main31232-12070iAE9#..5F..EFI199105-199106

main31232-16031iAE9#..5F..(CBR,EFI)198807-198808

main31232-16031iAE9#..5F..(G,GT,GTAPX,L,ZS)..(EFI,EFIS)198705-199105

TYPE 4

main31232-20020iAE92..SPC198705-199106

TYPE 5

main31232-32030iAE92..SPC198705-198811

TYPE 6

31236BSUPPORT, RELEASE FORK

main31236-12011iAE91..5F..CBR198705-199105

main31236-12020iAE9#..5F..(EFI,EFIS)199105-199106

main31236-20060iAE92..SPC198705-199106

31250DISC ASSY, CLUTCH

main31250-12144iAE91..5F..CBR198705-198803

sub31250-12200

main31250-12154iAE91..5F..EFI198705-198806

sub31250-12155

main31250-12155iAE91..5F..(EFI,EFIS)198806-199006

sub31250-12156

main31250-12156iAE91..5F199006-199104

sub31250-12310

main31250-12200iAE91..5F..CBR198803-198905

sub31250-12201

main31250-12230iAE92..SPC199010-199106

sub31250-12231

main31250-12310iAE91..5F199104-199106

sub31250-12380

main31250-12320iAE92..5F..EFI199104-199106

sub31250-12360

main31250-17010iAE92..5F..EFI198705-198905

sub31250-12290

main31250-17020iAE92..5F..EFI198905-199104

sub31250-12320

main31250-17030iAE92..SPC198705-199010

sub31250-17031

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
