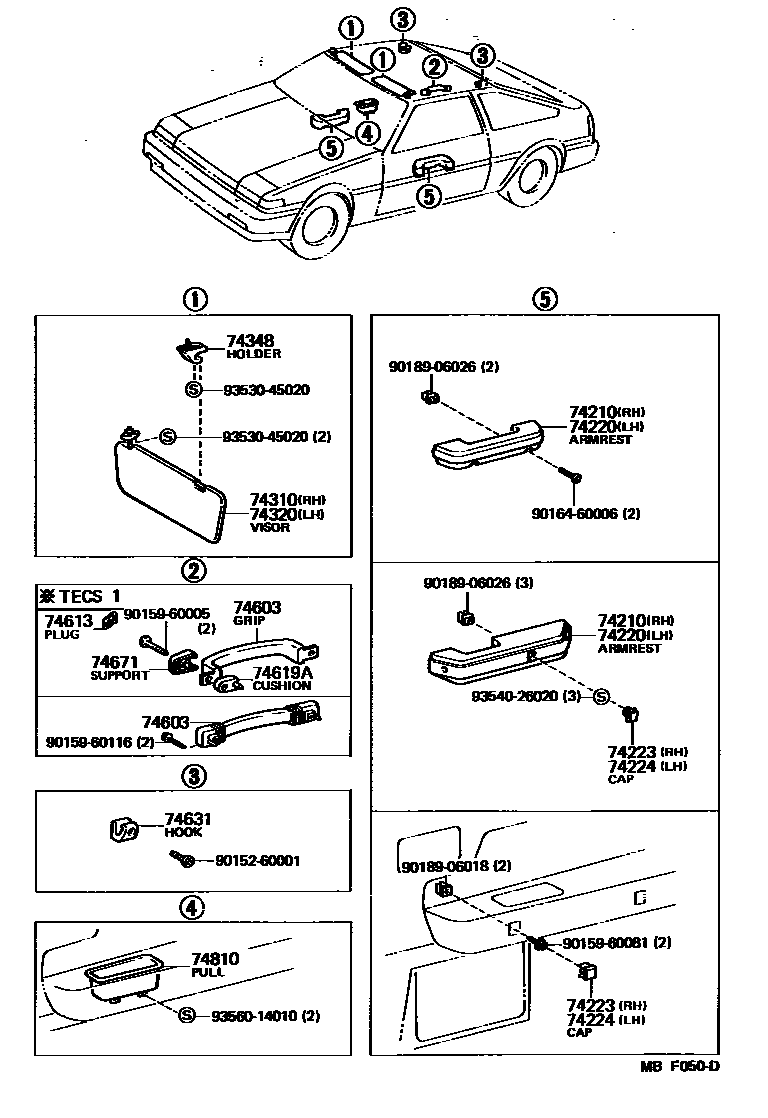

Toyota COROLLA LEVIN — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-12070-01i198505-198704

BLACK,BLACK,TRIM2#

main74210-12070-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74210-12070-04i198305-198505

BLUE,BLUE,TRIM8#

main74210-12120-01i198505-198704

BLACK,BLACK,TRIM2#

main74250-14030-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74250-14030-04i198305-198505

BLUE,BLUE,TRIM8#

74220ARMREST ASSY, FRONT, LH

main74220-12030-01i198505-198704

BLACK,BLACK,TRIM2#

main74220-12030-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74220-12030-04i198305-198505

BLUE,BLUE,TRIM8#

main74220-12060-01i198505-198704

BLACK,BLACK,TRIM2#

main74250-14030-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74250-14030-04i198305-198505

BLUE,BLUE,TRIM8#

74223CAP, DOOR ARMREST, RH

main74223-12040-02×2i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74223-12040-04×2i198305-198505

BLUE,BLUE,TRIM8#

main74223-12050-01i198505-198704

BLACK,BLACK,TRIM2#

main74223-12050-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74223-12050-04i198305-198505

BLUE,BLUE,TRIM8#

main74223-12060-01i198505-198704

BLACK,BLACK,TRIM2#

74224CAP, DOOR ARMREST, LH

main74223-12040-02×2i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74223-12040-04×2i198305-198505

BLUE,BLUE,TRIM8#

main74223-12050-01i198505-198704

BLACK,BLACK,TRIM2#

main74223-12050-02i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74223-12050-04i198305-198505

BLUE,BLUE,TRIM8#

main74223-12060-01i198505-198704

BLACK,BLACK,TRIM2#

74310VISOR ASSY, RH

main74310-12320i198305-198505

IVORY

main74310-12370i198305-198505

W/SUN ROOF,IVORY

main74310-12380i198305-198505

LIME,IVORY

main74310-12540-08i198505-198704

IVORY,IVORY

main74310-12570-08i198505-198701

W/SUN ROOF,IVORY,IVORY

main74310-12590-08i198505-198704

LIME,IVORY,IVORY

74320VISOR ASSY, LH

main74320-12260i198305-198505

IVORY

main74320-12280i198305-198505

IVORY

main74320-12420-08i198505-198704

IVORY,IVORY

main74320-12430-08i198505-198704

IVORY,IVORY; LIME,IVORY,IVORY

74348HOLDER, VISOR

main74348-32010-01×2i198305-198704

BLACK,BLACK,TRIM2#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-22020-01i198505-198704

RH,*TECS1,BLACK,BLACK,TRIM2#

main74603-22020-02×2i198305-198312

*TECS1,DEEP MAROON,RED/MAROON,TRIM3#

main74603-22020-24i198312-198505

RH,*TECS1,BLUE,BLUE,TRIM8#

main74610-14030-01i198505-198704

LH,BLACK,BLACK,TRIM2#

main74610-14030-02i198305-198505

LH,DEEP MAROON,RED/MAROON,TRIM3#

main74610-14030-14i198305-198505

LH,BLUE,BLUE,TRIM8#

74613PLUG, ASSIST GRIP

main74617-22010-01×2i198505-198704

BLACK,BLACK,TRIM2#

main74617-22010-12×4i198305-198312

DEEP MAROON,RED/MAROON,TRIM3#

main74617-22010-14×4i198305-198312

BLUE,BLUE,TRIM8#

74619ACUSHION, ASSIST GRIP

main74619-12010×4i198305-198312

74631HOOK, COAT, A

main74631-12070-01×2i198505-198704

BLACK,BLACK,TRIM2#

main74631-12070-02×2i198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main74631-12070-04×2i198305-198505

BLUE,BLUE,TRIM8#

74671SUPPORT, ASSIST GRIP

main74671-22010-01×2i198505-198704

BLACK,BLACK,TRIM2#

main74671-22010-12×4i198305-198312

DEEP MAROON,RED/MAROON,TRIM3#

main74671-22010-14×2i198312-198505

BLUE,BLUE,TRIM8#

74810PULL ASSY, DOOR, INSIDE

main74266-12010-02i198305-198505

RH,TERRA COTTA,RED/MAROON,TRIM3#

main74266-12010-04i198305-198505

RH,BLUE,BLUE,TRIM8#

main74267-12010-02i198305-198505

LH,TERRA COTTA,RED/MAROON,TRIM3#

main74267-12010-04i198305-198505

LH,BLUE,BLUE,TRIM8#

9015260001

main90152-60001

9015960005

main90159-60005

9015960081

main90159-60081

9015960116

main90159-60116

9016460006

main90164-60006

9018906018

main90189-06018

9018906026

main90189-06026

9353045020

main93530-45020

9354026020

main93540-26020

9356014010

main93560-14010

23 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA LEVIN

This section contains 24 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA LEVIN. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH, VISOR ASSY, RH.
