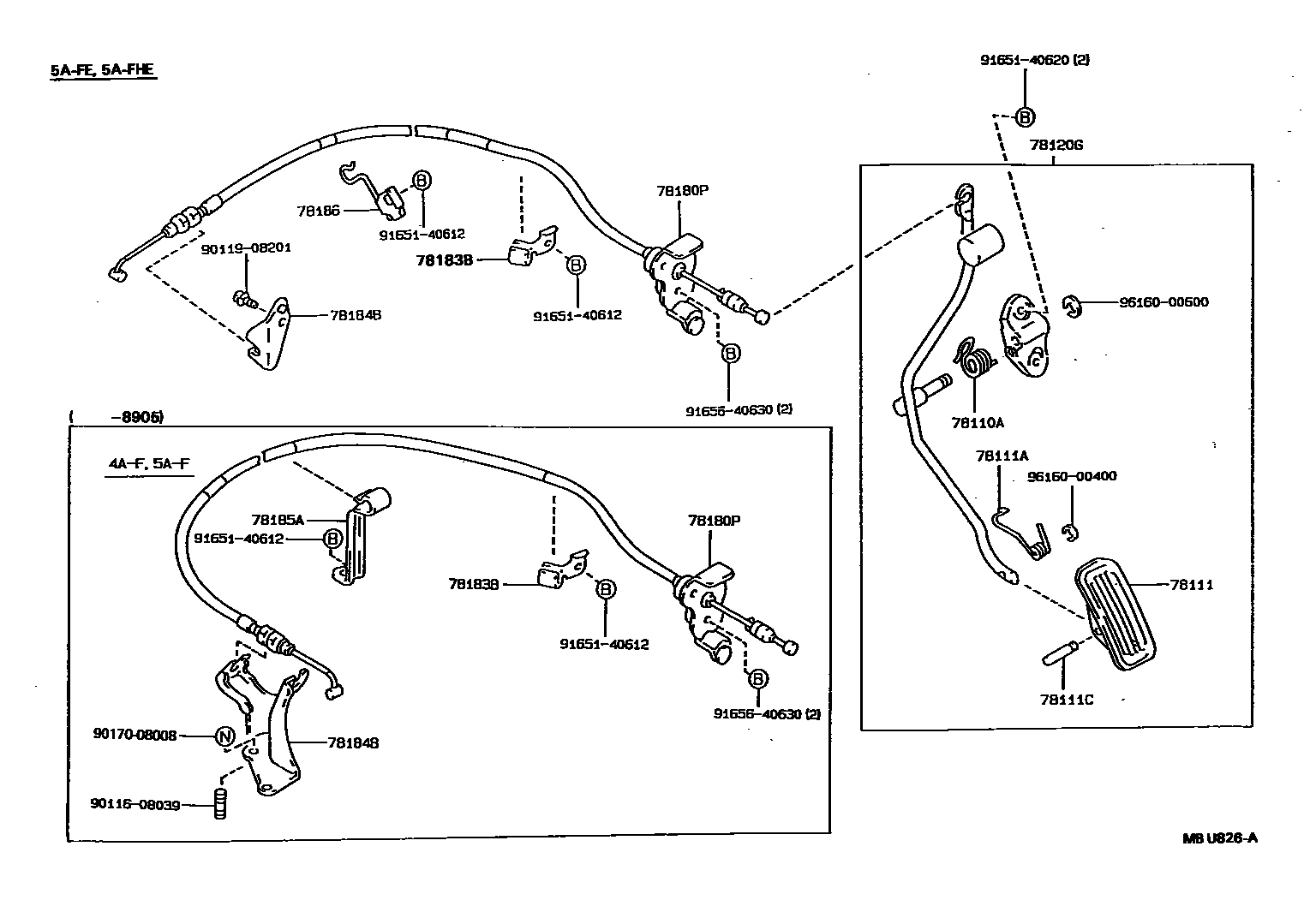

Toyota COROLLA LEVIN — ACCELERATOR LINK
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78183BCLAMP, ACCELERATOR CONTROL CABLE
78184BBRACKET, ACCELERATOR CONTROL CABLE
78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
9011608039
main90116-08039
9011908201
main90119-08201
9017008008
main90170-08008
9165140612
main91651-40612
9165140620
main91651-40620
9165640630
main91656-40630
9616000400
main96160-00400
9616000600
main96160-00600
18 parts on this diagram · 2 diagrams in section
ACCELERATOR LINK for Toyota COROLLA LEVIN
This section contains 22 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA LEVIN. Key components include: SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL), PIN (FOR ACCELERATOR PEDAL), ROD ASSY, ACCELERATOR PEDAL.
