Toyota COROLLA LB — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12840199704-200008

main85110-1A010199704-200109

85160LINK ASSY, WINDSHIELD WIPER

main85150-12860199704-200008

main85150-12890199704-200109

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113199704-200109

85192COVER, WINDSHIELD WIPER ARM

main85292-12020199704-200109

85211BARM, FRONT WIPER, RH

main85211-12330199704-200109

main85211-12350199704-200008

85212ABLADE, FR WIPER, RH

main85212-12320199704-200109

main85212-20420199704-200008

85214ARUBBER, WIPER, RH

main85214-10080199704-200109

main85214-35030199704-200008

85214BRUBBER, WIPER, LH

main85214-20350199704-200109

main85214-42020199704-200008

85221BARM, FRONT WIPER, LH

main85221-12310199704-200008

main85221-12330199704-200109

85222ABLADE, FR WIPER, LH

main85222-12730199704-200008

main85222-20390199704-200109

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-10180199704-200109

main85224-60100199704-200008

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-10180199704-200109

main85224-60100199704-200008

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-10210199704-200008

main85224-20310199704-200109

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-10210199704-200008

main85224-20310199704-200109

9011906187

main90119-06187

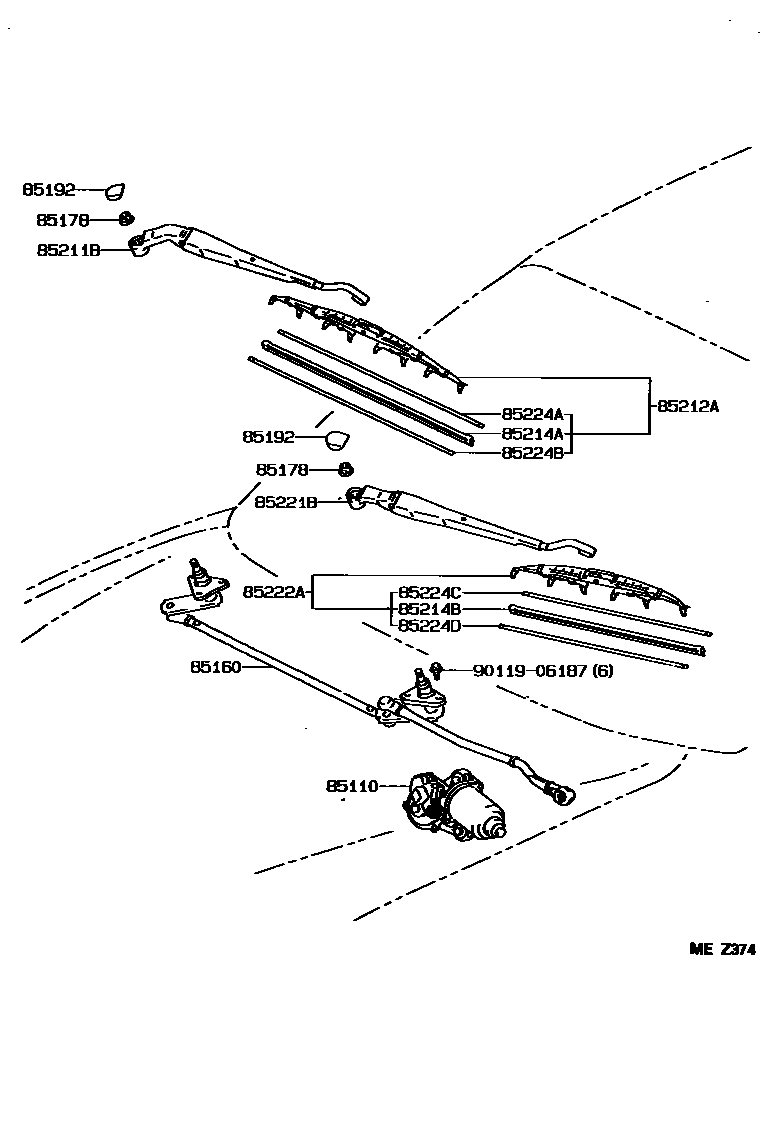

15 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota COROLLA LB

This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA LB. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
