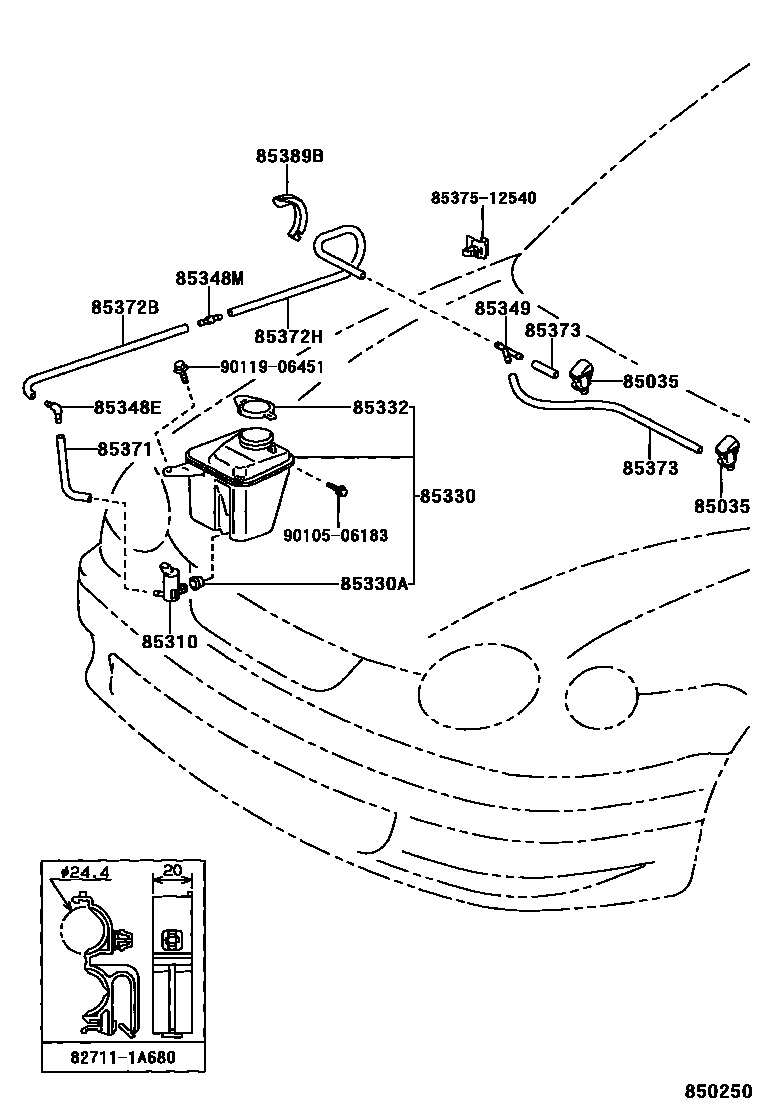

Toyota COROLLA LB — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12050i199910-200109

main85381-12100i199704-199910

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-12280i199704-200109

85330JAR ASSY, WINDSHIELD WASHER

main85315-12221i199704-200109

main85315-12281i199704-200008

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199704-200109

85332CAP, WINDSHIELD WASHER JAR

main85316-12221i199704-200109

main85316-12290i199704-200008

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i199704-200109

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85317-12230i199704-200109

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i199704-200109

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-14390i199704-200109

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85319-12421i199704-200109

H=95

main90446-07001i199704-200008

L=1800(*H,L=150)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85319-12221i199704-200109

H=100

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i199704-200109

L=1450(*H,L=190)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i199704-200109

L=1800(*H,L=1580)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i199704-200109

L=1450(*H,L=40)

main90099-33080i199704-200109

L=1450(*H,L=540)

85389BPROTECTOR, WINDSHIELD WASHER

main85389-12700i199704-200109

827111A680WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A680

8537512540HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-12540

9010506183

main90105-06183

9011906451

main90119-06451

19 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota COROLLA LB

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA LB. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
