Toyota COROLLA LB — PARTIAL ENGINE ASSEMBLY

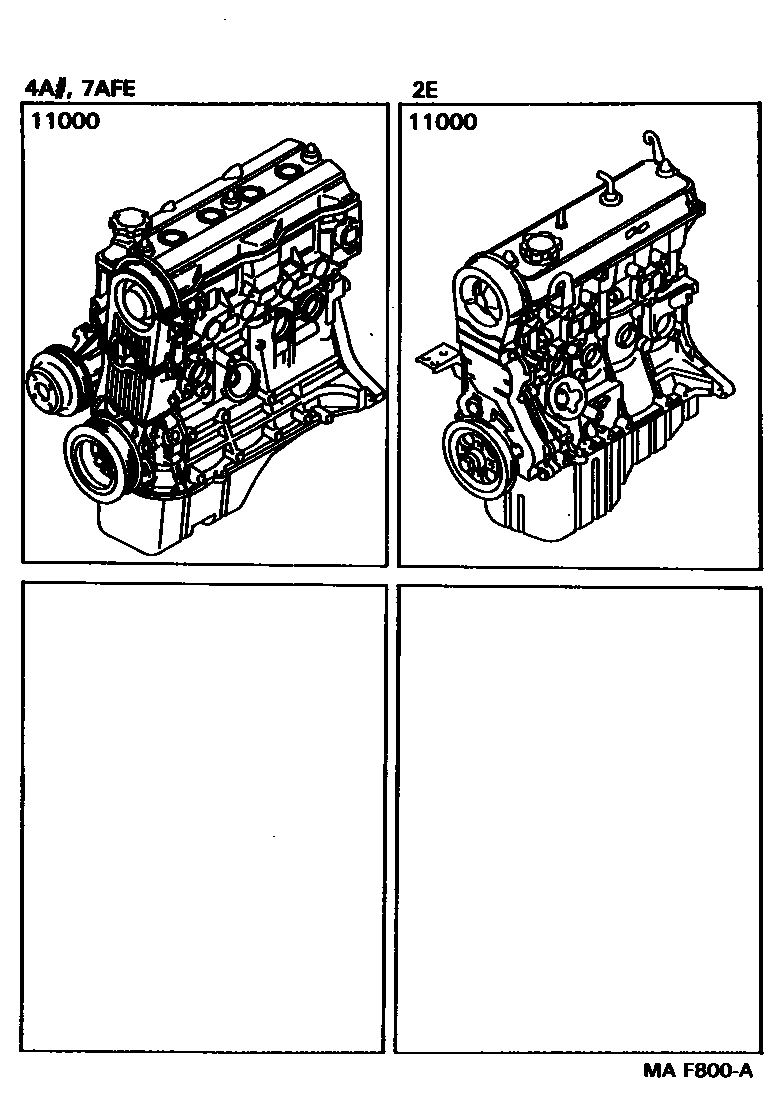

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-11552i199704-200008

main19000-16410i199704-199910

main19000-16610i199704-199910

W(OIL COOLER)

main19000-1A470i199704-200010

EXHAUST PIPE=W(CONVERTER)

main19000-1A520i199704-200109

main19000-1A560i199704-200008

main19000-1A570i199808-200109

main19000-1A630i199808-199910

main19000-1A640i199808-199910

main19000-1A660i199808-199910

1 parts on this diagram · 1 diagram in section
