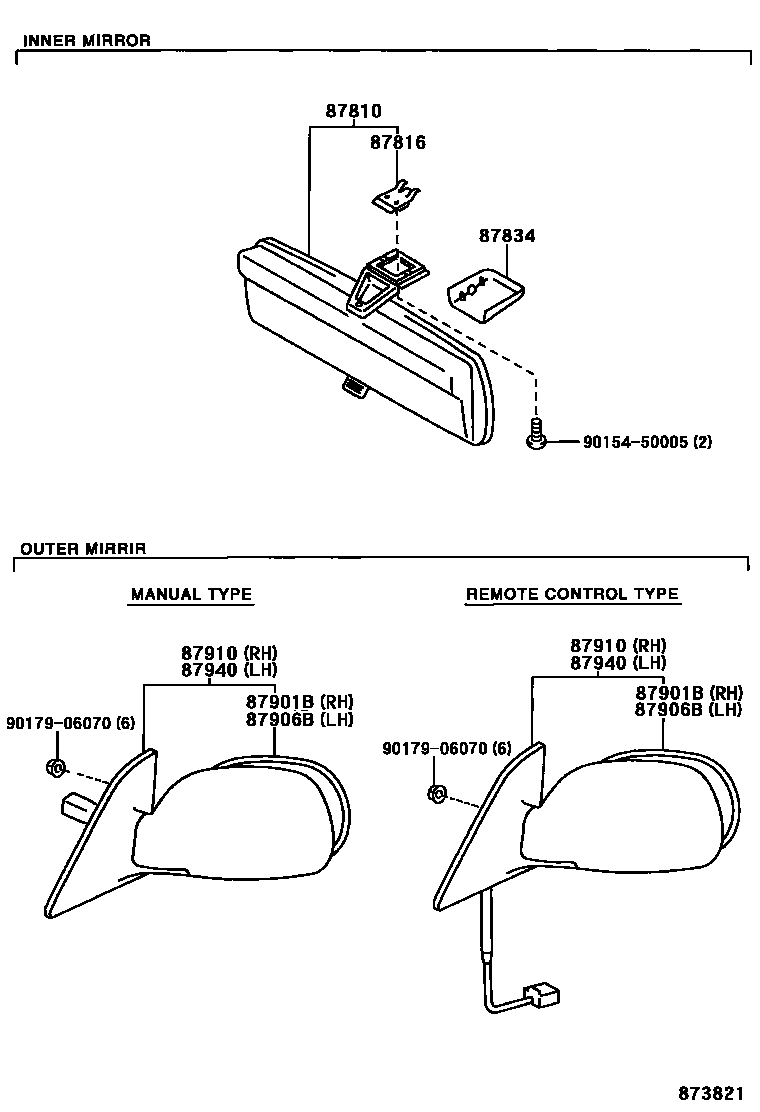

Toyota COROLLA LB — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12270-B1i199704-199910

DAY/NIGHT TYPE,MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM1#

main87810-12280-B2i199704-200008

MD.CHARCOAL,TRIM1#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199704-199910

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-01020-B5i199704-200109

MD.CHARCOAL,TRIM1#

main87834-12030-B6i199910-200109

MD.CHARCOAL,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A820i199808-199910

main87931-1E660i199704-199808

main87931-1E680i199704-199910

main87931-1E720i199704-199910

ELECTRIC REMOTE CONTROL

main87931-1E800i199808-199910

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1E820i199808-200109

main87961-1E880i199704-199808

main87961-1H010i199704-200008

main87961-1H050i199704-199808

ELECTRIC REMOTE CONTROL

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-1A790i199704-199808

main87910-1E660-A0i199704-199806

SUPER WHITE 2,040

main87910-1E660-B0i199704-199806

SILVER ME,199

main87910-1E660-C0i199704-199806

BLACK ME,205

main87910-1E660-D0i199704-199806

CORAL REEF M.M.,3L6

main87910-1E660-D1i199704-199806

RED,3M7

main87910-1E660-E0i199704-199806

APRICOT M.M.,4P0

main87910-1E660-G0i199704-199806

GREEN M.M.,6P5

main87910-1E660-J0i199704-199806

BLUE M.M.,8L5

main87910-1E660-J1i199704-199806

DK.BLUE,8M4

main87910-1E660-K0i199704-199806

LAVENDER ME.,932

main87910-1E661-A0i199806-199808

SUPER WHITE 2,040

main87910-1E661-B0i199806-199808

SILVER ME,199

main87910-1E661-C0i199806-199808

BLACK ME,205

main87910-1E661-D0i199806-199808

CORAL REEF M.M.,3L6

main87910-1E661-D1i199806-199808

RED,3M7

main87910-1E661-E0i199806-199808

APRICOT M.M.,4P0

main87910-1E661-G0i199806-199808

GREEN M.M.,6P5

main87910-1E661-J0i199806-199808

BLUE M.M.,8L5

main87910-1E661-J1i199806-199808

DK.BLUE,8M4

main87910-1E661-K0i199806-199808

LAVENDER ME.,932

main87910-1E670i199704-199910

main87910-1E680-A0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,SUPER WHITE 2,040

main87910-1E680-B0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,SILVER ME,199

main87910-1E680-C0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,BLACK ME,205

main87910-1E680-D0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,CORAL REEF M.M.,3L6

main87910-1E680-D1i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,RED,3M7

main87910-1E680-E0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,APRICOT M.M.,4P0

main87910-1E680-G0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,GREEN M.M.,6P5

main87910-1E680-J0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,BLUE M.M.,8L5

main87910-1E680-J1i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,DK.BLUE,8M4

main87910-1E680-K0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,LAVENDER ME.,932

main87910-1E681-A0i199806-199910

ELECTRIC REMOTE CONTROL MIRROR,SUPER WHITE 2,040

main87910-1E681-B0i199806-200008

ELECTRIC REMOTE CONTROL MIRROR,SILVER ME,199

main87910-1E681-C0i199806-200008

ELECTRIC REMOTE CONTROL MIRROR,BLACK ME,205

main87910-1E681-D0i199806-199910

ELECTRIC REMOTE CONTROL MIRROR,CORAL REEF M.M.,3L6

main87910-1E681-D1i199806-199808

ELECTRIC REMOTE CONTROL MIRROR,RED,3M7

main87910-1E681-D2i199808-200008

ELECTRIC REMOTE CONTROL MIRROR,SUPER RED II,3E5

main87910-1E681-D3i199910-200008

ELECTRIC REMOTE CONTROL MIRROR,RED M.M.,3N8

main87910-1E681-F0i199910-200008

ELECTRIC REMOTE CONTROL MIRROR,GOLD ME.,581

main87910-1E681-G0i199806-199910

ELECTRIC REMOTE CONTROL MIRROR,GREEN M.M.,6P5

main87910-1E681-G1i199910-200008

ELECTRIC REMOTE CONTROL MIRROR,GREEN MC.,6R8

main87910-1E681-J0i199806-200008

ELECTRIC REMOTE CONTROL MIRROR,BLUE M.M.,8L5

main87910-1E681-J1i199806-199910

ELECTRIC REMOTE CONTROL MIRROR,DK.BLUE,8M4

main87910-1E681-J2i199808-199910

ELECTRIC REMOTE CONTROL MIRROR,BLUE M.M.,8M9

main87910-1E681-J3i199910-200008

ELECTRIC REMOTE CONTROL MIRROR,DK.BLUE M.M.,8L3

main87910-1E681-K1i199808-199910

ELECTRIC REMOTE CONTROL MIRROR,VIOLET M.M.,944

main87910-1E710-A0i199704-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,SUPER WHITE 2,040

main87910-1E710-B1i199704-200109

ELECTRIC REMOTE CONTROL COLORED MIRROR,SILVER ME,199

main87910-1E710-C0i199704-200109

ELECTRIC REMOTE CONTROL,BLACK ME,205

main87910-1E710-D1i199704-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,CORAL REEF M.M.,3L6

main87910-1E710-D2i199704-199808

ELECTRIC REMOTE CONTROL,RED,3M7

main87910-1E710-D3i199808-200109

ELECTRIC REMOTE CONTROL COLORED MIRROR,SUPER RED II,3E5

main87910-1E710-D4i199910-200109

ELECTRIC REMOTE CONTROL COLORED MIRROR,RED M.M.,3N8

main87910-1E710-E0i199704-199808

ELECTRIC REMOTE CONTROL COLORED MIRROR,APRICOT M.M.,4P0

main87910-1E710-F0i199910-200109

ELECTRIC REMOTE CONTROL COLORED MIRROR,GOLD ME.,581

main87910-1E710-G1i199704-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,GREEN M.M.,6P5

main87910-1E710-G3i199910-200109

ELECTRIC REMOTE CONTROL COLORED MIRROR,GREEN MC.,6R8

main87910-1E710-J1i199704-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,BLUE M.M.,8L5

main87910-1E710-J3i199704-200109

ELECTRIC REMOTE CONTROL,DK.BLUE,8M4

main87910-1E710-J5i199808-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,BLUE M.M.,8M9

main87910-1E710-J6i199910-200109

ELECTRIC REMOTE CONTROL COLORED MIRROR,DK.BLUE M.M.,8L3

main87910-1E710-K0i199704-199808

ELECTRIC REMOTE CONTROL COLORED MIRROR,LAVENDER ME.,932

main87910-1E710-K1i199808-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,VIOLET M.M.,944

main87910-1E730i199710-199810

main87910-1E771i199808-199910

main87910-1E800-A0i199808-200109

SUPER WHITE 2,040

main87910-1E800-B0i199808-200109

SILVER ME,199

main87910-1E800-C0i199808-199910

BLACK ME,205

main87910-1E800-D0i199808-199910

CORAL REEF M.M.,3L6

main87910-1E800-D2i199808-200109

SUPER RED II,3E5

main87910-1E800-D3i199910-200109

RED M.M.,3N8

main87910-1E800-F0i199910-200109

GOLD ME.,581

main87910-1E800-G0i199808-199910

GREEN M.M.,6P5

main87910-1E800-G1i199910-200109

GREEN MC.,6R8

main87910-1E800-J0i199808-199910

BLUE M.M.,8L5

main87910-1E800-J1i199808-200109

DK.BLUE,8M4

main87910-1E800-J2i199808-199910

BLUE M.M.,8M9

main87910-1E800-J3i199910-200109

DK.BLUE M.M.,8L3

main87910-1E800-K0i199808-199910

VIOLET M.M.,944

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-1E460-A0i199808-200109

SUPER WHITE 2,040

main87940-1E460-B0i199808-199910

SILVER ME,199

main87940-1E460-C0i199808-200109

BLACK ME,205

main87940-1E460-D0i199808-199910

CORAL REEF M.M.,3L6

main87940-1E460-D2i199808-199910

SUPER RED II,3E5

main87940-1E460-D3i199910-200109

RED M.M.,3N8

main87940-1E460-F0i199910-200109

GOLD ME.,581

main87940-1E460-G0i199808-199910

GREEN M.M.,6P5

main87940-1E460-G1i199910-200109

GREEN MC.,6R8

main87940-1E460-J0i199808-199910

BLUE M.M.,8L5

main87940-1E460-J1i199808-200109

DK.BLUE,8M4

main87940-1E460-J2i199808-199910

BLUE M.M.,8M9

main87940-1E460-J3i199910-200109

DK.BLUE M.M.,8L3

main87940-1E460-K0i199808-199910

VIOLET M.M.,944

main87940-1E790i199704-199808

main87940-1E880-A0i199704-199806

SUPER WHITE 2,040

main87940-1E880-B0i199704-199806

SILVER ME,199

main87940-1E880-C0i199704-199806

BLACK ME,205

main87940-1E880-D0i199704-199806

CORAL REEF M.M.,3L6

main87940-1E880-D1i199704-199806

RED,3M7

main87940-1E880-E0i199704-199806

APRICOT M.M.,4P0

main87940-1E880-G0i199704-199806

GREEN M.M.,6P5

main87940-1E880-J0i199704-199806

BLUE M.M.,8L5

main87940-1E880-J1i199704-199806

DK.BLUE,8M4

main87940-1E880-K0i199704-199806

LAVENDER ME.,932

main87940-1E881-A0i199806-199808

SUPER WHITE 2,040

main87940-1E881-B0i199806-199808

SILVER ME,199

main87940-1E881-C0i199806-199808

BLACK ME,205

main87940-1E881-D0i199806-199808

CORAL REEF M.M.,3L6

main87940-1E881-D1i199806-199808

RED,3M7

main87940-1E881-E0i199806-199808

APRICOT M.M.,4P0

main87940-1E881-G0i199806-199808

GREEN M.M.,6P5

main87940-1E881-J0i199806-199808

BLUE M.M.,8L5

main87940-1E881-J1i199806-199808

DK.BLUE,8M4

main87940-1E881-K0i199806-199808

LAVENDER ME.,932

main87940-1E890i199704-199910

main87940-1H010-A0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,SUPER WHITE 2,040

main87940-1H010-B0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,SILVER ME,199

main87940-1H010-C0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,BLACK ME,205

main87940-1H010-D0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,CORAL REEF M.M.,3L6

main87940-1H010-D1i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,RED,3M7

main87940-1H010-E0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,APRICOT M.M.,4P0

main87940-1H010-G0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,GREEN M.M.,6P5

main87940-1H010-J0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,BLUE M.M.,8L5

main87940-1H010-J1i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,DK.BLUE,8M4

main87940-1H010-K0i199704-199806

ELECTRIC REMOTE CONTROL MIRROR,LAVENDER ME.,932

main87940-1H011-A0i199806-199910

ELECTRIC REMOTE CONTROL MIRROR,SUPER WHITE 2,040

main87940-1H011-B0i199806-200008

ELECTRIC REMOTE CONTROL MIRROR,SILVER ME,199

main87940-1H011-C0i199806-200008

ELECTRIC REMOTE CONTROL MIRROR,BLACK ME,205

main87940-1H011-D0i199806-199910

ELECTRIC REMOTE CONTROL MIRROR,CORAL REEF M.M.,3L6

main87940-1H011-D1i199806-199808

ELECTRIC REMOTE CONTROL MIRROR,RED,3M7

main87940-1H011-D2i199808-200008

ELECTRIC REMOTE CONTROL MIRROR,SUPER RED II,3E5

main87940-1H011-D3i199910-200008

ELECTRIC REMOTE CONTROL MIRROR,RED M.M.,3N8

main87940-1H011-F0i199910-200008

ELECTRIC REMOTE CONTROL MIRROR,GOLD ME.,581

main87940-1H011-G0i199806-199910

ELECTRIC REMOTE CONTROL MIRROR,GREEN M.M.,6P5

main87940-1H011-G1i199910-200008

ELECTRIC REMOTE CONTROL MIRROR,GREEN MC.,6R8

main87940-1H011-J0i199806-200008

ELECTRIC REMOTE CONTROL MIRROR,BLUE M.M.,8L5

main87940-1H011-J1i199806-199910

ELECTRIC REMOTE CONTROL MIRROR,DK.BLUE,8M4

main87940-1H011-J2i199808-199910

ELECTRIC REMOTE CONTROL MIRROR,BLUE M.M.,8M9

main87940-1H011-J3i199910-200008

ELECTRIC REMOTE CONTROL MIRROR,DK.BLUE M.M.,8L3

main87940-1H011-K1i199808-199910

ELECTRIC REMOTE CONTROL MIRROR,VIOLET M.M.,944

main87940-1H040-A0i199704-200109

ELECTRIC REMOTE CONTROL COLORED MIRROR,SUPER WHITE 2,040

main87940-1H040-B1i199704-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,SILVER ME,199

main87940-1H040-C0i199704-199910

ELECTRIC REMOTE CONTROL,BLACK ME,205

main87940-1H040-D1i199704-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,CORAL REEF M.M.,3L6

main87940-1H040-D2i199704-199808

ELECTRIC REMOTE CONTROL,RED,3M7

main87940-1H040-D3i199808-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,SUPER RED II,3E5

main87940-1H040-D4i199910-200109

ELECTRIC REMOTE CONTROL COLORED MIRROR,RED M.M.,3N8

main87940-1H040-E0i199704-199808

ELECTRIC REMOTE CONTROL COLORED MIRROR,APRICOT M.M.,4P0

main87940-1H040-F0i199910-200109

ELECTRIC REMOTE CONTROL COLORED MIRROR,GOLD ME.,581

main87940-1H040-G1i199704-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,GREEN M.M.,6P5

main87940-1H040-G3i199910-200109

ELECTRIC REMOTE CONTROL COLORED MIRROR,GREEN MC.,6R8

main87940-1H040-J1i199704-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,BLUE M.M.,8L5

main87940-1H040-J3i199704-199910

ELECTRIC REMOTE CONTROL,DK.BLUE,8M4

main87940-1H040-J5i199808-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,BLUE M.M.,8M9

main87940-1H040-J6i199910-200109

ELECTRIC REMOTE CONTROL COLORED MIRROR,DK.BLUE M.M.,8L3

main87940-1H040-K0i199704-199808

ELECTRIC REMOTE CONTROL COLORED MIRROR,LAVENDER ME.,932

main87940-1H040-K1i199808-199910

ELECTRIC REMOTE CONTROL COLORED MIRROR,VIOLET M.M.,944

main87940-1H060i199710-199810

main87940-1H101i199808-199910

9015450005

main90154-50005

9017906070

main90179-06070

9 parts on this diagram · 1 diagram in section

MIRROR for Toyota COROLLA LB

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota COROLLA LB. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
