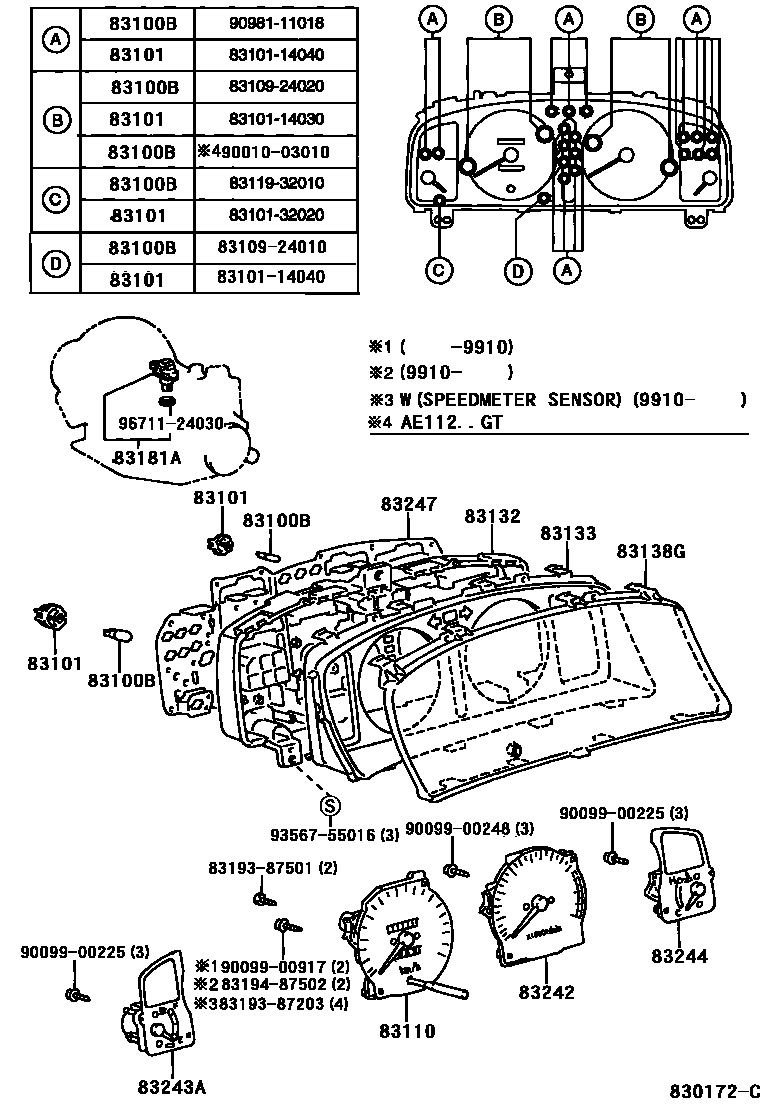

Toyota COROLLA LB — METER

0001 1W(TACHOMETER) 0002 1W/O(TACHOMETER) 0003 1W/O(SPEEDMETER SENSOR)

83100BBULB, COMBINATION METER, NO.1

main83109-24010iAE112..GCC199910-200008

12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION

main83109-24010iAE112..GCC199704-199910

12V 1.4W,GREEN CAP

main83109-24020iAE11#,EE110..GCC,GEN,NZ199704-200109

12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION

main83109-24020iAE11#..ARL199808-199910

12V3.4W W(GREEN CAP)

main83119-32010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

14V 3.0W,TYPE C:REFER TO ILLUSTRATION

main90010-03010iAE112..GT199910-200109

14V 3.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION

main90981-11018iAE11#..(GLI,XLI)..(GCC,GEN)199704-200109

12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iAE112..GCC;AE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL)..(ARL,GCC)199704-200109

TYPE B:REFER TO ILLUSTRATION

main83101-14040iEE110..GCC199704-200109

TYPE A OR TYPE D:REFER TO ILLUSTRATION

main83101-32020iAE112..GCC;AE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL)..(ARL,GCC)199704-200109

TYPE C:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-12100iAE111..GLI..GEN199704-200109

W(TACHOMETER)

main83220-12140iAE112..GCC199704-200008

W(TACHOMETER)

main83220-12180iEE110..GCC199704-200008

main83220-12200iAE112..GCC199704-200008

main83220-12210iAE11#..GEN,NZ199704-199802

main83220-12211iAE111..GLI..GEN199802-200109

main83220-12211iAE11#..(GLI,XLI)..ARL199808-200109

NEW ZEALAND SPEC

main83220-12220iEE110..GEN199704-199802

main83220-12221iEE110..GEN199802-199910

main83220-12230iEE110..GEN199704-199910

MPH & KM/H

main83220-12240iAE111..GL199704-199910

MIDDLE EAST SPEC

main83220-12430iAE11#..ARL199808-200109

main83220-12640iAE112..GT199910-200109

main83220-12650iAE112..GT199910-200109

NEW ZEALAND SPEC

83132CASE, COMBINATION METER

main83841-12600iAE111..4FC..GEN199704-200109

W(TACHOMETER)

main83841-12610iAE112..RHD;AE111..ARL;AE111..4FC..GLI..NZ;AE111..5F..(GL,GLI)199704-199910

W(TACHOMETER)

main83841-12610iAE112..ARL;AE111..4FC..ARL;AE111..RHD..5F..(ARL,GEN)199704-200109

main83841-12630iAE112..4FC..GCC199704-200008

W(TACHOMETER)

main83841-12640iAE112..5F..GCC199704-200008

W(TACHOMETER)

main83841-1A050iEE110..GCC199704-200008

main83841-1A100iAE112..GCC199704-200008

83133PLATE, COMBINATION METER, NO.1

main83811-12600iAE11#..4FC..(GCC,GEN)199704-199910

W(TACHOMETER)

main83811-12610iAE11#..ARL199710-199910

main83811-12610iAE11#..GLI,XLI199704-200109

W(TACHOMETER)

main83811-12640iAE112..GT199910-200109

main83811-12720iAE112,EE110..GCC199704-200008

83138GGLASS, COMBINATION METER

main83852-12700iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

83181ASENSOR, SPEEDOMETER

main83181-12020iAE112..GCC199704-200008

83242TACHOMETER ASSY, ENGINE

main83881-12620iAE11#..(GLI,XLI)..(ARL,GCC,GEN)199704-200109

main83881-1E710iAE112..GT199910-200109

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-12700iEE110..GEN199704-199910

main83882-12840iAE11#..ARL199808-200109

NEW ZEALAND SPEC

main83882-12840iAE11#..(GLI,XLI)..(GCC,GEN)199704-200109

W(TACHOMETER)

main83882-12840iAE11#..NZ199710-199810

main83882-12860iAE112..GT199910-200109

NEW ZEALAND SPEC

main83882-1A320iAE112,EE110..GCC199704-200008

main83882-1E130iAE11#..ARL199808-200109

main83882-1E710iAE112..GT199910-200109

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-12840iAE11#,EE110..ARL,GEN,NZ199704-200109

main83883-1A020iAE112..GT199910-200109

main83883-1A220iAE112..GCC199704-199910

MIDDLE EAST SPEC

main83883-1A220iAE112..GCC199704-200008

83247PLATE, METER CIRCUIT

main83861-1A110iAE111..5F..GLI..GEN199704-199910

W(TACHOMETER)

main83861-1A110iAE11#..ARL199808-199910

NEW ZEALAND SPEC

main83861-1A300iEE110..GCC199704-199910

main83861-1A770iAE112..GCC199704-199910

W(TACHOMETER)

main83861-1A810iAE112..GCC199704-199910

main83861-1E130iAE11#..ARL199808-199910

main83861-1E390iAE111..4FC..GEN199910-200109

main83861-1E410iAE111..5F;AE112..ARL;AE111..4FC..ARL199910-200109

main83861-1E500iAE112..4FC..GCC199910-200008

W(TACHOMETER)

main83861-1E510iAE112..5F..GCC199910-200008

W(TACHOMETER)

main83861-1E580iEE110199910-200008

main83861-1E670iAE112..GCC199910-200008

8319387203

main83193-87203

8319387501

main83193-87501

8319487502

main83194-87502

9009900225

main90099-00225

9009900248

main90099-00248

9009900917

main90099-00917

9356755016

main93567-55016

9671124030

main96711-24030
