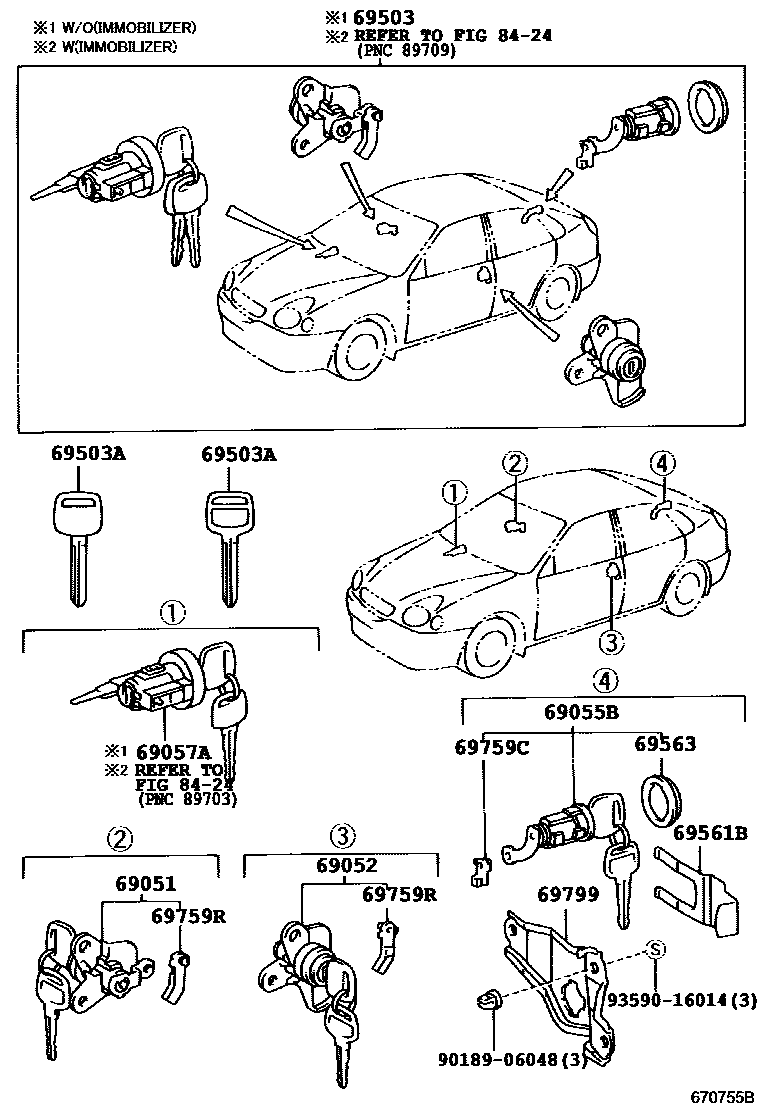

Toyota COROLLA LB — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055BCYLINDER & KEY SET, BACK DOOR LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
MASTER KEY,W(*68)
MASTER KEY
69561BRETAINER, BACK DOOR LOCK CYLINDER
69563PAD, BACK DOOR LOCK CYLINDER
69759CSNAP, BACK DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
RH
LH
69799BRACKET, BACK DOOR LOCK CYLINDER
8424ANTI-THEFT DEVICE
9018906048
main90189-06048
9359016014
main93590-16014
14 parts on this diagram · 1 diagram in section
LOCK CYLINDER SET for Toyota COROLLA LB
This section contains 14 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA LB. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
