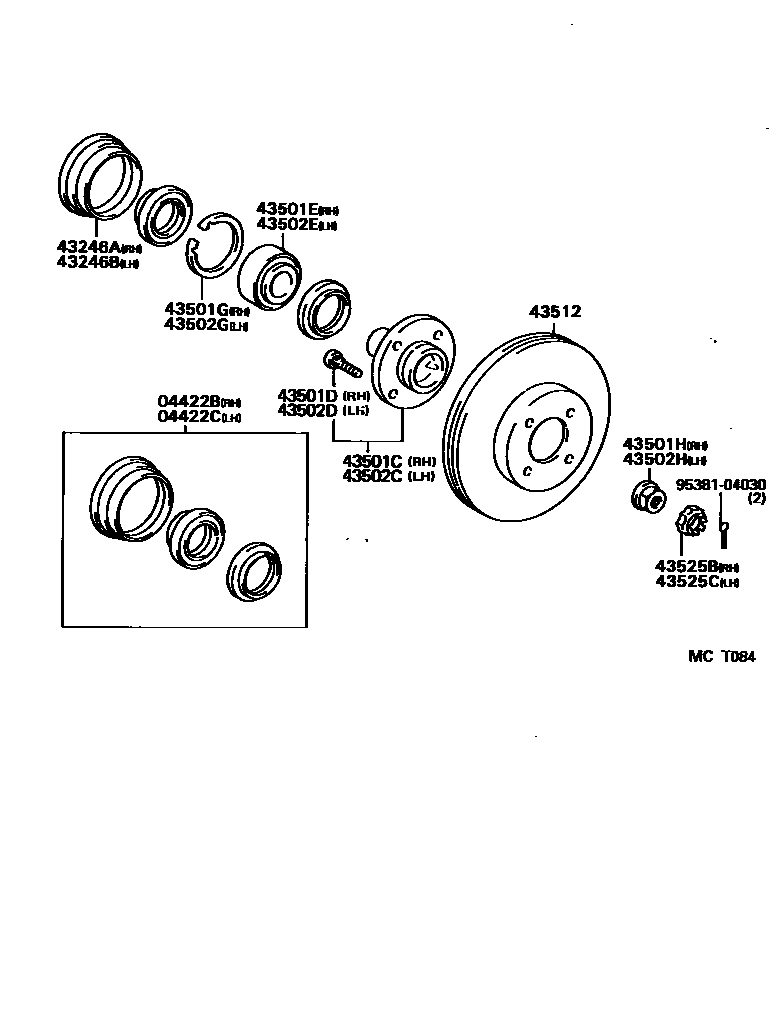

Toyota COROLLA LB — FRONT AXLE HUB

04422BSEAL KIT, FRONT AXLE OIL, RH

main04422-12091i199704-199910

main04422-12100i199704-200109

W(ABS)

04422CSEAL KIT,FRONT AXLE OIL, LH

main04422-12091i199704-199910

main04422-12100i199704-199910

W(ABS)

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-12020i199704-200109

W(ABS)

main43246-12040i199704-200109

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-12020i199704-200109

W(ABS)

main43246-12040i199704-200109

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-12090i199704-200109

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i199704-200109

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-38006i199704-200109

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001i199704-200109

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-22001i199709-200109

main90179-22020i199704-199709

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-12090i199704-199910

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i199704-199910

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-38006i199704-199910

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001i199704-200109

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-22001i199709-200109

main90179-22020i199704-199709

43512DISC, FRONT

main43512-12330×2i199704-200008

main43512-12370×2i199710-199810

main43512-12550×2i199808-199910

main43512-12580×2i199704-199910

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030i199704-200109

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030i199704-200109

9538104030

main95381-04030

18 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA LB

This section contains 18 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA LB. Key components include: SEAL KIT, FRONT AXLE OIL, RH, SEAL KIT,FRONT AXLE OIL, LH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH.
