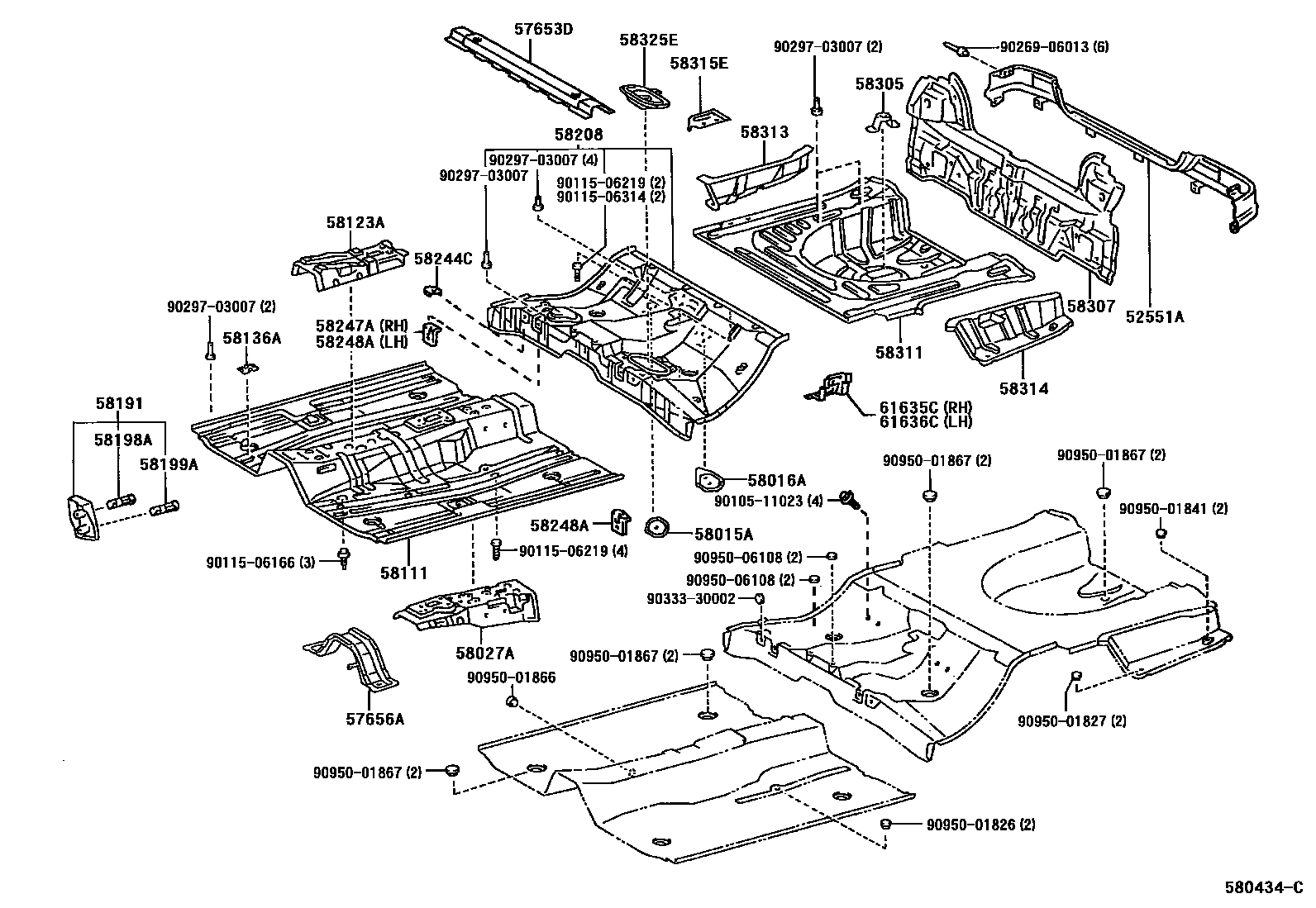

Toyota COROLLA LB — FLOOR PAN & LOWER BACK PANEL

52551AFILLER, REAR BUMPER

main52551-12050iAE11#,EE110199704-199910

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-12050iAE11#,EE110..GCC,GEN199704-199910

main57653-12070iAE11#..ARL199808-200109

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-12080iAE11#,EE110199910-200109

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12040iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12010iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12121iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58111PAN, FRONT FLOOR

main58111-12262iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12060iAE11#,EE110199704-199910

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12030×2iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58191FOOTREST, FRONT FLOOR

main58191-12110iAE11#..RHD..(ARL,GEN)199704-200109

main58192-12060iAE112,EE110..GCC199704-200008

58198ACLIP, FOOTREST, NO.1

main58198-12030iAE11#,EE110..RHD199704-199910

main58198-12040×2iAE112,EE110..GCC199704-200008

58199ACLIP, FOOTREST, NO.2

main58199-12020iAE11#..RHD..(ARL,GEN)199704-200109

58208PAN, CENTER FLOOR

main58211-12911iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-13030×6iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-13050iAE11#,EE110199704-199910

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-13050iAE11#,EE110199704-199910

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-12040iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A907iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58311PAN, REAR FLOOR

main58311-12210iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58313PANEL, REAR FLOOR SIDE, RH

main58313-12904iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58314PANEL, REAR FLOOR SIDE, LH

main58314-12250iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-12070iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12100iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

61635CBRACE, QUARTER WHEEL HOUSE, RH

main61635-12060iAE111..GLI..GEN;AE112,EE110..GCC199704-199907

main61635-12061iAE11#,EE110..GCC,GEN199907-199910

main61635-12100iAE11#..NZ199710-199805

main61635-12101iAE11#..ARL199808-200109

61636CBRACE, QUARTER WHEEL HOUSE, LH

main61636-12070iAE111..GLI..GEN;AE112,EE110..GCC199704-199907

main61636-12071iEE110..GCC;AE11#..(GLI,XLI)..(GCC,GEN)199907-200109

main61636-12100iAE11#..NZ199710-199805

main61636-12101iAE11#..ARL199808-200109

9010511023

main90105-11023

9011506166

main90115-06166

9011506219

main90115-06219

9011506314

main90115-06314

9026906013

main90269-06013

9029703007

main90297-03007

9033330002

main90333-30002

9095001826

main90950-01826

9095001827

main90950-01827

9095001841

main90950-01841

9095001866

main90950-01866

9095001867

main90950-01867

9095006108

main90950-06108

38 parts on this diagram · 1 diagram in section
