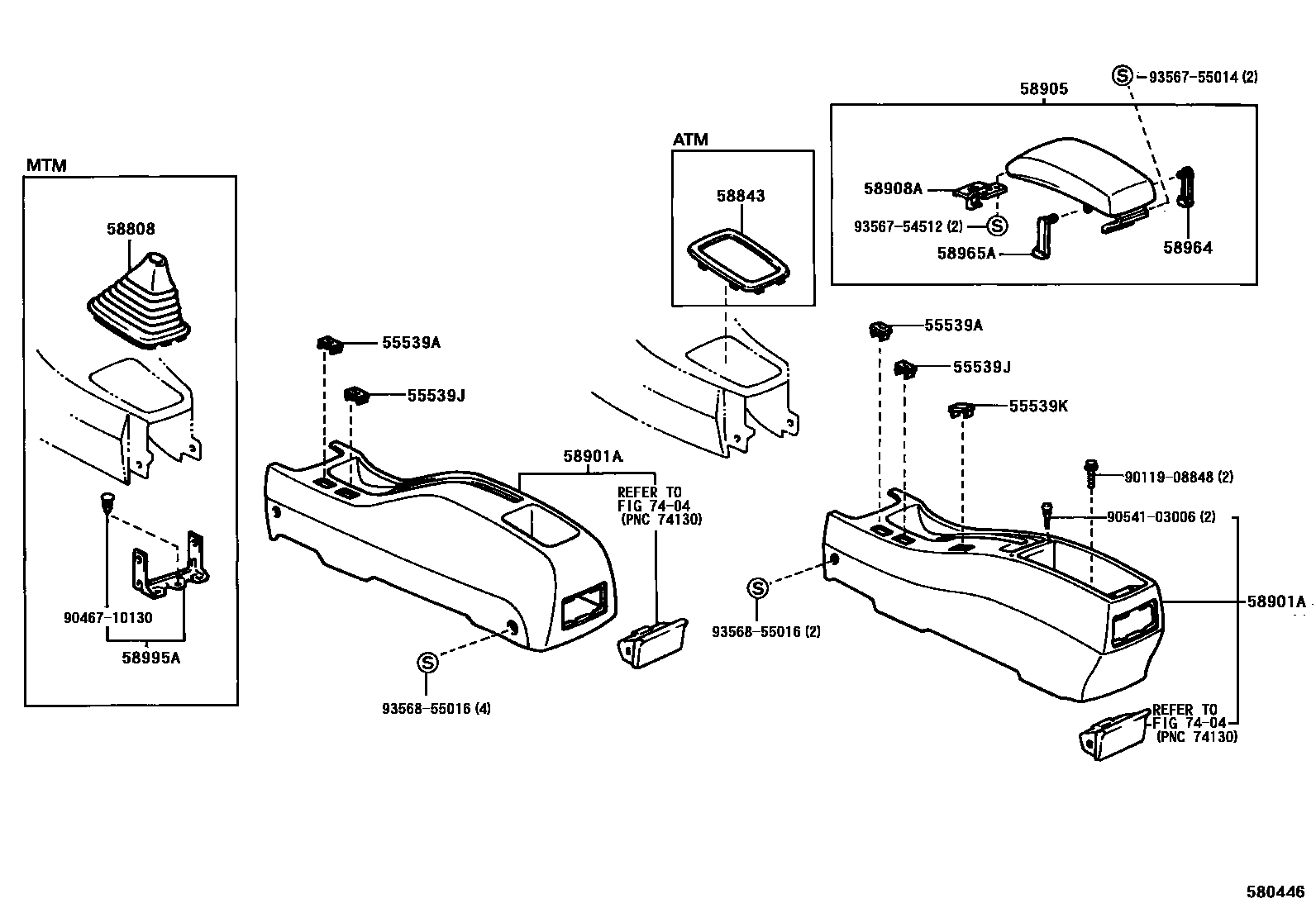

Toyota COROLLA LB — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-B4iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199704-200109

MD.CHARCOAL,TRIM1#

main55539-20020-P0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

55539JCOVER, SPARE SWITCH HOLE

main55539-12120-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

sub55539-32010

main55539-12120-B2iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199704-200109

MD.CHARCOAL,TRIM1#

sub55539-32010

55539KCOVER, SPARE SWITCH HOLE

main55539-12120-B0iAE112..GT199910-200109

SHADOW GRAY,TRIM1#

sub55539-32010

main55539-12120-B2iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199704-200109

MD.CHARCOAL,TRIM1#

sub55539-32010

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12112-B1iAE11#,EE110..5F199704-199910

DK.CHARCOAL,TRIM1#

main58808-12112-P0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

58843BEZEL, SHIFTING HOLE

main58843-12090-B0iAE112..4FC..GT199910-200109

SHADOW GRAY,TRIM1#

sub58843-12100

main58843-12090-B3iAE11#..4FC..(GLI,XLI)..(ARL,GCC,GEN)199704-200109

DK.CHARCOAL,TRIM1#

sub58843-12100

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12220-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main58901-12220-B1iAE111..RHD..(ARL,GEN);AE112,EE110..(GLI,XL,XLI)..(ARL,GCC)199704-200109

MD.CHARCOAL,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12160-B0iAE112..XLI..ARL199904-199906

AUSTRALIA,SHADOW GRAY,TRIM12

main58905-12160-B1iEE110;AE11#..ARL,GCC,NZ199704-199910

MD.CHARCOAL,TRIM1#

main58905-12240-B1iAE111..GEN199704-199910

W(DOUBLE CONSOLE BOX),MD.CHARCOAL,TRIM1#

main58905-12320-B0iAE111..GEN199910-200109

MEDIUM CHARCOAL,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32020iAE111..GEN199704-199910

sub58908-12080

main58908-32040iEE110;AE11#..ARL,GCC,NZ199704-199910

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12040iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12080iAE11#,EE110..5F199704-199910

7404

9011908848

main90119-08848

9046710130

main90467-10130

9054103006

main90541-03006

9356754512

main93567-54512

9356755014

main93567-55014

9356855016

main93568-55016

18 parts on this diagram · 1 diagram in section
