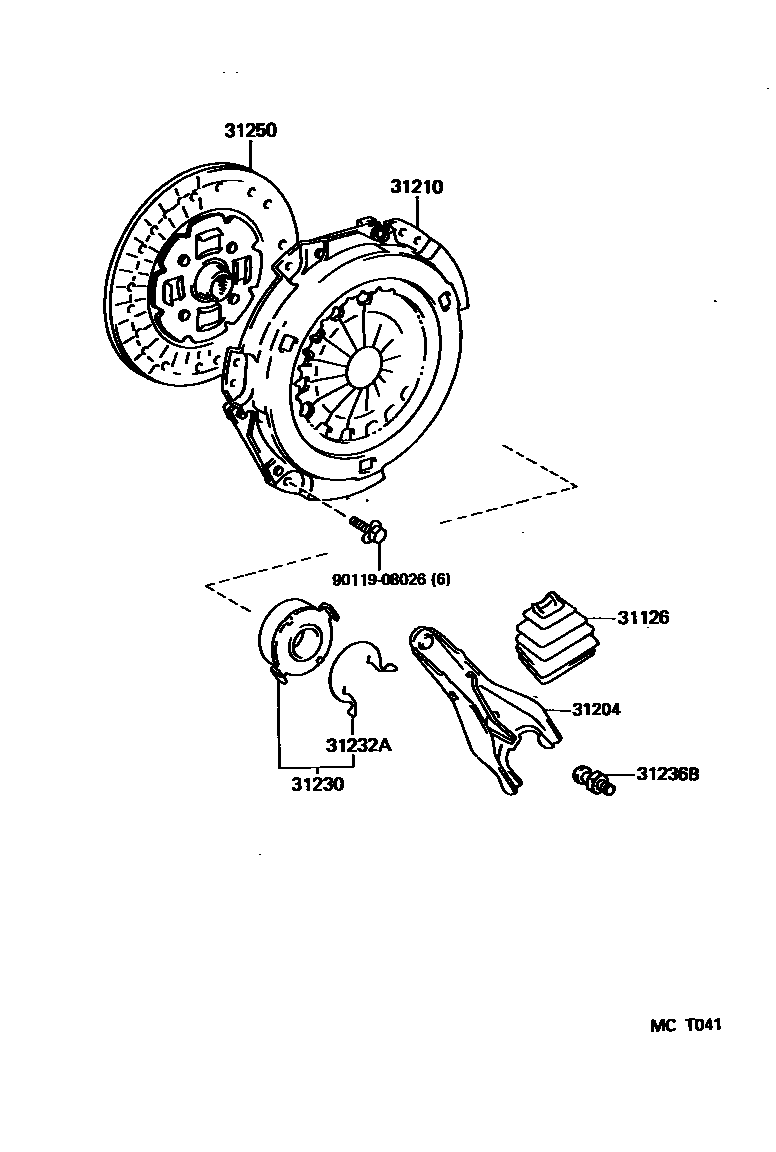

Toyota COROLLA LB — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAE11#,EE110..5F199704-199910

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iEE110..GCC199704-200008

main31204-17010iAE11#..5F..(GLI,GT,XLI)..(ARL,GCC,GEN)199704-200109

31210COVER ASSY, CLUTCH

main31210-12152iAE112..5F199704-199910

main31210-12180iEE110..GCC199704-200008

sub31210-12181

main31210-12201iAE111..5F199704-199910

sub31210-52050

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iEE110..GCC199704-199907

sub31230-16061

main31230-12170iAE11#..5F199704-199910

main31230-12171iAE11#..5F200101-200109

sub31230-12191

main31230-52010iEE110199907-199910

sub31230-52011

31232ACLIP, RELEASE BEARING HUB

main31232-12040iEE110199704-199910

TYPE D:REFER TO ILLUSTRATION

main31232-12070iAE11#..5F..ARL199808-200109

TYPE C:REFER TO ILLUSTRATION

main31232-16031iEE110..GCC199704-200008

TYPE E:REFER TO ILLUSTRATION

main31232-52010iEE110..GCC199907-200008

TYPE F:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-12011iEE110..GCC199704-200008

main31236-12020iAE11#..5F199704-199910

31250DISC ASSY, CLUTCH

main31250-12360iAE112..5F..(ARL,GCC)199704-200109

sub31250-12361

main31250-12370iAE111..5F199704-199708

main31250-12390iEE110..GCC199704-199804

main31250-12391iEE110..GCC199804-200008

sub31250-12392

main31250-20280iAE111..5F199708-199910

sub31250-12570

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
