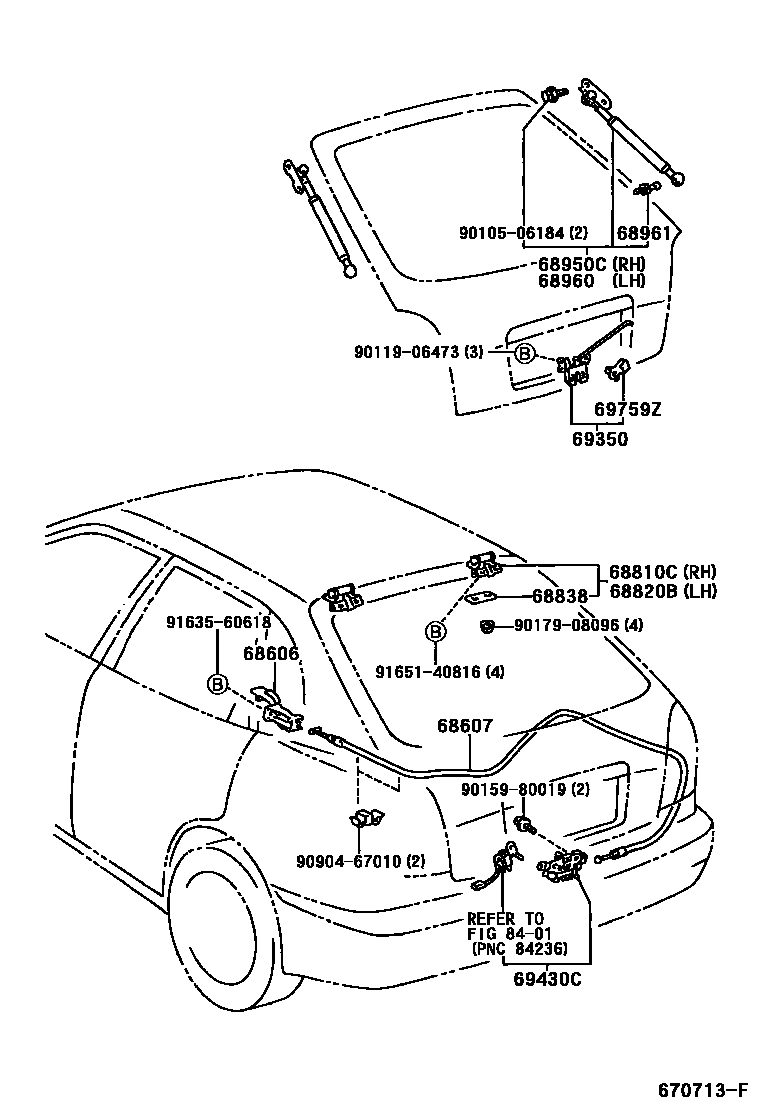

Toyota COROLLA LB — BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68810CHINGE ASSY, BACK DOOR, RH
68820BHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
68950CSTAY ASSY, BACK DOOR, RH
W(REAR SPOILER)
68960STAY ASSY, BACK DOOR, LH
W(REAR SPOILER)
68961BOLT, BACK DOOR STAY
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
69759ZSNAP, DOOR LOCK CONTROL LINK
8401SWITCH & RELAY & COMPUTER
9010506184
main90105-06184
9011906473
main90119-06473
9015980019
main90159-80019
9017908096
main90179-08096
9090467010
main90904-67010
9163560618
main91635-60618
9165140816
main91651-40816
19 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota COROLLA LB
This section contains 19 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA LB. Key components include: LEVER SUB-ASSY, BACK DOOR LOCK OPEN, CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1.
