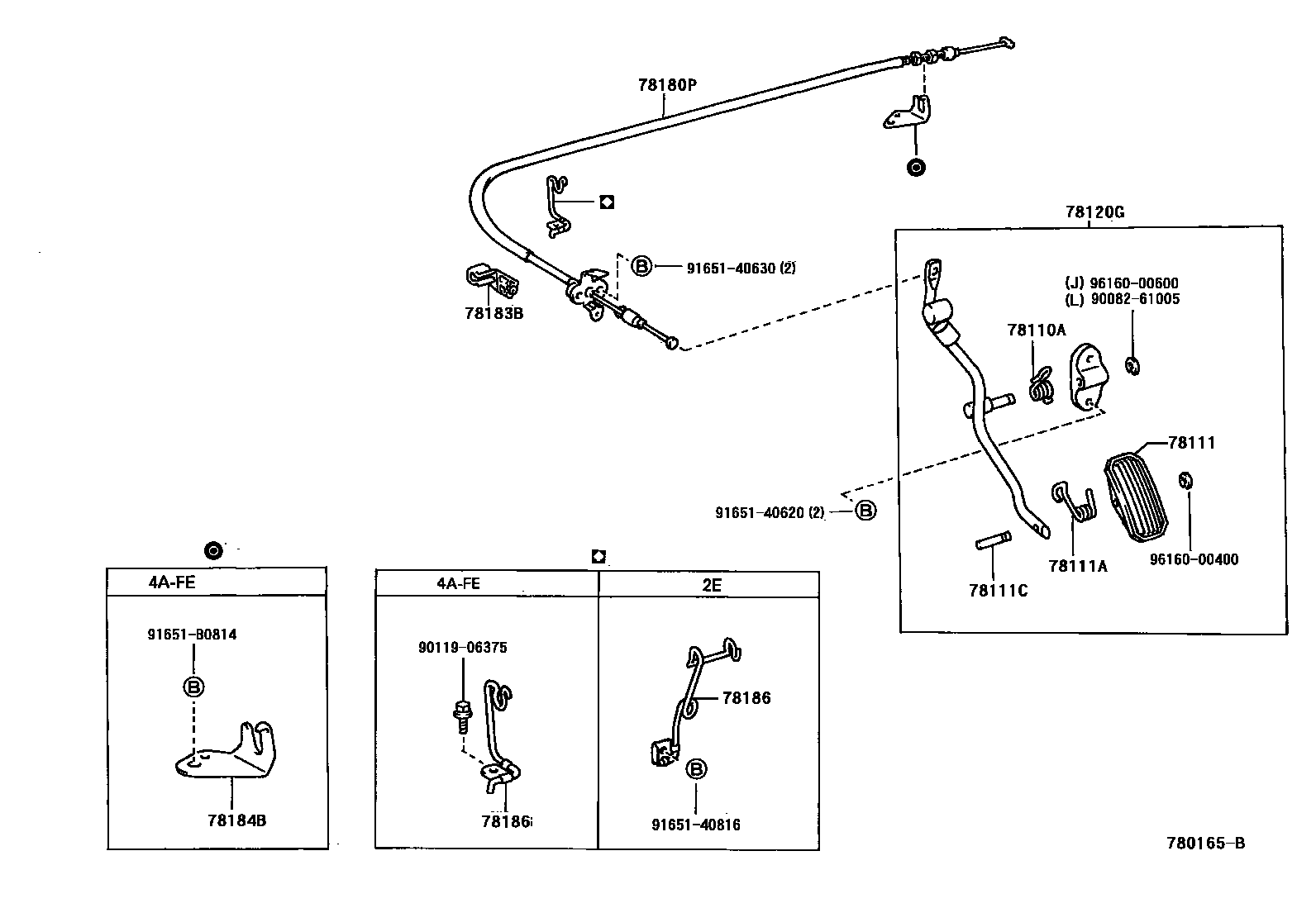

Toyota COROLLA LB — ACCELERATOR LINK

0001 1 0002 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE112,EE110..ARL,GCC;AE111..RHD..(ARL,GEN)199704-200109

78111PEDAL, ACCELERATOR

main78111-20060iAE112,EE110..GCC199910-200008

main78111-32010iAE11#..RHD199910-200109

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iAE11#..RHD..(ARL,GEN)199704-200109

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE11#..RHD..(ARL,GEN)199704-200109

main90254-04019iAE112,EE110..GCC199910-200008

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12160iAE11#..RHD..(ARL,GEN)199704-200109

main78120-12230iAE112,EE110..GCC199704-200008

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1A420iAE11#..RHD199704-199910

main78180-1A470iEE110..GEN199704-199910

main78180-1A520iAE112..GCC199704-199910

main78180-1A560iAE111..GL199704-199910

main78180-1A590iEE110..GCC199704-200008

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12160iAE11#..RHD..(ARL,GEN)199704-200109

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78024-12041iAE112..GCC199704-199910

main78184-12230iAE111..GL199704-199910

main78184-12280iAE11#..RHD199704-199910

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12170iEE110..GCC199704-200008

main78186-12230iAE111..GL199704-199910

main78186-12290iAE11#..RHD..(ARL,GEN)199704-200109

main78186-12300iEE110..GEN199704-199910

9008261005

main90082-61005

9011906375

main90119-06375

9165140620

main91651-40620

9165140630

main91651-40630

9165140816

main91651-40816

91651B0814

main91651-B0814

9616000400

main96160-00400

9616000600

main96160-00600

17 parts on this diagram · 2 diagrams in section
