Toyota COROLLA JPP — WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-12310i200808-200905

main82375-12311i200906-201012

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12A20i200712-200902

main85110-12B30i200902-201012

85160LINK ASSY, WINDSHIELD WIPER

main85150-12A70i200712-201012

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2i200712-201012

85211BARM, FRONT WIPER, RH

main85211-12560i200712-201012

85212ABLADE, FR WIPER, RH

main85212-28170i200712-201012

85214ARUBBER, WIPER, RH

main85214-28090i200712-201012

85214BRUBBER, WIPER, LH

main85214-68020i200712-201012

85221BARM, FRONT WIPER, LH

main85221-12500i200712-201012

85222ABLADE, FR WIPER, LH

main85222-12830i200712-201012

9011906864

main90119-06864

9018210006

main90182-10006

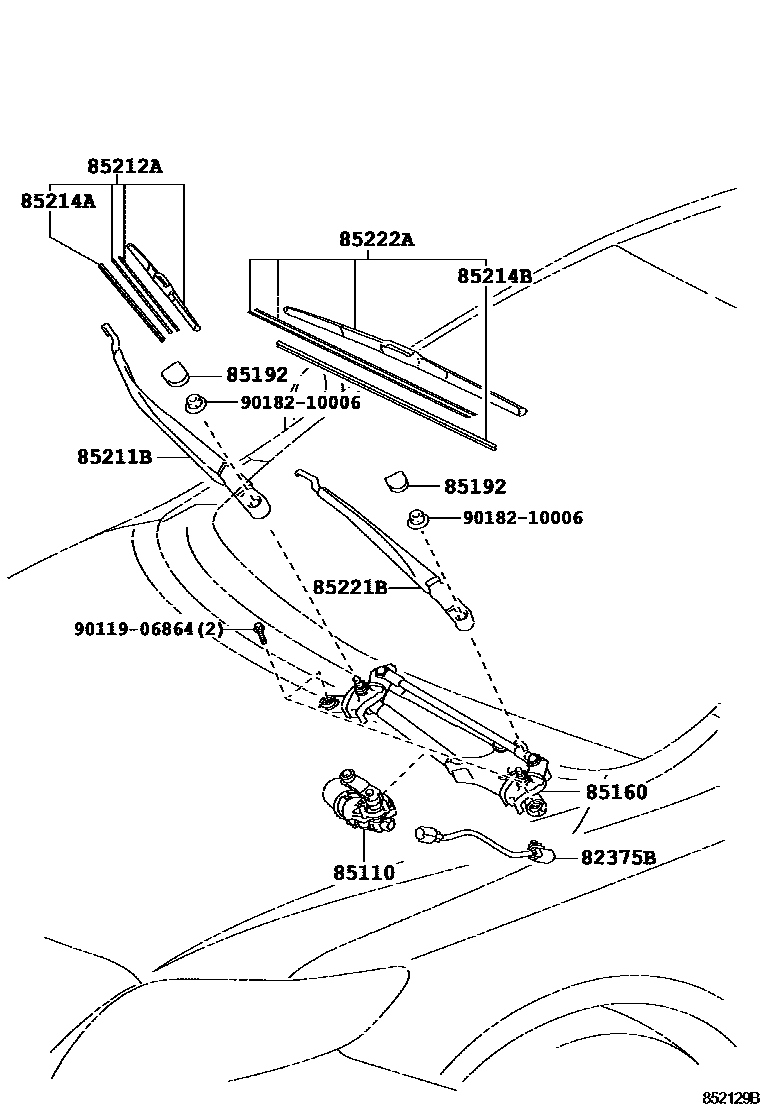

12 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota COROLLA JPP

This section contains 12 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA JPP. Key components include: WIRE, WIPER MOTOR, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
