Toyota COROLLA JPP — WINDSHIELD WASHER

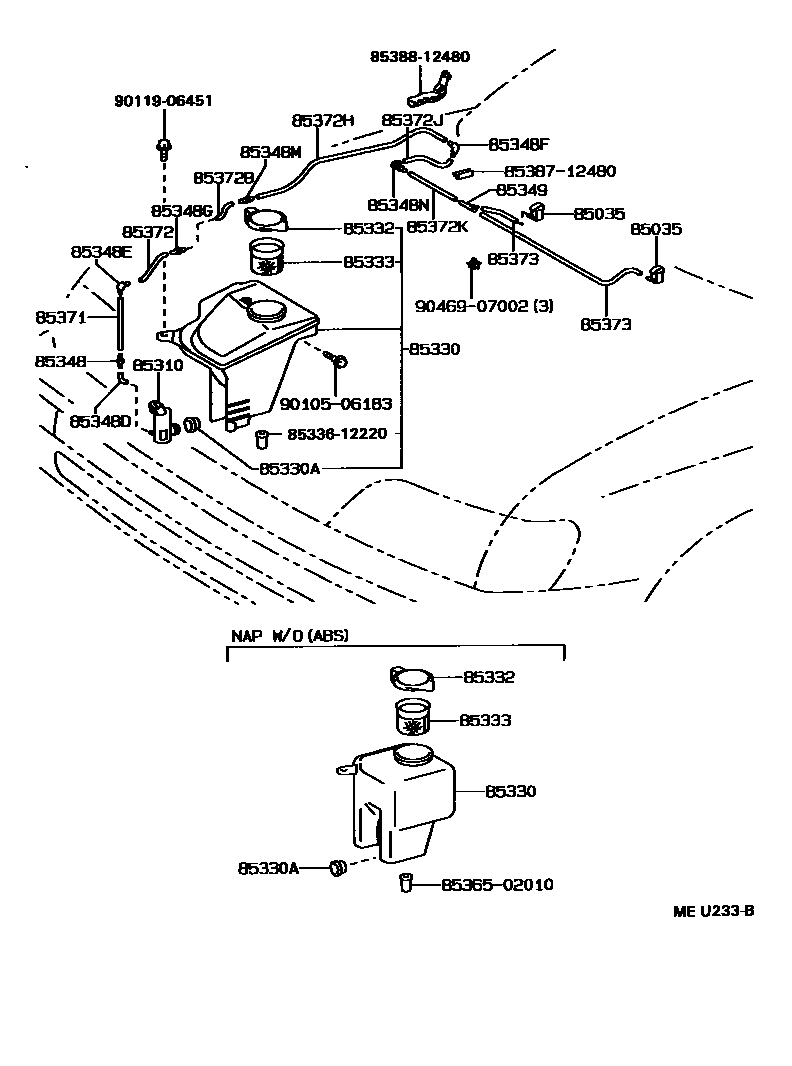

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-12030×2i199206-199608
sub85381-12050
main85381-12090×2i199206-199608
COLD SPEC
sub85381-20120
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-20190i199206-199608
COLD SPEC
sub85330-33020
main85310-20210i199206-199608
sub85330-10280
main85330-12280i199206-199608
W(*RW)
main85330-33010i199206-199608
COLD SPEC & W(*RW)
sub85330-44010
85330JAR ASSY, WINDSHIELD WASHER
main85315-12220i199206-199608
sub85315-12221
main85315-12390i199206-199608
COLD SPEC
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i199206
85332CAP, WINDSHIELD WASHER JAR
main85316-20300i199310
main85316-20340i199206-199310
85333FILTER, WINDSHIELD WASHER JAR
main85312-33010i199206-199608
COLD SPEC
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-10260i199206
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85336-12230i199206-199608
main85336-12410i199206-199608
COLD SPEC
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85317-12230i199206-199608
main85317-12410i199206-199608
COLD SPEC
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
main85317-12230i199206
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85317-12220i199206-199608
main85319-12410i199206-199608
COLD SPEC
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85334-22470i199206
main85375-10260i199206-199608
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
main85378-12480i199206
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-14390i199206
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33075i199206-199608
L=1100(*H,L=95),COLD SPEC
main90446-07001i199206-199608
L=1800(*H,L=100)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33075i199206-199608
L=1100(*H,L=100),COLD SPEC
main90446-07001i199206-199608
L=1800(*H,L=100)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33080i199206-199608
L=1450(*H,L=70)
main90099-33221i199206-199608
L=2000(*H,L=1100),COLD SPEC
sub90099-33334
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080i199206
L=1450(*H,L=100)
main90446-07001i199206-199608
L=1800(*H,L=1140)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
main90099-33080i199206
L=1450(*H,L=240)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
main90099-33080i199206
L=1450(*H,L=300)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080i199206
L=1450(*H,L=85),LH,RH
8533612220SWITCH ASSY, RESERVE TANK LEVEL WARNING
main85336-12220
8536502010INSULATOR, WINDSHIELD WASHER JAR
main85365-02010
8538712480CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-12480
8538812480CLAMP NO.2 (FOR WINDSEIELD WASHER)
main85388-12480
9010506183
main90105-06183
9011906451
main90119-06451
9046907002
main90469-07002

28 parts on this diagram · 1 diagram in section
