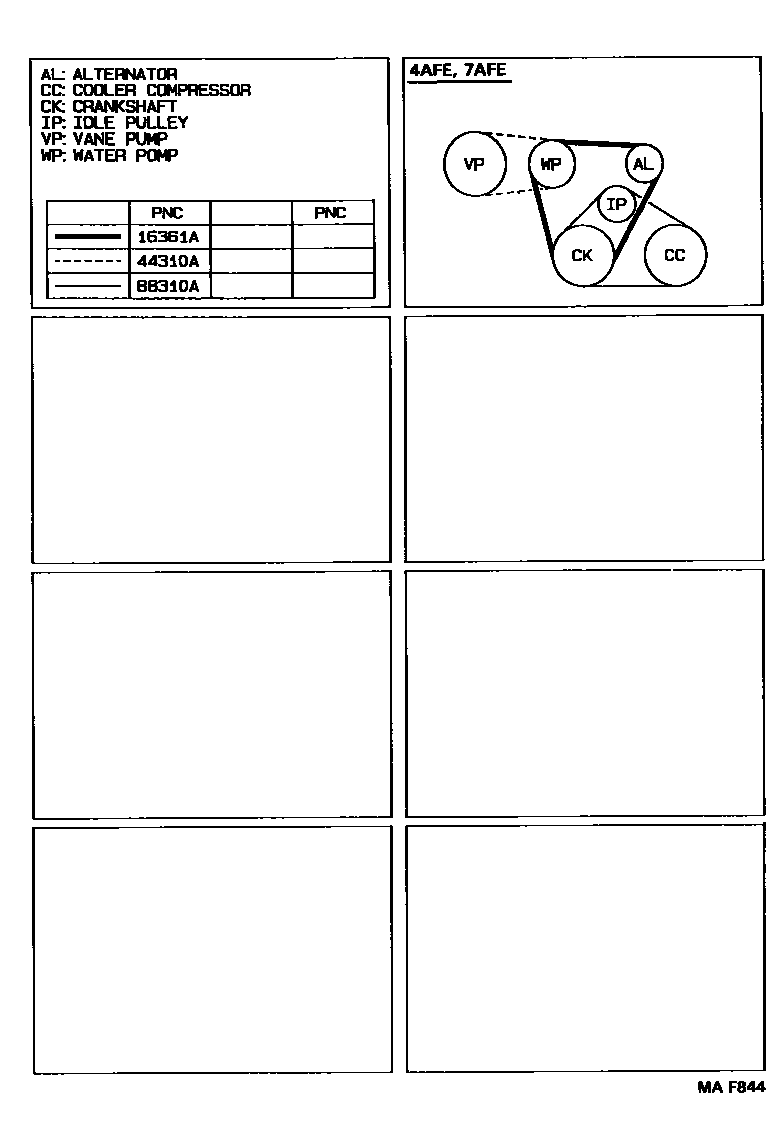

Toyota COROLLA JPP — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i199301

(L)

main99365-20970i199206

(J)

44310ABELT, V(FOR VANE PUMP)

main99363-50630i199206-199305

main99363-80630i199305-199605

main99363-90630i199605

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90082-93002i199508

main90916-02354i199210-199305

MITSUBOSHI; MITSUBOSHI OR FINLAND & DENMARK SPEC & DOP,MITSUBOSHI

main99364-20870i199508

DOP

main99364-70860i199210-199305

BANDO; MITSUBOSHI OR FINLAND & DENMARK SPEC & DOP,BANDO

main99364-80860i199305-199308

BANDO; MITSUBOSHI OR FINLAND & DENMARK SPEC & DOP,BANDO

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA JPP

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota COROLLA JPP. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
