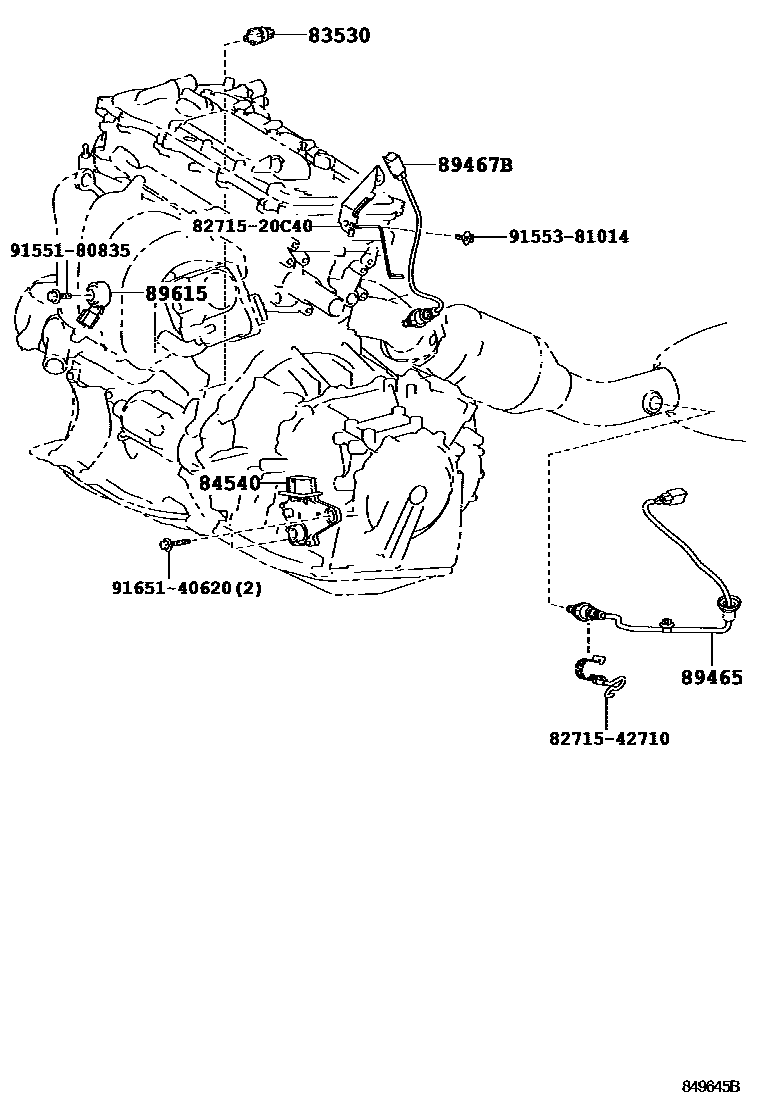

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZRE142..JPP201211-201308

YAZAKI

sub83530-12060

main83530-28020iZRE142..JPP201211-201308

DENSO

84540SWITCH ASSY, NEUTRAL START

main84540-46010iZRE142..JPP200712-201012

89465SENSOR, OXYGEN

main89465-12840iZRE142..JPP201012-201308

89467BSENSOR, AIR FUEL RATIO

main89467-02070iZRE142..JPP201012-201308

(L)

main89467-12030iZRE142..JPP200712-201012

main89467-52060iZRE142..JPP201012-201308

(J)

89615SENSOR, KNOCK CONTROL

main89615-20090iZRE142..JPP200712-201012

8271520C40BRACKET,WIRING HARNESS CLAMP

main82715-20C40

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

9155180835

main91551-80835

9155381014

main91553-81014

9165140620

main91651-40620

10 parts on this diagram · 8 diagrams in section
