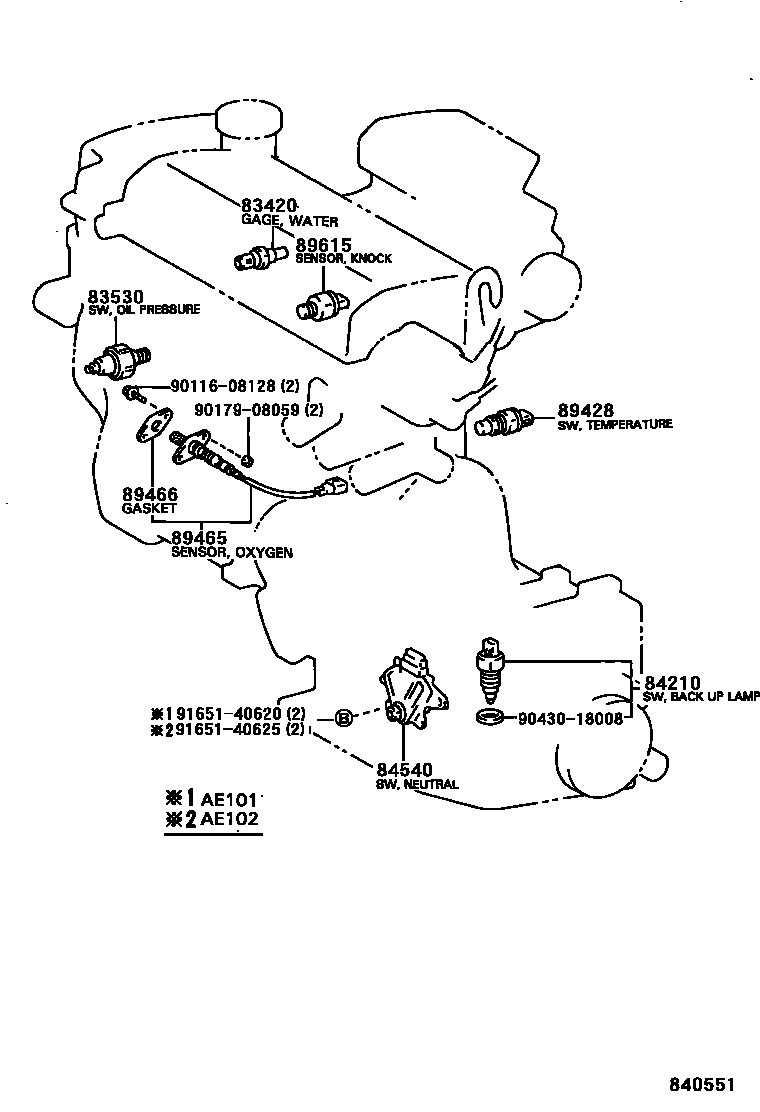

Toyota COROLLA JPP — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSAXLE 0002 1ENGINE ROOM 0003 1INSTRUMENT PANEL SWITCH 0004 1COEL LH 0005 1COWL RH 0006 1COMBINATION SWITCH 0007 1ROOF & FRONT DOOR 0008 1FLOOR,REAR DOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16050iAE10#..JPP199212-199411

NIPPONDENSO

main83420-20040iAE10#..JPP199402

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30090iAE10#..JPP199206

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE10#..JPP..5F199206

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAE102..JPP..4FC199206

TOKAIRIKA

main84540-12210iAE102..JPP..4FC199206

MATSUSHITA

main84540-16040iAE101..JPP..3FC199206-199508

main84540-16050iAE101..JPP..3FC199508

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAE10#..JPP199206

89465SENSOR, OXYGEN

main89465-12380iAE102..JPP199408-199508

FR

main89465-12390iAE10#..JPP199508

RR

main89465-19535iAE101..JPP199408-199508

main89465-19545iAE101..JPP..USA199408-199508

CALIFORNIA SPEC,FR

main89465-19555iAE10#..JPP..USA199206-199408

CALIFORNIA SPEC,RR

89466GASKET, OXYGEN SENSOR

main89466-12020iAE10#..JPP..USA199206-199408

CALIFORNIA SPEC,RR

main89466-20020iAE10#..JPP199206-199408

CALIFORNIA SPEC,FR

89615SENSOR, KNOCK CONTROL

main89615-12030iAE102..JPP199206-199704

TOYOTA

sub89615-22050

main89615-22030iAE102..JPP199206-199704

MATSUSHITA

9011608128

main90116-08128

9017908059

main90179-08059

9043018008

main90430-18008

9165140620

main91651-40620

9165140625

main91651-40625

13 parts on this diagram · 8 diagrams in section
