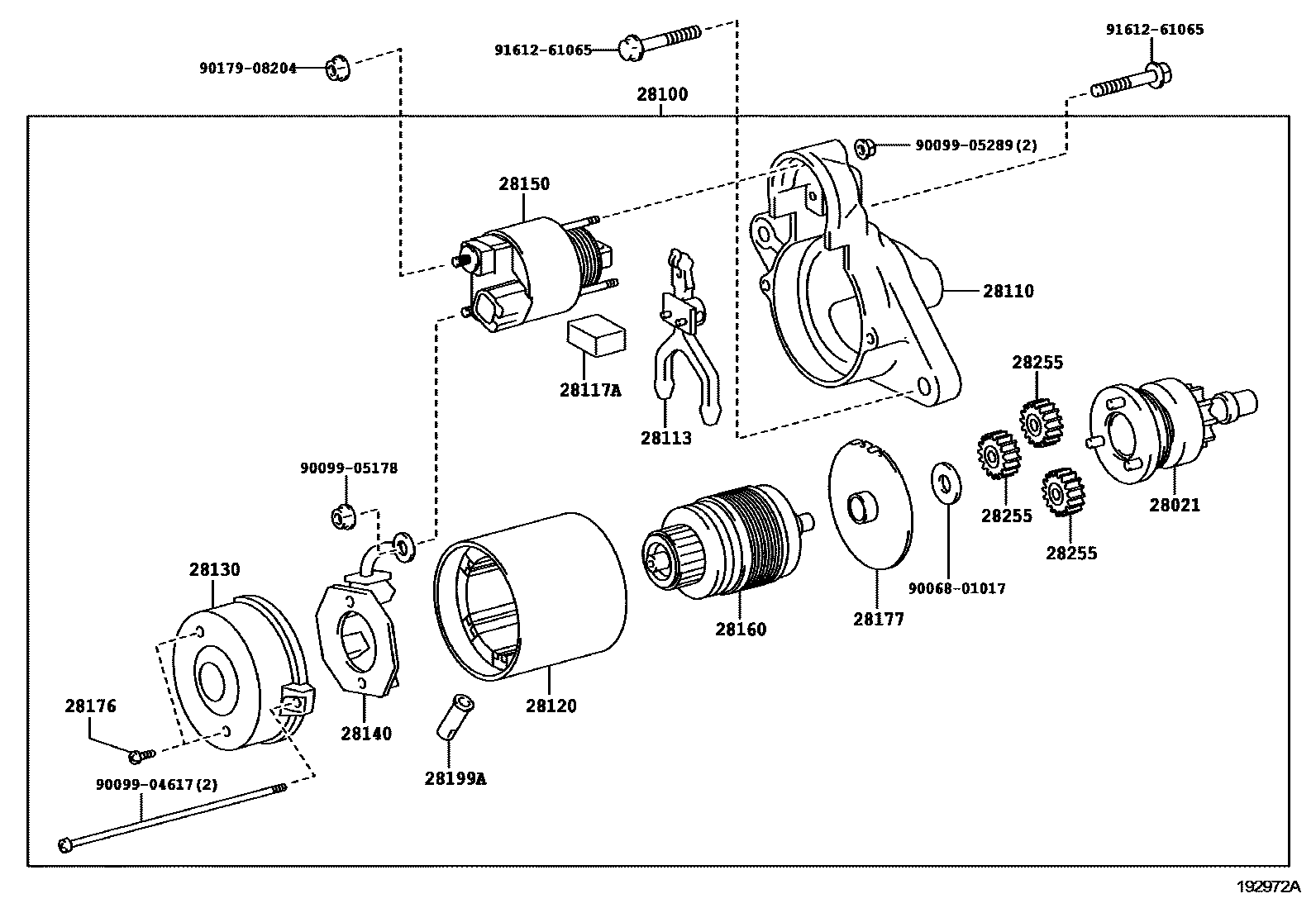

Toyota COROLLA JPP — STARTER

0001 112V 1.6KW 0002 1 0003 112V 1.6KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i2ZRFE..ZRE142..JPP201209-201308

main28021-37050i2ZRFE..ZRE142..JPP200712-201012

28100STARTER ASSY

main28100-37050i2ZRFE..ZRE142..JPP200712-200908

12V 1.6KW

main28100-37051i2ZRFE..ZRE142..JPP200909-201012

12V 1.6KW

main28100-37052i2ZRFE..ZRE142..JPP201108-201208

12V 1.6KW

main28100-37120i2ZRFE..ZRE142..JPP201209-201308

12V 1.6KW

28110HOUSING ASSY, STARTER DRIVE

main28110-37040i2ZRFE..ZRE142..JPP201209-201308

main28110-37050i2ZRFE..ZRE142..JPP200712-200909

28113LEVER, STARTER PINION DRIVE

main28113-37050i2ZRFE..ZRE142..JPP200712-200909

28117ASEAL, RUBBER

main28117-37050i2ZRFE..ZRE142..JPP200712-200909

28120YOKE ASSY, STARTER

main28120-28060i2ZRFE..ZRE142..JPP201209-201308

main28120-37050i2ZRFE..ZRE142..JPP200712-201012

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-37050i2ZRFE..ZRE142..JPP200712-200909

main28130-37120i2ZRFE..ZRE142..JPP201209-201308

28140HOLDER ASSY, STARTER BRUSH

main28140-37050i2ZRFE..ZRE142..JPP200712-201012

28150SWITCH ASSY, MAGNET STARTER

main28150-37050i2ZRFE..ZRE142..JPP200712-201012

28160ARMATURE ASSY, STARTER

main28160-21060i2ZRFE..ZRE142..JPP201209-201308

main28160-37050i2ZRFE..ZRE142..JPP201012-201209

sub28160-75210

28176SCREW, STARTER

main90099-00323×2i2ZRFE..ZRE142..JPP200712-200909

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2ZRFE..ZRE142..JPP201209-201308

main28177-37050i2ZRFE..ZRE142..JPP200712-200909

28199APROTECTOR, DUST STARTER

main28199-37050i2ZRFE..ZRE142..JPP200712-200909

28255GEAR, PLANET

main28255-28040×3i2ZRFE..ZRE142..JPP201209-201308

main28255-37050×3i2ZRFE..ZRE142..JPP200712-200909

9006801017

main90068-01017

9009904617

main90099-04617

9009905178

main90099-05178

9009905289

main90099-05289

9017908204

main90179-08204

9161261065

main91612-61065

20 parts on this diagram · 3 diagrams in section
