Toyota COROLLA JPP — STANDARD TOOL

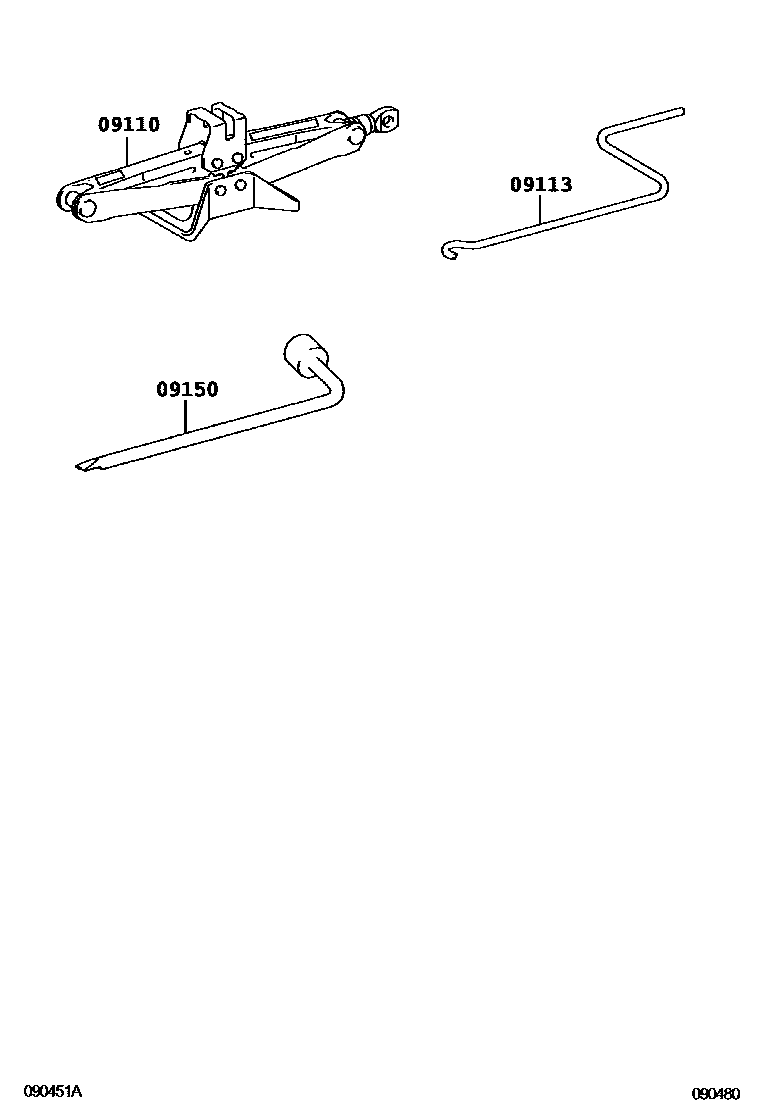

Parts diagram

09110JACK ASSY

main09111-12160i200712-200902

main09111-12210i200903-201008

main09111-12230i201009-201308

09113HANDLE, JACK

main09113-20050i201201-201308

main09113-52010i200712-201112

09150WRENCH, HUB NUT BOX

main09150-35070i200712-201308

3 parts on this diagram · 1 diagram in section
