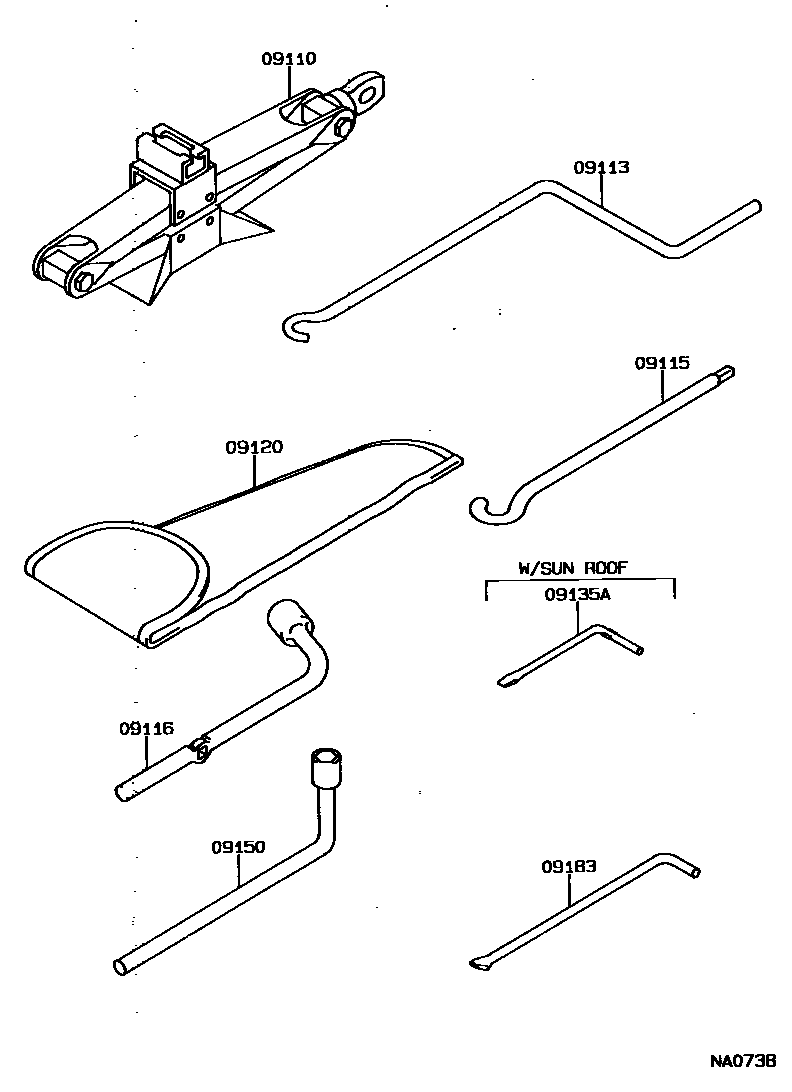

Toyota COROLLA JPP — STANDARD TOOL

09110JACK ASSY

main09111-12090i198710-199206

main09111-12100i198708-199107

main09111-12130i199107-199206

09113HANDLE, JACK

main09113-12010i198710-199206

main09113-20030i198708-199206

09115ROD SUB-ASSY, JACK HANDLE

main09115-16030i198802-199009

09116LEVER, JACK HANDLE

main09116-16010i198802-199009

09120BAG, TOOL

main09120-12030i198708-198810

main09120-32010i198810-199009

09135ABIT, SCREW DRIVER

main09135-00012i198708-199106

09150WRENCH, HUB NUT BOX

main09150-26010i198708-199206

09183WRENCH, WHEEL CAP

main09183-00010i198708-199206

8 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota COROLLA JPP

This section contains 8 genuine Toyota parts for the STANDARD TOOL system of the Toyota COROLLA JPP. Key components include: JACK ASSY, HANDLE, JACK, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE, BAG, TOOL.
