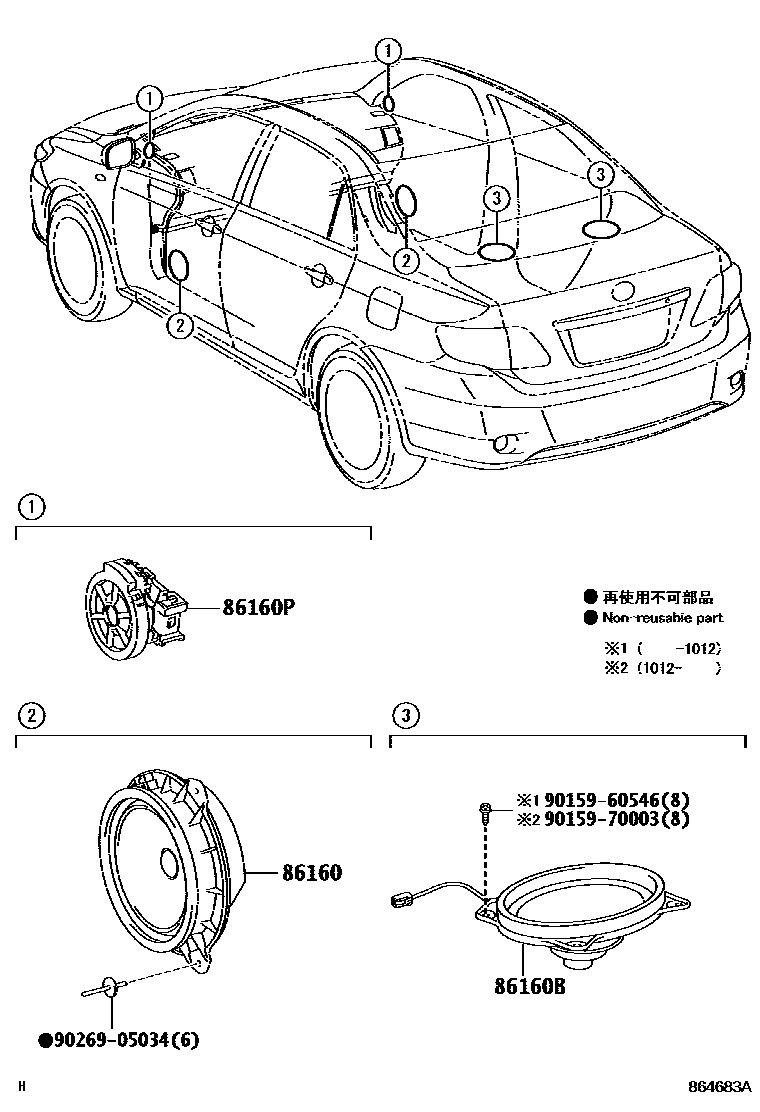

Toyota COROLLA JPP — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-2B580iZRE142..JPP200712-201106

main86160-52330iZRE142..JPP201107-201308

sub86160-52331

86160BSPEAKER ASSY, REAR

main86160-1A180iZRE142..JPP200712-201308

86160PSPEAKER ASSY, FRONT NO.2

main86160-52340iZRE142..JPP..LE201109-201308

main86160-68010iZRE142..JPP..LE201012-201109

9015960546

main90159-60546

9015970003

main90159-70003

9026905034

main90269-05034

6 parts on this diagram · 1 diagram in section
