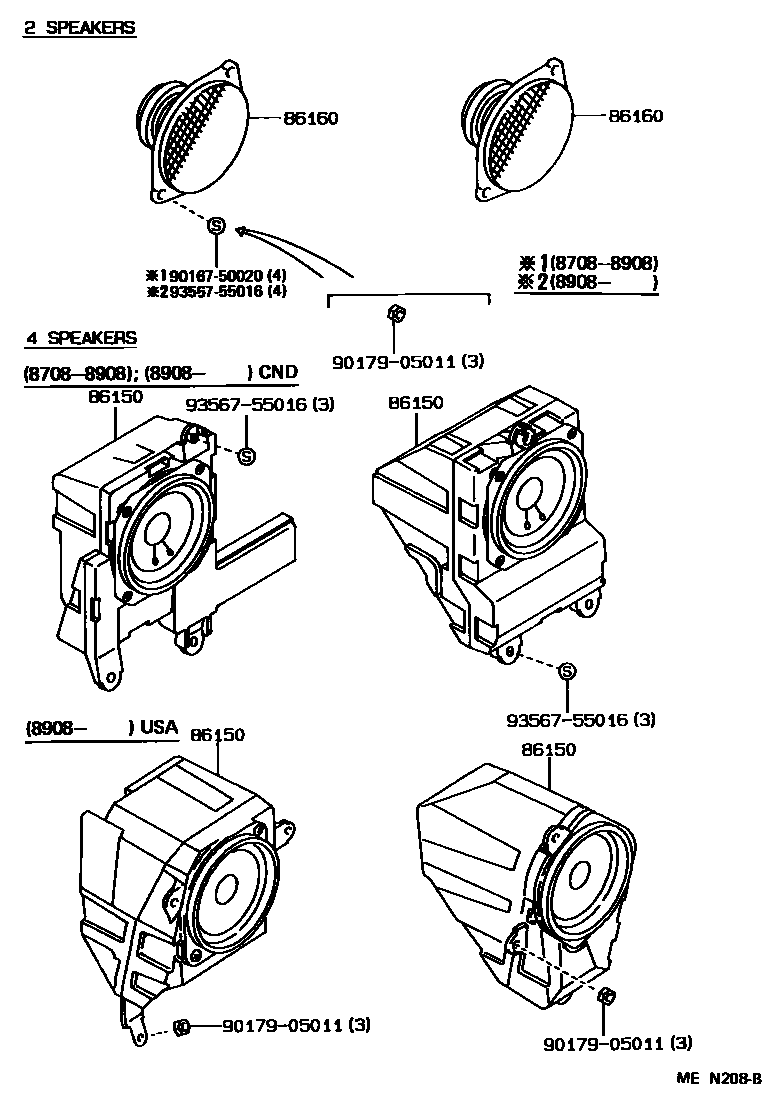

Toyota COROLLA JPP — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-12030i198911-199001

main86150-12050i198908-199009

AM/FM MPX 4SP ETR & W(AUTO REVERSE CASETTE),RH; RH

main86150-12080i198708-198808

main86150-12081i198808-198908

main86150-12090i198802-198808

main86150-12091i199001-199206

main86150-12100i198808-199009

REAR,RH

main86150-12110i198802-198808

REAR,LH

86160SPEAKER ASSY, FRONT NO.1

main86160-12280×2i198708-198808

TEN

main86160-12290×2i198908-198911

PIONEER

9016750020

main90167-50020

9017905011

main90179-05011

9356755016

main93567-55016

5 parts on this diagram · 2 diagrams in section

SPEAKER for Toyota COROLLA JPP

This section contains 9 genuine Toyota parts for the SPEAKER system of the Toyota COROLLA JPP. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR.
