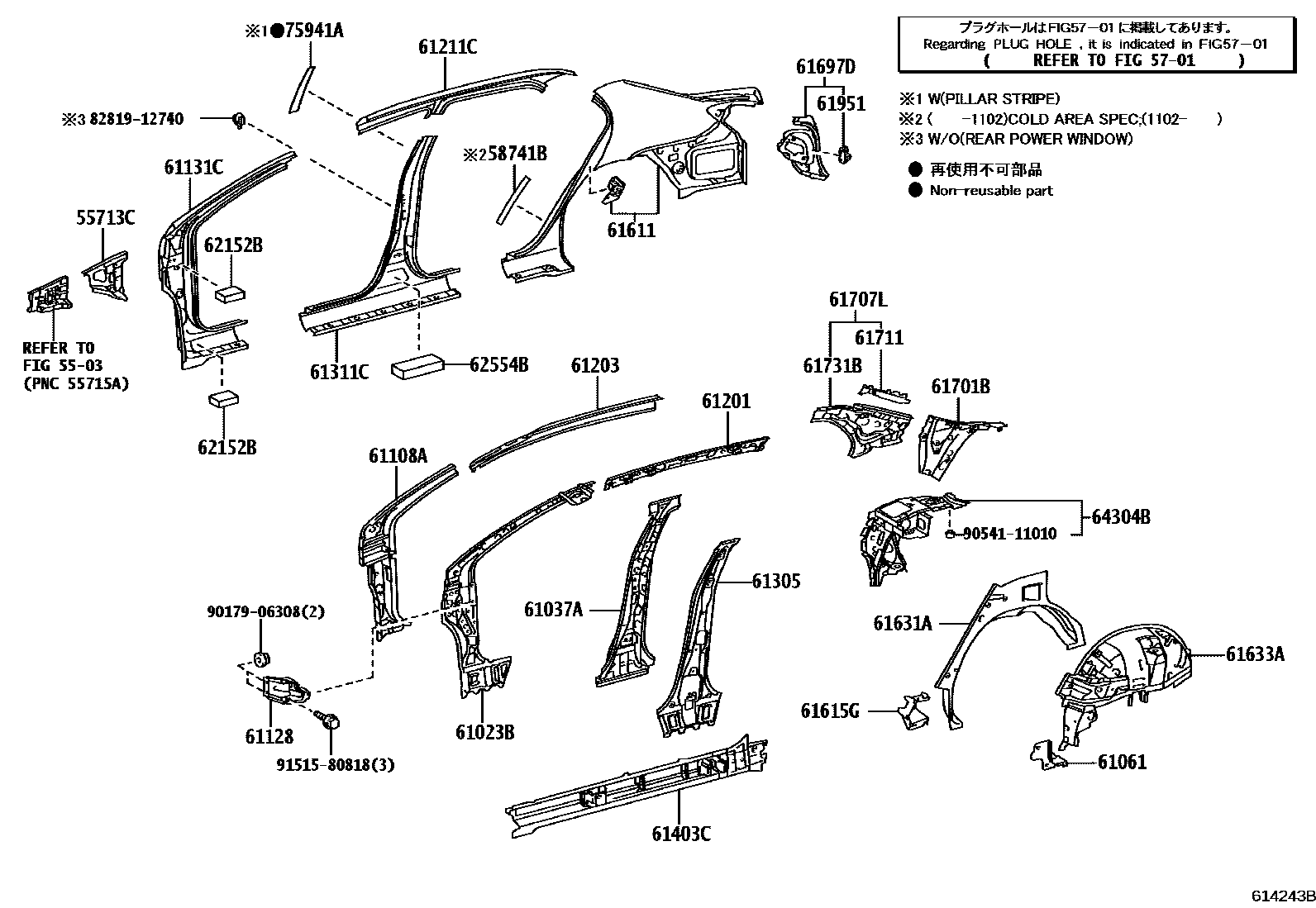

Toyota COROLLA JPP — SIDE MEMBER
5503
55713CPANEL, COWL TOP SIDE, RH
5701
58741BPROTECTOR, QUARTER PANEL, RH
GUAM,SAIPAN SPEC
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61128REINFORCEMENT, COWL SIDE PANEL, RH
61131CPILLAR, FRONT BODY, OUTER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211CRAIL, ROOF SIDE, RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61611PANEL, QUARTER, RH
61615GREINFORCEMENT, REAR BODY REAR SIDE PANEL, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61697DHOUSING, QUARTER PANEL END, RH
61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61951BRACKET, SIDE TRIM, RH
62152BPAD, COWL SIDE SILENCER, NO.2
62554BPAD, PILLAR, NO.4
75941ASTRIPE, CENTER PILLAR, RH
8281912740GROMMET, WIRING HARNESS
main82819-12740
9017906308
main90179-06308
9054111010
main90541-11010
9151580818
main91515-80818
34 parts on this diagram · 2 diagrams in section
