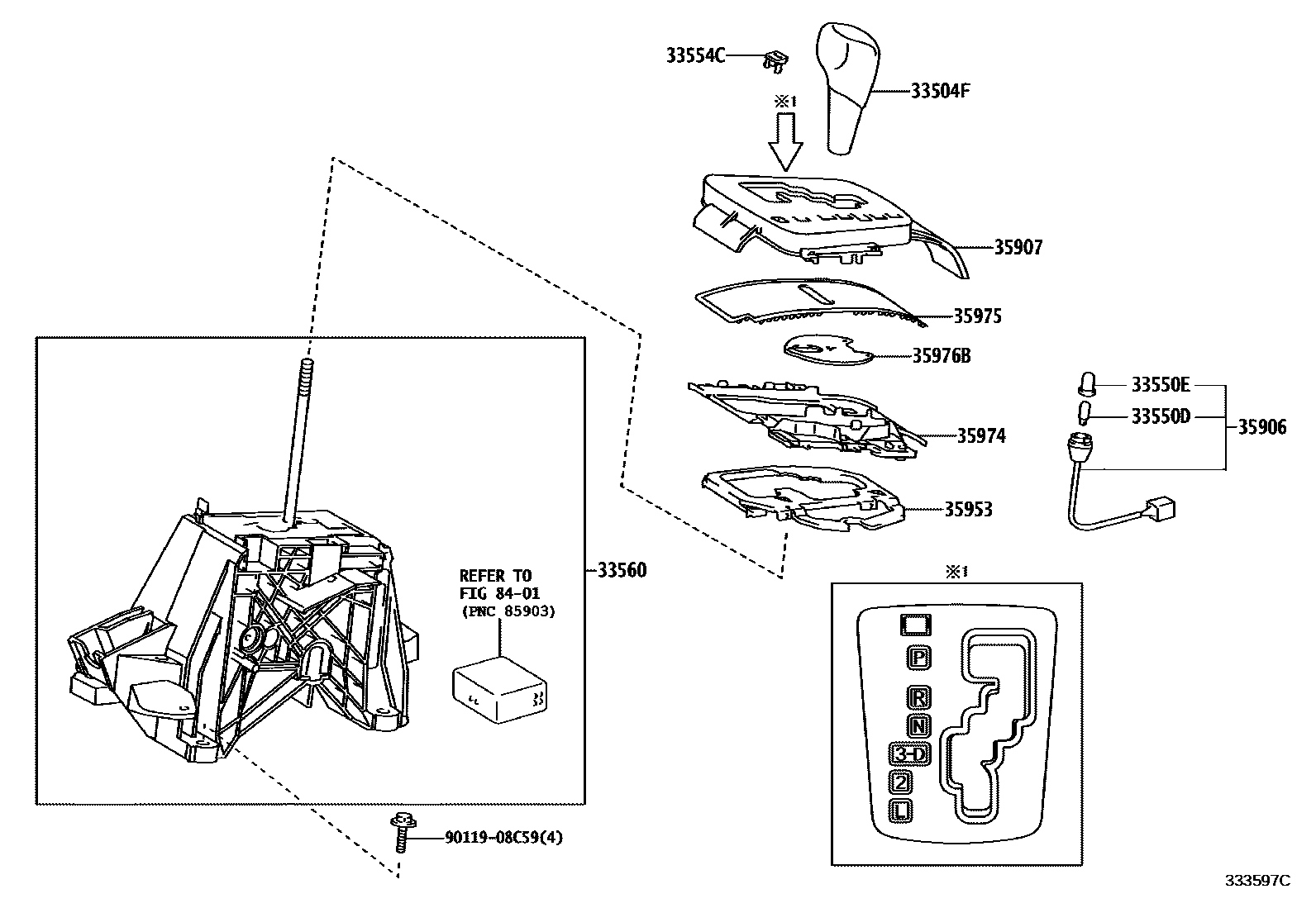

Toyota COROLLA JPP — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-42020-B0i200712-201012

DK.GRAY,TRIM1#

main33504-42020-E0i200712-201012

ASH BROWN,TRIM4#

main33504-12470-B4i201012-201308

KOREA SPEC,DK.GRAY & DARK BROWN,TRIM1#

33550DBULB, POSITION INDICATOR LAMP

main90981-11018i200712-201012

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main90339-04071i200712-201012

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-12120i201012-201308

main33554-12130i200712-201012

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-12340i200712-201012

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-12270i200712-201012

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-12280i200712-201006

main35907-12281supersedes 35907-12291i201012-201308

35953GUIDE, POSITION INDICATOR LIGHT

main35953-12140i200712-201012

35974HOUSING, POSITION INDICATOR, LOWER

main35974-12310i200712-201012

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-12400i200712-201012

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-12160i200712-201012

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C59

main90119-08C59

13 parts on this diagram · 2 diagrams in section

SHIFT LEVER & RETAINER for Toyota COROLLA JPP

This section contains 21 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota COROLLA JPP. Key components include: KNOB SUB-ASSY, SHIFT LEVER, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, COVER, SHIFT LOCK RELEASE BUTTON, UNIT ASSY, SHIFT LOCK CONTROL.
