Toyota COROLLA JPP — PARTIAL ENGINE ASSEMBLY

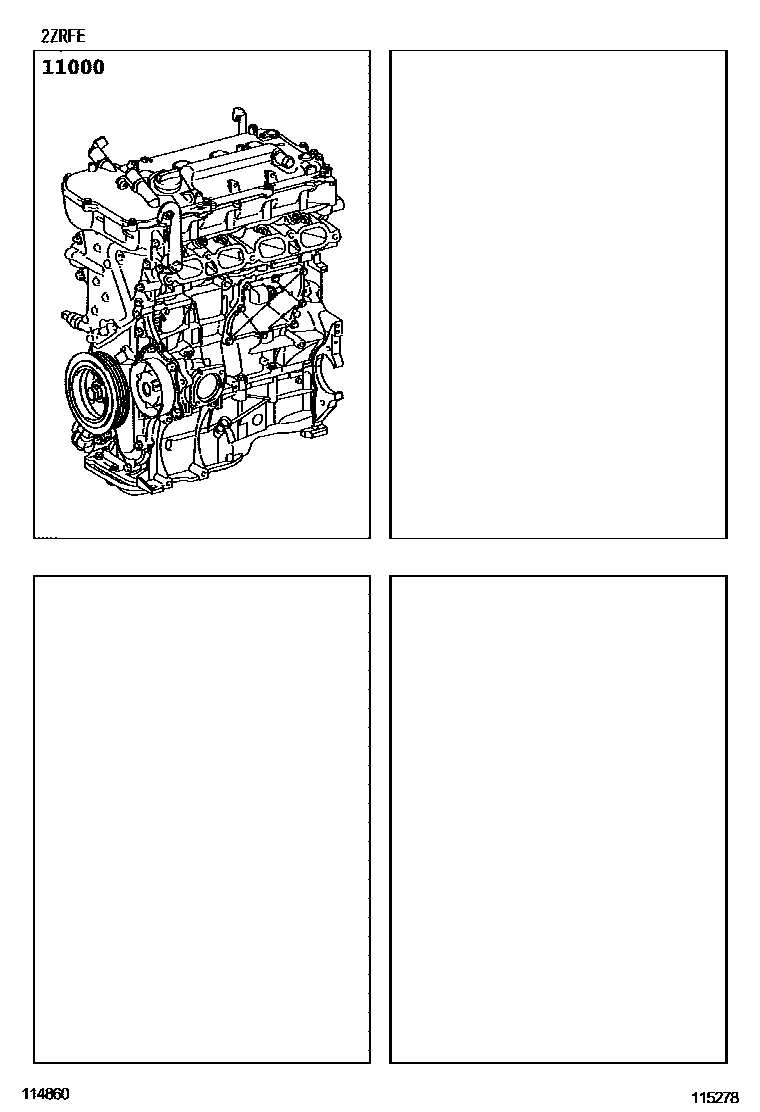

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0T050i200807-201012
*251
sub19000-0T051
sub90916-A3003
main19000-0T140i201012-201308
(L)
main19000-37310i200712-200801
main19000-37310i200801-201012
*231 OR *232
main19000-37610i201012-201308
(J)

1 parts on this diagram · 1 diagram in section
