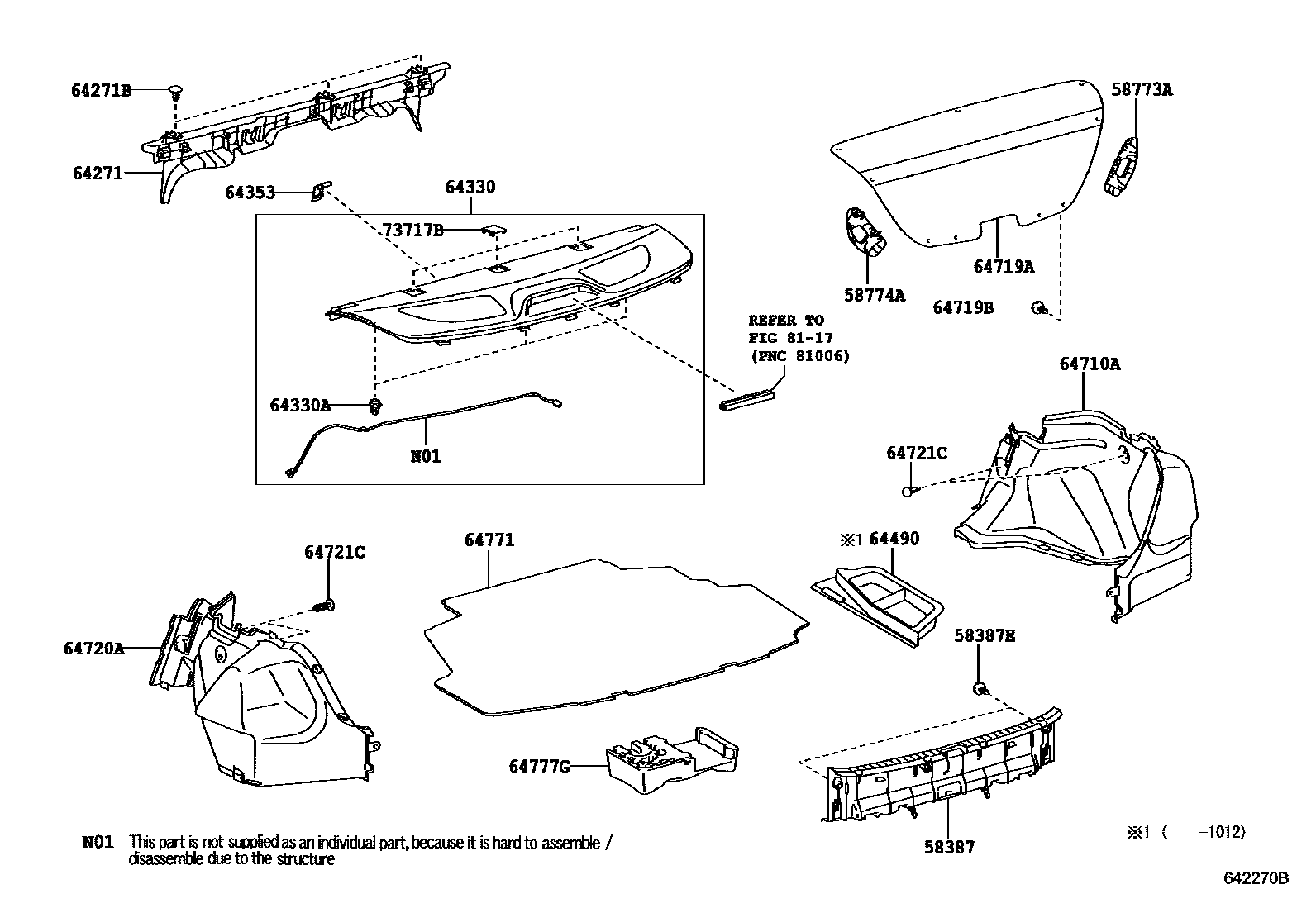

Toyota COROLLA JPP — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-12090i201012-201308

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0×2i200712-201012

BLACK

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58773-12130i200712-201012

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58774-12120i200712-201012

64271BOARD, ROOM PARTITION, NO.1

main64271-12240i200712-201012

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0×3i201012-201308

BLACK

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-12C51-B0i200712-201012

MD.GRAY,TRIM1#

main64330-12C51-B1i201012-201308

DK.GRAY,TRIM1#,4#

main64330-12C51-E0i200712-201012

ASH BROWN,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161×3i200712-201012

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-12120-B0i201012-201308

DK.GRAY,TRIM1#,4#

main64353-12120-B1i200712-201012

MD.GRAY,TRIM1#

main64353-12120-E0i200712-201012

ASH BROWN,TRIM4#

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-12020i200712-201012

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-12060-C0i200712-201006

BLACK,TRIM1#,4#

main64710-12070-C0i201012-201308

BLACK,TRIM1#,4#

main64710-12110-C0i201007-201012

BLACK,TRIM1#,4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12150-C0i200712-201012

BLACK,TRIM1#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×9i200712-201012

BLACK

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-12060-C0i200712-201006

BLACK,TRIM1#,4#

main64720-12110-C0i201007-201012

BLACK,TRIM1#,4#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-06020-C0×4i200712-201012

BLACK

64771COVER, SPARE WHEEL

main64771-12240-C0i201012-201308

BLACK,TRIM1#,4#

main64771-12290-C0i200712-201012

BLACK,TRIM1#,4#

64777GCUSHION, SPARE WHEEL

main64777-12080i200712-201012

73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-12050-B0i201012-201308

DK.GRAY,TRIM1#,4#,CENTER

main73717-12050-B1i200712-201012

MD.GRAY,TRIM1#,CENTER

main73717-12050-E0i200712-201012

ASH BROWN,TRIM4#,CENTER

main73717-12060-B0i201012-201308

DK.GRAY,TRIM1#,4#,RH

main73717-12060-B1i200712-201012

MD.GRAY,TRIM1#,RH

main73717-12060-E0i200712-201012

ASH BROWN,TRIM4#,RH

main73717-12070-B0i201012-201308

DK.GRAY,TRIM1#,4#,LH

main73717-12070-B1i200712-201012

MD.GRAY,TRIM1#,LH

main73717-12070-E0i200712-201012

ASH BROWN,TRIM4#,LH

8117CENTER STOP LAMP

→ Go to FIG 81-17

19 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota COROLLA JPP

This section contains 19 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota COROLLA JPP. Key components include: PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), COVER, LUGGAGE COMPARTMENT SIDE, RH, COVER, LUGGAGE COMPARTMENT SIDE, LH, BOARD, ROOM PARTITION, NO.1.
