Toyota COROLLA JPP — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

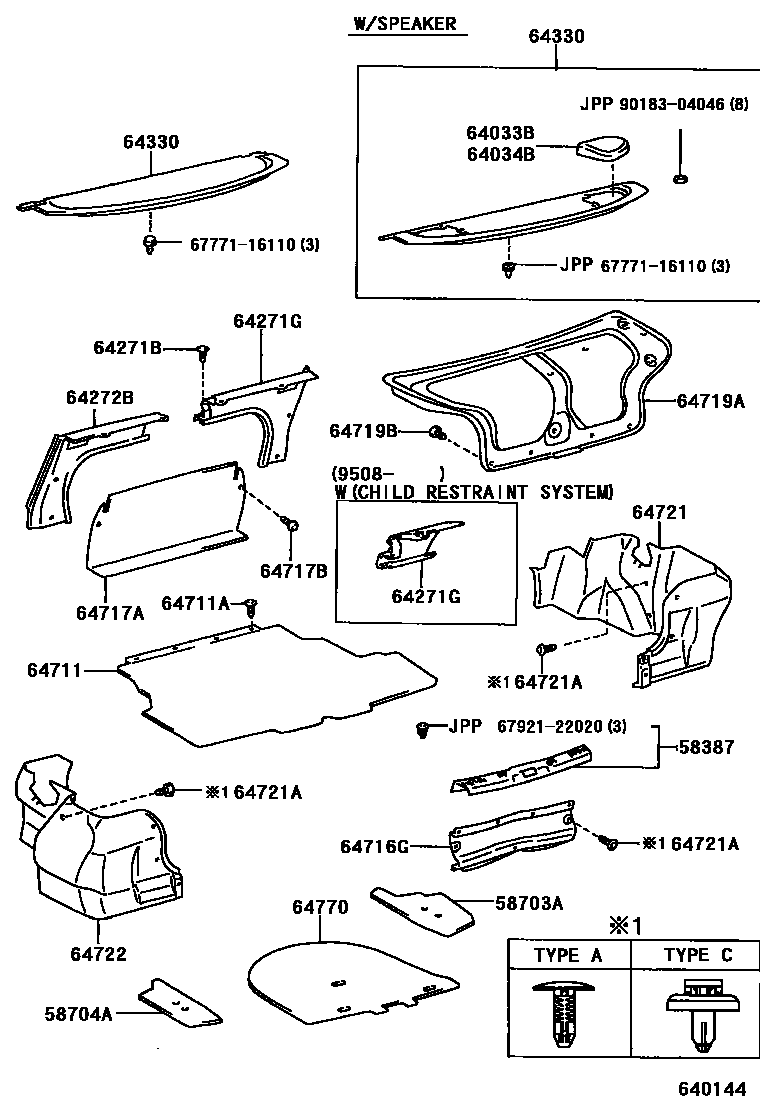

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-12010-22i199206-199505
BLACK,TRIM1#,8#,9#
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58703-12030i199206
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
main58704-12030i199206
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-12120-E0i199508-199704
OAK,TRIM4#
main64033-12120-K0i199206-199508
TAUPE,TRIM9#
main64033-12120-P0i199206-199704
SHADOW GRAY,TRIM1#
main64033-12120-W3i199206-199704
DARK BLUE,TRIM8#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
main64034-12060-E0i199508-199704
OAK,TRIM4#
main64034-12060-K0i199206-199508
TAUPE,TRIM9#
main64034-12060-P0i199206-199704
SHADOW GRAY,TRIM1#
main64034-12060-W3i199206-199704
DARK BLUE,TRIM8#
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-05020-22×5i199508-199704
BLACK,TRIM1#,4#,8#
main90467-05110-B0×5i199206-199308
SHADOW GRAY,TRIM1#
main90467-05110-C0×5i199308-199405
BLACK,TRIM1#,8#,9#
main90467-05110-J0×5i199206-199308
DARK BLUE,TRIM8#
main90467-05110-K0×5i199206-199308
TAUPE,TRIM9#
64271GBOARD, ROOM PARTITION, RH
main64271-12130-C0i199408-199505
BLACK,TRIM1#,8#; BLACK,TRIM1#,8#,9#
main64271-12130-K0i199206-199308
TAUPE,TRIM9#
main64271-12130-P0i199206-199308
SHADOW GRAY,TRIM1#
main64271-12130-W3i199206-199308
DARK BLUE,TRIM8#
64272BBOARD, ROOM PARTITION, LH
main64272-12070-C0i199508-199704
BLACK,TRIM1#,4#,8#
main64272-12070-K0i199206-199308
TAUPE,TRIM9#
main64272-12070-P0i199206-199308
SHADOW GRAY,TRIM1#
main64272-12070-W3i199206-199308
DARK BLUE,TRIM8#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-1A560-B0i199206-199704
SHADOW GRAY,TRIM1#
main64330-1A560-E1i199508-199704
OAK,TRIM4#
main64330-1A560-J1i199206-199704
DARK BLUE,TRIM8#
main64330-1A560-K0i199206-199508
TAUPE,TRIM9#
main64330-1A680-B0i199206-199505
W(SPEAKER),SHADOW GRAY,TRIM1#
main64330-1A680-E0i199508-199704
W(SPEAKER),OAK,TRIM4#
main64330-1A680-J1i199508-199704
W(SPEAKER),DARK BLUE,TRIM8#
main64330-1A680-K0i199206-199508
W(SPEAKER),TAUPE,TRIM9#
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-12290-C0i199308-199508
STANDARD PACKAGE(FX**),BLACK,TRIM1#,8#,9#
main64711-12300-C0i199206-199508
BLACK,TRIM1#,8#,9#
64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
main90467-09156-C0×4i199206-199508
BLACK,TRIM1#,8#,9#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-12130-C0i199206-199508
BLACK,TRIM1#,8#,9#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-12050-C0i199206-199305
BLACK,TRIM1#,8#,9#
main64717-12060-C0i199305-199308
BLACK,TRIM1#,8#,9#
main64717-12080-C1i199505-199508
BLACK,TRIM1#,8#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
main90467-05027×2i199206-199209
main90467-05027-22×2i199209-199308
BLACK,TRIM1#,8#,9#
main90467-05096-22×2i199308-199505
BLACK,TRIM1#,8#,9#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-12010-C0i199508-199704
BLACK,TRIM1#,4#,8#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-07138×16i199211-199402
main90467-07146×16i199206-199211
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-12110-C0i199508-199704
BLACK,TRIM1#,4#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-05096-01×4i199206-199208
BLACK,TRIM1#,8#,9#,TYPE A
main90467-05096-22×9i199505-199508
BLACK,TRIM1#,8#,9#,TYPE A; BLACK,TRIM1#,8#,TYPE A
main90467-05105-C0×5i199206-199308
BLACK,TRIM1#,8#,9#,TYPE C
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-12150-C0i199508-199704
BLACK,TRIM1#,4#,8#
64770COVER ASSY, SPARE WHEEL
main64770-12161i199206
main64770-12171i199206
STANDARD USE=SPARE TIRE
6777116110WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16110
6792122020RETAINER, FRONT DOOR SCUFF PLATE
main67921-22020
9018304046
main90183-04046

23 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota COROLLA JPP

This section contains 23 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota COROLLA JPP. Key components include: PLATE, REAR FLOOR FINISH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH.
