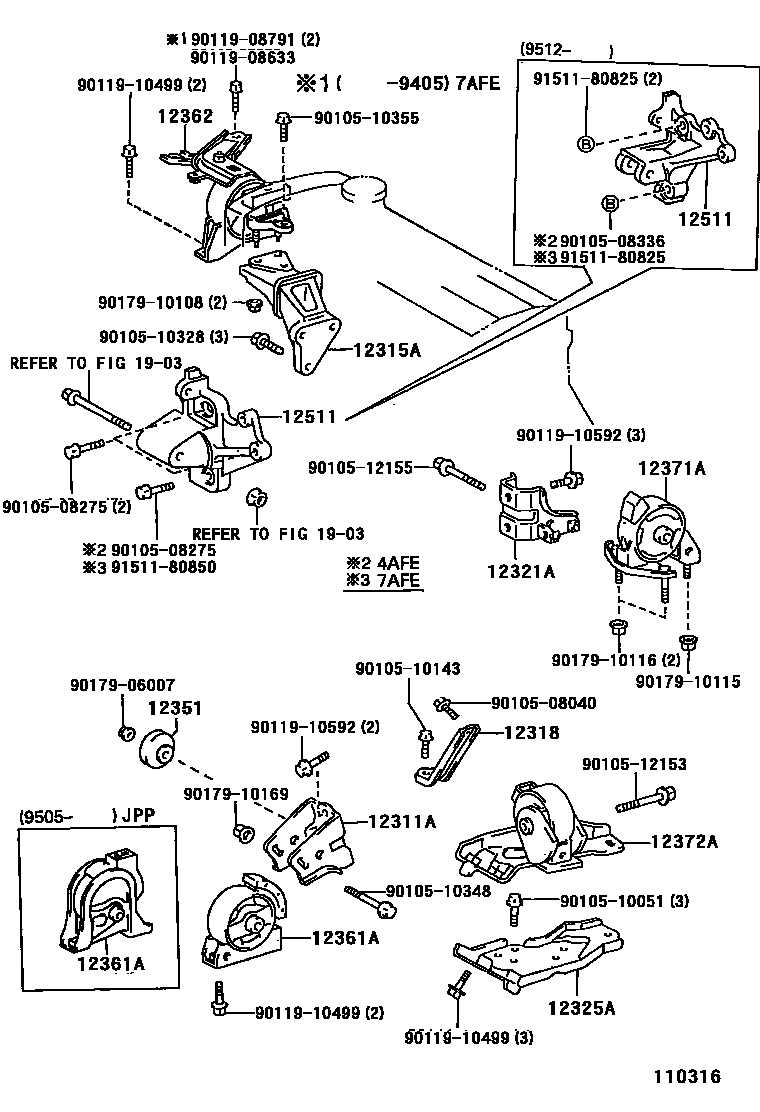

Toyota COROLLA JPP — MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12318STAY, ENGINE MOUNTING, LH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12511BRACKET, ALTERNATOR, NO.1
1903ALTERNATOR
9010508040
main90105-08040
9010508275
main90105-08275
9010508336
main90105-08336
9010510051
main90105-10051
9010510143
main90105-10143
9010510328
main90105-10328
9010510348
main90105-10348
9010510355
main90105-10355
9010512153
main90105-12153
9010512155
main90105-12155
9011908633
main90119-08633
9011908791
main90119-08791
9011910499
main90119-10499
9011910592
main90119-10592
9017906007
main90179-06007
9017910108
main90179-10108
9017910115
main90179-10115
9017910116
main90179-10116
9017910169
main90179-10169
9151180825
main91511-80825
9151180850
main91511-80850
33 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota COROLLA JPP
This section contains 34 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA JPP. Key components include: BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, LH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE).
