Toyota COROLLA JPP — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
LIGHT GRAY,TRIM1#,(L)
LIGHT TAUPE,TRIM9#,(L)
LIGHT BLUE,TRIM8#,(L)
IVORY,TRIM4#
LIGHT TAUPE,TRIM9#
GRAY,TRIM1#
LIGHT BLUE,TRIM8#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
DAY/NIGHT TYPE,IVORY,TRIM4#
DAY/NIGHT TYPE,SHADOW GRAY,TRIM1#
DAY/NIGHT TYPE,DARK BLUE,TRIM8#
DAY/NIGHT TYPE,TAUPE,TRIM9#
IVORY,TRIM4#
LIGHT TAUPE,TRIM9#
GRAY,TRIM1#
LIGHT BLUE,TRIM8#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
ELECTRIC REMOTE CONTROL DOOR MIRROR
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
ELECTRIC REMOTE CONTROL DOOR MIRROR,SUPER WHITE,040,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,BLACK METALLIC,205,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,SUPER RED 2,3E5,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,RED MICA METALLIC,3K4,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,LIGHT BEIGE ME.,4M9; ELECTRIC REMOTE CONTROL DOOR MIRROR,LIGHT BEIGE ME.,4M9,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,MD.GRAISH GREEN MCGR,6N1; ELECTRIC REMOTE CONTROL DOOR MIRROR,MD.GRAISH GREEN MCGR,6N1,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,DARK GREEN MM.,6M1; ELECTRIC REMOTE CONTROL DOOR MIRROR,DARK GREEN MM.,6M1,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,LT.PURUPLISH BLUE M.,8K1; ELECTRIC REMOTE CONTROL DOOR MIRROR,LT.PURUPLISH BLUE M.,8K1,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,DARK BLUE MICA.,8K8; ELECTRIC REMOTE CONTROL DOOR MIRROR,DARK BLUE MICA.,8K8,(L)
GRAYISH PURPLE ME.,923,(L)
SUPER WHITE 2,040
SILVER MICA METALLIC,192
BLACK METALLIC,205
ELECTRIC REMOTE CONTROL DOOR MIRROR,RED MICA METALLIC,3K4,(J)
SUPER RED 2,3E5
LIGHT BEIGE METALLIC,3K9
ROSE MICA M.GRAPHITE,3K5
ELECTRIC REMOTE CONTROL DOOR MIRROR,LIGHT BEIGE ME.,4M9
LIGHT GREEN METALLIC,6M8
ELECTRIC REMOTE CONTROL DOOR MIRROR,MD.GRAISH GREEN MCGR,6N1,(J)
ELECTRIC REMOTE CONTROL DOOR MIRROR,DARK GREEN MM.,6M1,(J)
DEEP TURQUOISE M.,747
LIGHT BLUE MICA M.,8J6
DARK BLUE MICA M.,8J7
ELECTRIC REMOTE CONTROL DOOR MIRROR,LT.PURPLISH BLUE ME.,8K1,(J)
ELECTRIC REMOTE CONTROL DOOR MIRROR,DARK BLUE MICA,8K8,(J)
GRAYISH PURPLE ME.,923,(J)
87940MIRROR ASSY, OUTER REAR VIEW, LH
ELECTRIC REMOTE CONTROL DOOR MIRROR,SUPER WHITE,040,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,BLACK METALLIC,205,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,SUPER RED 2,3E5,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,RED MICA METALLIC,3K4,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,LIGHT BEIGE ME.,4M9,(L)
MD.GRAISH GREEN MCGR,6N1,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,DARK GREEN MM.,6M1,(L)
LT.PURPLISH BLUE ME.,8K1,(L)
ELECTRIC REMOTE CONTROL DOOR MIRROR,DARK BLUE MICA,8K8,(L)
GRAYISH PURPLE ME.,923,(L)
SUPER WHITE 2,040
SILVER MICA METALLIC,192
BLACK METALLIC,205
ELECTRIC REMOTE CONTROL DOOR MIRROR,RED MICA METALLIC,3K4; ELECTRIC REMOTE CONTROL DOOR MIRROR,RED MICA METALLIC,3K4,(J)
ELECTRIC REMOTE CONTROL DOOR MIRROR,SUPER RED 2,3E5; ELECTRIC REMOTE CONTROL DOOR MIRROR,SUPER RED 2,3E5,(J)
LIGHT BEIGE METALLIC,3K9
ROSE MICA M.GRAPHITE,3K5
ELECTRIC REMOTE CONTROL DOOR MIRROR,LIGHT BEIGE ME.,4M9
LIGHT GREEN METALLIC,6M8
ELECTRIC REMOTE CONTROL DOOR MIRROR,MD.GRAISH GREEN MCGR,6N1; ELECTRIC REMOTE CONTROL DOOR MIRROR,MD.GRAISH GREEN MCGR,6N1,(J)
ELECTRIC REMOTE CONTROL DOOR MIRROR,DARK GREEN MM.,6M1,(J)
DEEP TURQUOISE M.,747
LIGHT BLUE MICA M.,8J6
DARK BLUE MICA M.,8J7
ELECTRIC REMOTE CONTROL DOOR MIRROR,LT.PURPLISH BLUE ME.,8K1; ELECTRIC REMOTE CONTROL DOOR MIRROR,LT.PURPLISH BLUE ME.,8K1,(J)
ELECTRIC REMOTE CONTROL DOOR MIRROR,DARK BLUE MICA,8K8
GRAYISH PURPLE ME.,923,(J)
9010506216
main90105-06216
9014950035
main90149-50035
9033320001
main90333-20001
9095901459
main90959-01459

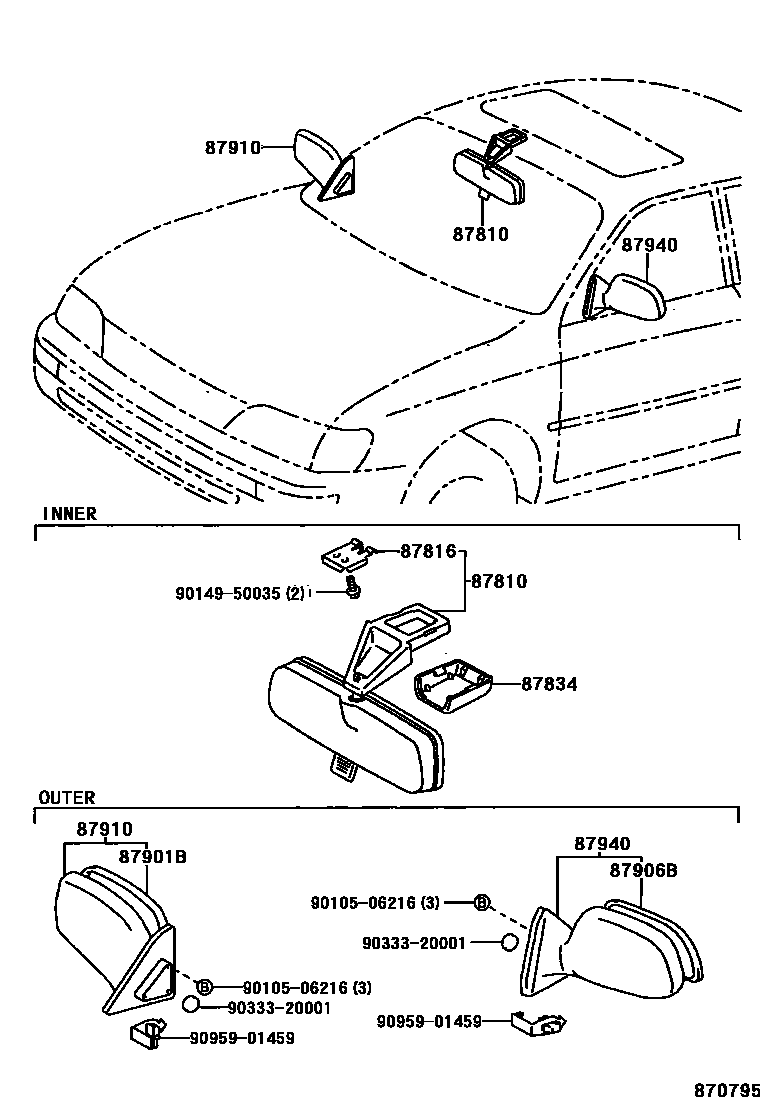

11 parts on this diagram · 1 diagram in section
MIRROR for Toyota COROLLA JPP
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota COROLLA JPP. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
