Toyota COROLLA JPP — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT BEIGE,TRIM4#
BROWN,TRIM4#
MAROON,TRIM3#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
ELECTRIC REMOTE CONTROL MIRROR
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
ELECTRIC REMOTE CONTROL MIRROR
87910MIRROR ASSY, OUTER REAR VIEW, RH
MANUAL REMOTE CONTROL MIRROR
ELECTRIC REMOTE CONTROL MIRROR
RED MICA,3H4
SILVER.M,164
LIGHT BLUE MICA,8G2
SUPER WHITE 2,040
BEIGE MICA METALLIC,4J1
RED MICA METALLIC,3K4
DEEP TURQUOIZ M.,747
87918KNOB, CONTROL OUTER MIRROR
87940MIRROR ASSY, OUTER REAR VIEW, LH
ELECTRIC REMOTE CONTROL MIRROR
RED MICA,3H4
SILVER.M,164
LIGHT BLUE MICA.M,8G2
SUPER WHITE 2,040
BEIGE MICA METALLIC,4J1
RED MICA METALLIC,3K4
DEEP TURQUOZ M.,747
87955GASKET, OUTER REAR VIEW MIRROR BASE, LOWER RH
87955ACLIP, DOOR GLASS WEATHERSTRIP
87956GASKET, OUTER REAR VIEW MIRROR BASE, LOWER LH
9015940098
main90159-40098
9017905147
main90179-05147
9331915016
main93319-15016

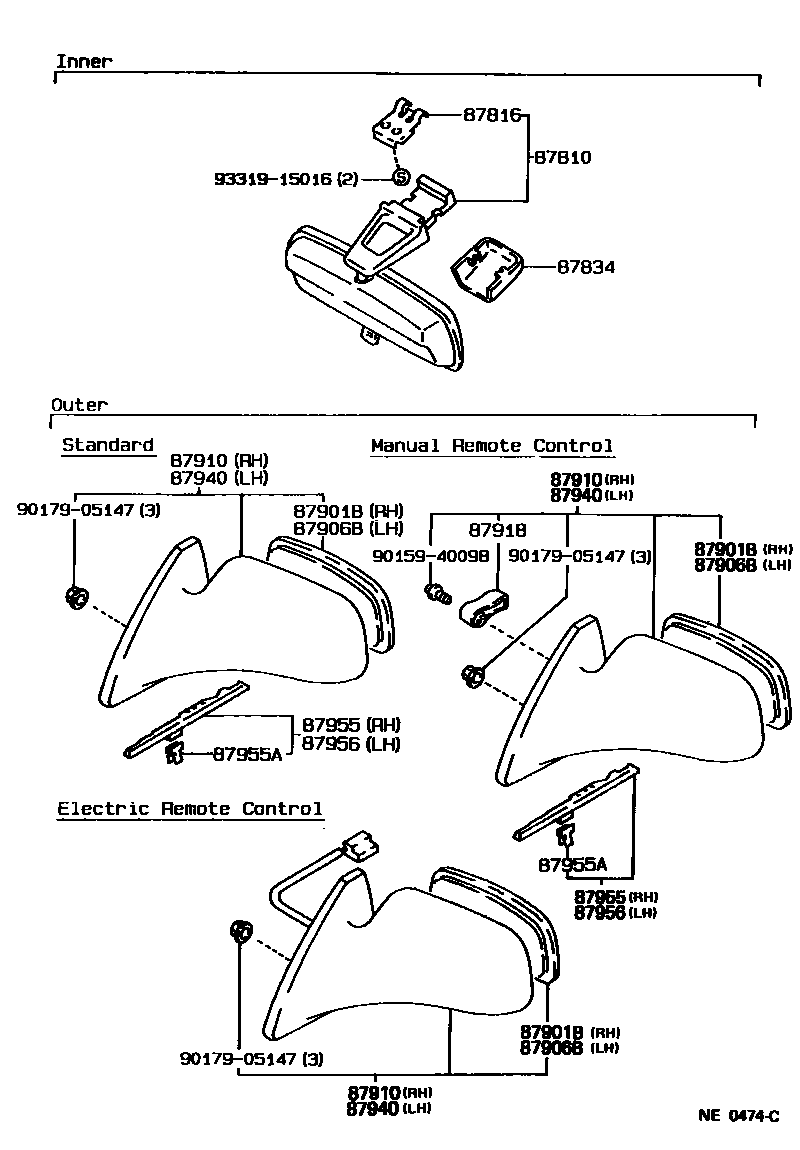

14 parts on this diagram · 1 diagram in section
MIRROR for Toyota COROLLA JPP
This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota COROLLA JPP. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
