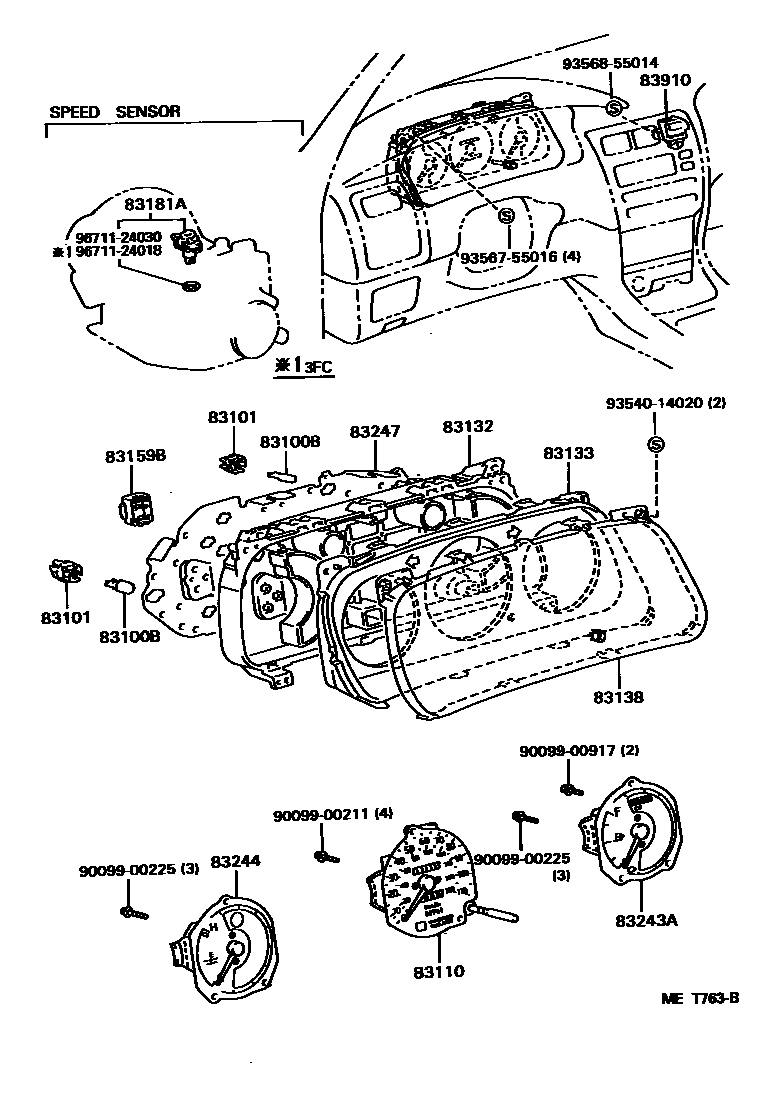

Toyota COROLLA JPP — METER

0001 1W/O(TACHOMETER) 0002 1W(TACHOMETER)

83100BBULB, COMBINATION METER, NO.1

main83109-12030×4iAE10#..JPP199206-199704

12V 3.4W,BLUE CAP

main83109-30070×4iAE10#..JPP199206-199704

14V 2.0W,W/O SOCKET

main83119-01010iAE10#..JPP199310-199704

12V 3.78W,BLUE CAP

main83119-03030×13iAE102..JPP..USA199310-199608

12V 1.4W,(L)

main83119-32010iAE10#..JPP199508-199704

14V 3.0W

main83120-02020iAE102..JPP..USA199310-199608

14V 2.0W

main83120-02030×13iAE102..JPP..USA199310-199608

14V 1.4W,W(SOCKET)

main90981-11018×13iAE102..JPP;AE101..JPP..D199206-199704

12V 1.2W W/O SOCKET,(J)

main99132-12034iAE102..JPP..5F;AE101..JPP..CND;AE102..JPP..4FC..CND;AE102..JPP..SED..4FC..USA199508-199704

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iAE10#..JPP199206-199704

12V 3.4W

main83101-14040iAE10#..JPP199206-199704

12V 1.4W

main83101-32020iAE101..JPP..USA;AE102..JPP..WG..USA199206-199508

14V 3.0W LONG LIFE

83110SPEEDOMETER ASSY

main83110-02101iAE102..JPP..N..USA199408-199608

(L)

main83110-02111iAE102..JPP..5F..USA199408-199508

(L)

main83110-1H020iAE10#..JPP..(D,N)..USA199206-199408

main83110-1H021iAE10#..JPP..(D,N)..USA199408-199608

(J)

main83110-1H030iAE101..JPP..CND;AE102..JPP..WG..CND199206-199408

main83110-1H031iAE10#..JPP..CND199508

main83110-1H090iAE102..JPP..5F..USA199206-199408

W(TACHOMETER)

main83110-1H091iAE102..JPP..5F..USA;AE102..JPP..SED..4FC..USA199508-199608

W(TACHOMETER),(J)

main83110-1H100iAE101..JPP..5F..CND;AE102..JPP..WG..5F..CND199206-199408

W(TACHOMETER)

main83110-1H101iAE101..JPP..5F..CND;AE102..JPP..WG..5F..CND199408-199508

W(TACHOMETER)

83132CASE, COMBINATION METER

main83132-1A610iAE10#..JPP199508

main83132-1A630iAE102..JPP..E;AE102..JPP..SED..CND199206-199508

W(TACHOMETER)

83133PLATE, COMBINATION METER, NO.1

main83133-1H150iAE10#..JPP199508

main83133-1H170iAE102..JPP..E;AE102..JPP..SED..CND199206-199508

W(TACHOMETER)

83138GLASS, SPEEDOMETER

main83138-1A150iAE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA199206-199508

main83138-1A170iAE102..JPP..E;AE102..JPP..SED..CND199206-199508

W(TACHOMETER)

83159BRELAY ASSY, METER

main83159-22170iAE10#..JPP199206

83181ASENSOR, SPEEDOMETER

main83181-12020iAE10#..JPP..(4FC,5F)199206

main83181-12040iAE101..JPP..3FC199206

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-1H130iAE102..JPP..5F..USA199206-199308

W(TACHOMETER)

main83243-1H131iAE102..JPP..5F..USA199308-199508

W(TACHOMETER)

main83243-1H150iAE10#..JPP..CND199206-199308

main83243-1H151iAE101..JPP..5F..CND;AE102..JPP..WG..5F..CND199308-199408

W(TACHOMETER)

main83243-1H290iAE101..JPP..USA;AE102..JPP..WG..USA199206-199308

SECURITY SYSTEM

main83243-1H291iAE101..JPP..USA;AE102..JPP..WG..USA199308-199508

SECURITY SYSTEM

main83243-1H310iAE101..JPP..USA199206-199308

main83243-1H311iAE101..JPP..USA199308-199608

main83243-1H330iAE102..JPP..N..USA199206-199308

main83243-1H331iAE102..JPP..N..USA199308-199608

main83243-1H610iAE101..JPP..5F..CND;AE102..JPP..WG..5F..CND199408-199508

W(TACHOMETER)

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-1E010iAE102..JPP..SED..4FC;AE10#..JPP..(3FC,5F)..N199508

W(TACHOMETER)

main83244-1E130iAE10#..JPP199508

83247PLATE, METER CIRCUIT

main83149-12010iAE102..JPP..WG..4FC..USA199508-199608

SECURITY SYSTEM

main83149-12030iAE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA199206-199508

main83247-1H650iAE102..JPP..SED..4FC;AE10#..JPP..(3FC,5F)..N199508

W(TACHOMETER)

main83247-1H670iAE102..JPP..WG..5F..USA199206-199508

SECURITY SYSTEM & W(TACHOMETER)

83910CLOCK ASSY

main83910-12470iAE10#..JPP..N199508

9009900211

main90099-00211

9009900225

main90099-00225

9009900917

main90099-00917

9354014020

main93540-14020

9356755016

main93567-55016

9356855014

main93568-55014

9671124018

main96711-24018

9671124030

main96711-24030

20 parts on this diagram · 2 diagrams in section
