Toyota COROLLA JPP — METER

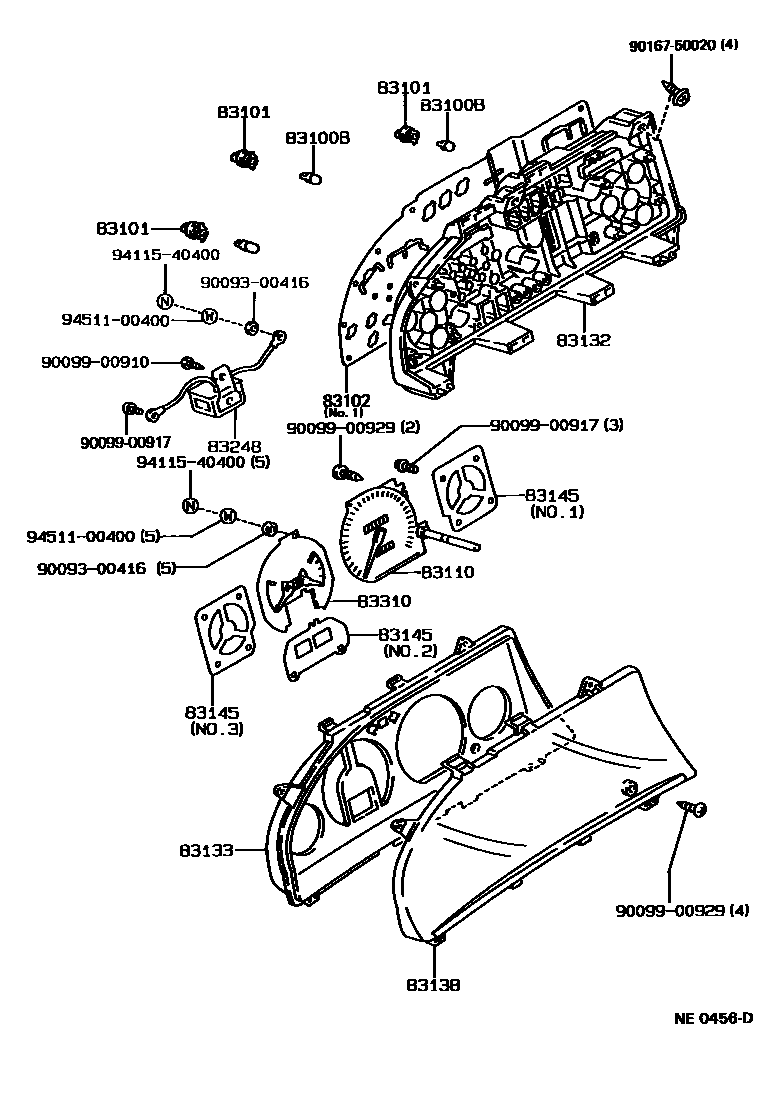

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main83101-20080×3i198809-198908
12V 1.4W,W(SOCKET)
main83109-12030i198802-198908
12V 3.4W,BLUE CAP
main90981-11018×8i198809-199206
12V 1.2W W/O SOCKET
main99132-12034×8i198908-199206
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×11i198908-199206
12V 3.4W BULB
main83101-14040×8i198809-199206
14V 1.4W BULB
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
main83247-13090i198908-199009
NO.1
main83247-1E320i198908-199206
NO.1
main83247-1E600i198808-198908
W(TACHOMETER),NO.1
main83247-1E820i198808-199206
W(ANTI-THEFT DEVICE SYSTEM & TACHOMETER),NO.1
main83247-1E860i198708-199206
W(ANTI-THEFT DEVICE SYSTEM),NO.2
main83247-1E880i198708-199206
W(ANTI-THEFT DEVICE SYSTEM),NO.1
83110SPEEDOMETER ASSY
main83110-1E010i198708-198908
main83110-1E011i198908-199206
main83110-1E020i198708-198908
main83110-1E021i198908-199206
main83110-1E030i198708-198908
main83110-1E031i198908-199206
W(TACHOMETER)
main83110-1E040i198808-198908
W(TACHOMETER)
main83110-1E041i198908-199206
W(TACHOMETER)
83132CASE, COMBINATION METER
main83132-1A230i198708-199206
main83132-1A270i198708-199206
83133PLATE, COMBINATION METER, NO.1
main83133-1A750i198708-199206
main83133-1E010i198708-198908
main83133-1E030i198808-198908
CALIFORNIA SPEC & W(TACHOMETER)
main83133-1E390i198808-198908
W(ANTI-THEFT DEVICE SYSTEM & TACHOMETER)
main83133-1E391i198908-199206
W(ANTI-THEFT DEVICE SYSTEM & TACHOMETER)
main83133-1E450i198708-199206
W(ANTI-THEFT DEVICE SYSTEM)
main83133-1E790i198908-199206
W(TACHOMETER)
83138GLASS, SPEEDOMETER
main83138-1A030i198708-199206
83145LENS, METER, NO.1
main83145-13090i198802-199009
NO.3
main83145-13130i198802-199009
NO.1
main83145-1E570i198708-199206
NO.3
main83145-1E690i198708-198908
NO.2
main83145-1E750i198908-199206
NO.2
main83145-1E770i198708-198908
NO.1
main83145-1E790i198708-199206
NO.1
83248CHIME, SPEED WARNING
main86640-12120i199008-199206
83310GAGE ASSY, FUEL RECEIVER
main83243-1A250i198808-198908
W(TACHOMETER)
main83243-1A251i198908-199206
W(TACHOMETER)
main83243-1A310i198708-198802
main83243-1A311i198908-199112
main83243-1A490i198802-198908
CALIFORNIA SPEC
main83243-1H490i199112-199206
9009300416
main90093-00416
9009900910
main90099-00910
9009900917
main90099-00917
9009900929
main90099-00929
9016750020
main90167-50020
9411540400
main94115-40400
9451100400
main94511-00400

17 parts on this diagram · 3 diagrams in section
