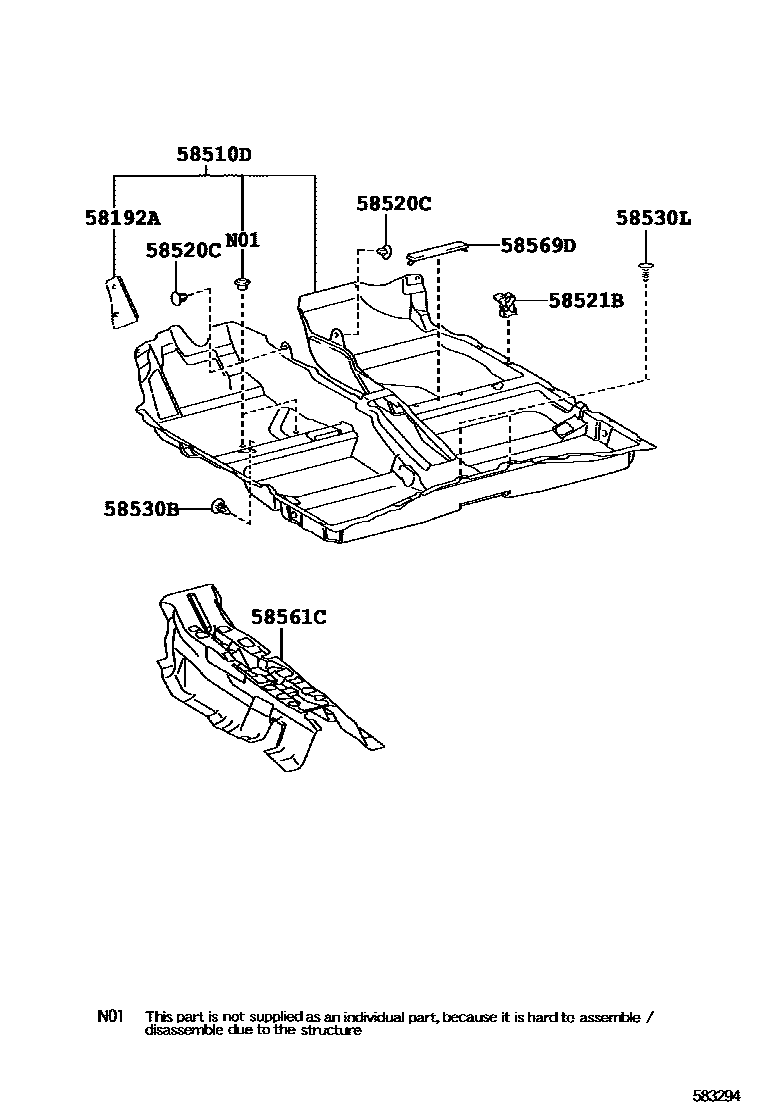

Toyota COROLLA JPP — MAT & CARPET

58192AFOOTREST, FRONT FLOOR, LH

main58191-12170i201012-201308

58510DCARPET ASSY, FLOOR, FRONT

main58510-12E30-B2supersedes 58510-12E40-B3i200712-201004

COLD AREA SPEC,DK. GREY,TRIM1#

main58510-12E30-E1supersedes 58510-12E40-E1i200712-201004

COLD AREA SPEC,GREGE,TRIM4#

main58510-12E31-B2supersedes 58510-12E41-B3i201012-201102

COLD AREA SPEC,DK.GRAY,TRIM1#

main58510-12E31-E1supersedes 58510-12E41-E1i201004-201012

COLD AREA SPEC,GREGE,TRIM4#

main58510-12E41-B3i201102-201308

GUAM,SAIPAN SPEC,DK.GRAY,TRIM1#

main58510-12E41-E1i201102-201308

GUAM,SAIPAN SPEC,GREGE,TRIM40

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B0×2i201012-201308

LT.GRAY

main90467-05164-B2×2i200712-201012

DK.GRAY

58521BHOOK, FLOOR CARPET

main58521-12140×6i200712-201012

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-C0i200712-201012

BLACK

58530LCLIP, FLOOR CARPET, CENTER

main90467-07049-B7×2i200712-201012

DK.GRAY

main90467-07049-C0×2i201012-201308

BLACK

58561CSILENCER, FRONT FLOOR, NO.1

main58561-12060i200712-201012

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-B0i200712-201012

DK.GRAY

8 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota COROLLA JPP

This section contains 8 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA JPP. Key components include: FOOTREST, FRONT FLOOR, LH, CARPET ASSY, FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), HOOK, FLOOR CARPET.
