Toyota COROLLA JPP — MAT & CARPET

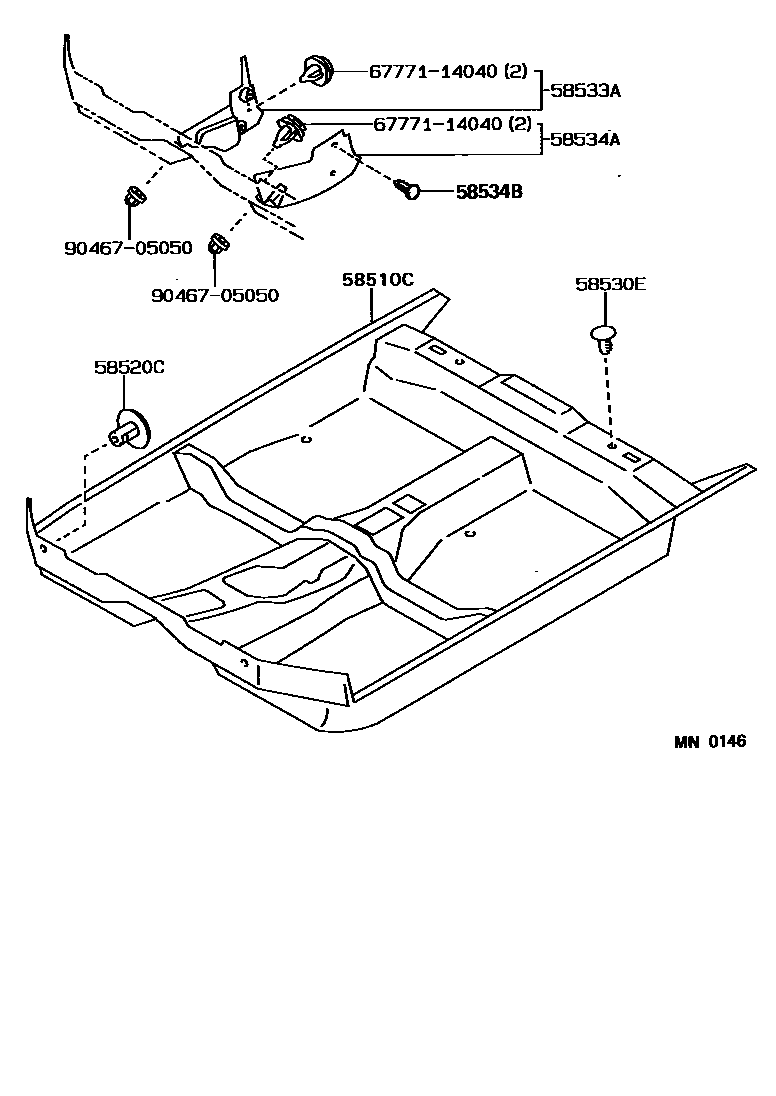

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-1A030-02i198708-198908
MAROON,TRIM3#
main58510-1A030-03i198708-198908
SHADOW GRAY,TRIM1#
main58510-1A030-04i198708-198908
DARK BLUE,TRIM8#
main58510-1A030-05i198708-198908
DARK BEIGE,TRIM4#
main58510-1A140-02i198708-199206
MAROON,TRIM3#
main58510-1A140-03i198708-199206
SHADOW GRAY,TRIM1#
main58510-1A140-04i198708-198908
COLD SPEC,DARK BLUE,TRIM8#
main58510-1A140-05i198708-198908
COLD SPEC,DARK BEIGE,TRIM4#; DARK BEIGE,TRIM4#
main58510-1A140-06i198908-199206
BROWN,TRIM4#
main58510-1A170-02i199005-199206
MAROON,TRIM3#
main58510-1A170-03i199005-199206
SHADOW GRAY,TRIM1#
main58510-1A170-04i199202-199206
DX PACAGE,DARK BLUE,TRIM8#
main58510-1A170-06i199202-199206
DX PACAGE,BROWN,TRIM4#
main58510-1A180-02i198708-198908
MAROON,TRIM3#
main58510-1A180-03i198708-198908
SHADOW GRAY,TRIM1#
main58510-1A180-04i198708-198908
DARK BLUE,TRIM8#
main58510-1A180-05i198708-198908
DARK BEIGE,TRIM4#
main58510-1A190-02i198708-198908
COLD SPEC,MAROON,TRIM3#
main58510-1A190-03i198708-198908
COLD SPEC,SHADOW GRAY,TRIM1#
main58510-1A190-04i198708-198908
COLD SPEC,DARK BLUE,TRIM8#
main58510-1A190-05i198708-198908
COLD SPEC,DARK BEIGE,TRIM4#; DARK BEIGE,TRIM4#
main58510-1A190-06i198908-199206
BROWN,TRIM4#
main58510-1A200-02i198908-199206
MAROON,TRIM3#
main58510-1A200-03i198908-199206
SHADOW GRAY,TRIM1#
main58510-1A200-04i198908-199206
DARK BLUE,TRIM8#
main58510-1A200-06i198908-199206
BROWN,TRIM4#
main58510-1A280-02i199202-199206
COLD SPEC & DX PACAGE,MAROON,TRIM3#
main58510-1A280-03i198908-199206
COLD SPEC,SHADOW GRAY,TRIM1#
main58510-1A280-04i198908-199206
COLD SPEC,DARK BLUE,TRIM8#
main58510-1A280-06i199202-199206
COLD SPEC & DX PACAGE,BROWN,TRIM4#
main58510-1A550-02i198809-198908
MAROON,TRIM3#
main58510-1A550-03i198802-198908
SHADOW GRAY,TRIM1#
main58510-1A550-04i198802-198908
DARK BLUE,TRIM8#
main58510-1A550-05i198802-198908
DARK BEIGE,TRIM4#
main58510-1A560-02i198808-199008
MAROON,TRIM3#
main58510-1A560-03i198802-198908
COLD SPEC,SHDOW GRAY,TRIM1#
main58510-1A560-04i198802-199009
DARK BLUE,TRIM8#
main58510-1A560-05i198802-198908
COLD SPEC,DARK BEIGE,TRIM4#; DARK BEIGE,TRIM4#
main58510-1A560-06i198908-199009
BROWN,TRIM4#
main58510-1A610-03i198802-198908
SHADOW GRAY,TRIM1#
main58510-1A610-04i198802-198908
DARK BLUE,TRIM8#
main58510-1A610-05i198802-198908
DARK BEIGE,TRIM4#
main58510-1A630-03i198802-199009
SHADOW GRAY,TRIM1#
main58510-1A630-04i198802-198908
COLD SPEC,DARK BLUE,TRIM8#
main58510-1A630-05i198802-198908
COLD SPEC,DARK BEIGE,TRIM4#; DARK BEIGE,TRIM4#
main58510-1A630-06i198908-199009
BROWN,TRIM4#
main58510-1A650-02i198908-199206
COLD SPEC,MAROON,TRIM3#
main58510-1A650-03i198908-199206
COLD SPEC,SHADOW GRAY,TRIM1#
main58510-1A650-04i198908-199206
COLD SPEC,DARK BLUE,TRIM8#
main58510-1A650-06i198908-199206
COLD SPEC,RED,TRIM4#
main58510-1A660-02i198908-199008
MAROON,TRIM3#
main58510-1A660-03i198908-199009
SHADOW GRAY,TRIM1#
main58510-1A660-04i198908-199009
DARK BLUE,TRIM8#
main58510-1A660-06i198908-199009
BROWN,TRIM4#
main58510-1A670-03i198908-199009
SHADOW GRAY,TRIM1#
main58510-1A670-04i198908-199009
DARK BLUE,TRIM8#
main58510-1A670-06i198908-199009
BROWN,TRIM4#
main58510-1A680-02i198908-199008
COLD SPEC,MAROON,TRIM3#
main58510-1A680-03i198908-199009
COLD SPEC,SHADOW GRAY,TRIM1#
main58510-1A680-04i198908-199009
COLD SPEC,DARK BLUE,TRIM8#
main58510-1A680-06i198908-199009
COLD SPEC,BROWN,TRIM4#
main58510-1A690-03i198908-199009
COLD SPEC,SHADOW GRAY,TRIM1#
main58510-1A690-04i198908-199009
COLD SPEC,DARK BLUE,TRIM8#
main58510-1A690-06i198908-199009
COLD SPEC,BROWN,TRIM4#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06068-11×2i198908-198912
BLACK,TRIM1#,3#,4#,8#
main90467-09068-01×2i198708-198908
BLACK,TRIM1#,3#,4#,8#; BLACK,TRIM1#,4#,8#
main90467-09068-03×2i198710-198908
SHADOW GRAY,TRIM1#
main90467-09068-05×2i198710-198809
DARK BEIGE,TRIM4#
main90467-09068-11×2i198912-199008
BLACK,TRIM1#,3#,4#,8#; BLACK,TRIM1#,4#,8#
main90467-09068-14×2i198710-198809
DARK BLUE,TRIM8#
main90467-09068-E0×2i198901-198908
DARK BEIGE,TRIM4#
main90467-09068-J0×2i198809-198901
DARK BLUE,TRIM8#
58530ECLIP(FOR FRONT FLOOR REAR CARPET)
main90467-06049-01×2i198809-198908
BLACK,TRIM1#,3#,4#,8#; BLACK,TRIM1#,3#,8#
main90467-06049-03×2i198708-198908
GRAY,TRIM1#
main90467-06049-12×2i198708-198809
MAROON,TRIM3#
main90467-06049-15×2i198708-198809
DARK BEIGE,TRIM4#
main90467-06049-16×2i198908-198909
BROWN,TRIM4#
main90467-06049-24×2i198708-198809
DARK BLUE,TRIM8#
main90467-06049-25×2i198802-198908
LIGHT BEIGE,TRIM4#
main90467-06049-26×2i198908-199009
LIGHT BROWN,TRIM4#
main90467-06049-34×2i198802-199009
LIGHT BLUE,TRIM8#
main90467-06049-43×2i198802-199009
LIGHT GRAY,TRIM1#
main90467-06049-B0×2i198908-199206
SHADOW GRAY,TRIM1#
main90467-06049-D0×2i198809-199206
MAROON,TRIM3#
main90467-06049-E0×2i198809-198908
DARK BEIGE,TRIM4#
main90467-06049-E4×2i198909-199206
BROWN,TRIM4#
main90467-06049-J1×2i198809-199206
DARK BLUE,TRIM8#
58533ACOVER, FLOOR CARPET, CENTER RH
main58533-12010i198708-199206
main58533-12050i198802-199009
58534AMAT, TRANSMISSION COVER
main58534-12020i198708-199206
58534BCLIP(FOR FLOOR CARPET CENTER COVER)
main90467-10034-01i198708-199008
BLACK,TRIM1#,3#,4#,8#; BLACK,TRIM1#,4#,8#
6777114040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-14040
9046705050
main90467-05050

8 parts on this diagram · 3 diagrams in section

MAT & CARPET for Toyota COROLLA JPP

This section contains 21 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA JPP. Key components include: BOARD ASSY, DECK, CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), CLIP(FOR FRONT FLOOR REAR CARPET), COVER, FLOOR CARPET, CENTER RH.
