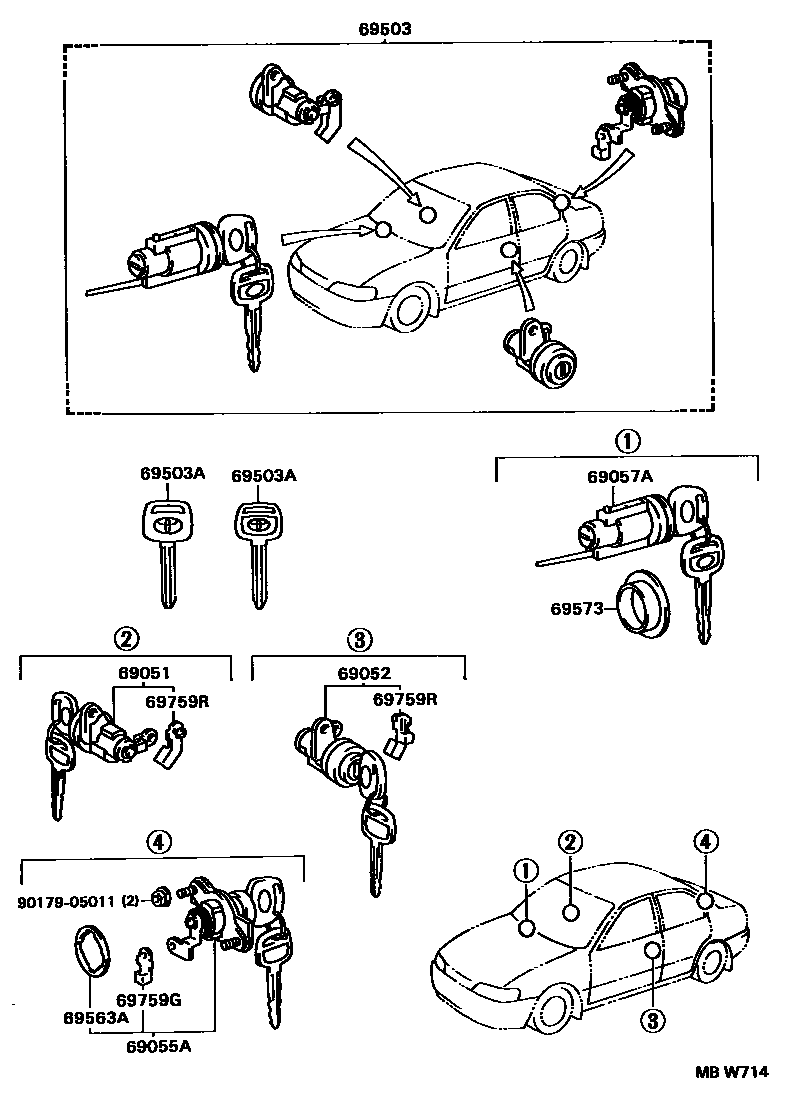

Toyota COROLLA JPP — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
W(ANTI-THEFT DEVICE)
W(ANTI-THEFT DEVICE)
69052CYLINDER & KEY SET, DOOR LOCK, LH
W(ANTI-THEFT DEVICE)
W(ANTI-THEFT DEVICE)
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
W(ANTI-THEFT DEVICE)
W(ANTI-THEFT DEVICE)
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-12250iAE101..JPP..CND;AE102..JPP..SED..N..USA; AE102..JPP..E;AE102..JPP..SED..CND199206-199508
W(TILT STEERING)
W(TILT STEERING)
69503CYLINDER SET, LOCK
W(ANTI-THEFT DEVICE)
W(TILT STEERING)
W(TILT STEERING & ANTI-THEFT DEVICE)
W(ANTI-THEFT DEVICE)
main69005-1A640iAE101..JPP..CND;AE102..JPP..SED..N..USA; AE102..JPP..E;AE102..JPP..SED..CND199206-199508
W(TILT STEERING)
W(ANTI-THEFT DEVICE)
W(TILT STEERING)
69503AKEY, BLANK
MASTER KEY,W(*68)
MASTER KEY
SUB KEY
MASTER KEY
MASTER KEY,W(*68)
69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69573PAD, IGNITION SWITCH LOCK CYLINDER
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
RH
LH
9017905011
main90179-05011
11 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota COROLLA JPP
This section contains 13 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA JPP. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK.
