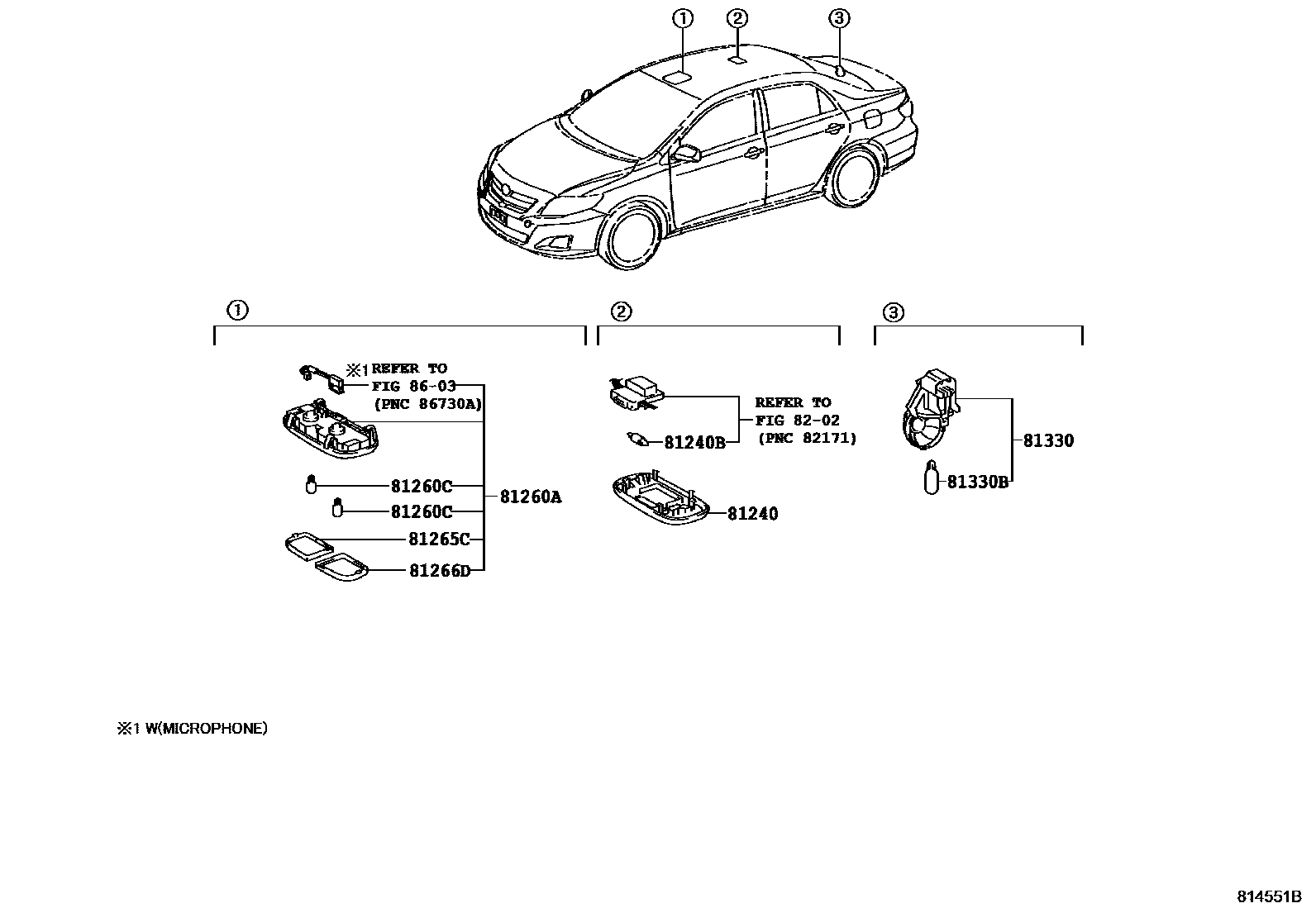

Toyota COROLLA JPP — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B1i200712-201012

LT.GRAY,TRIM1#

main81240-52040-E0i201012-201308

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i201012-201308

12V 8W

81260ALAMP ASSY, MAP

main81260-52030-B1supersedes 81260-52051-B1i201012-201308

LT.GRAY,TRIM1#

main81260-52030-E0supersedes 81260-52051-E0i201012-201308

GREGE,TRIM4#

main81260-52051-B1i201112-201308

AUDIO-AM/FM CD 6SPEAKER(MULTI),LT.GRAY,TRIM1#; LT.GRAY,TRIM1#

main81260-52051-E0supersedes 81260-52030-E0i201012-201112

AUDIO-AM/FM SDARS CD BLUETOOTH 6SPEAKER(EXTRA),GREGE,TRIM4#; AUDIO-AVN 6SPEAKER(EXTRA),GREGE,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-11062×2i200712-201012

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-52020i201012-201308

81266DLENS, MAP LAMP, NO.2

main81266-52020i200712-201012

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020i201012-201308

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020i201012-201308

12V 3.8W

8202WIRING & CLAMP

→ Go to FIG 82-02

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

10 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota COROLLA JPP

This section contains 10 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA JPP. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, MAP, BULB(FOR MAP LAMP), LENS, MAP LAMP, NO.1.
